LIGHTWEIGHT NEW CUB

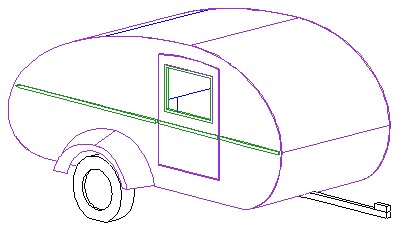

This is a new version of the New Cub design, intended for European use, so it's as light as possible and has smaller wheels (145R12).

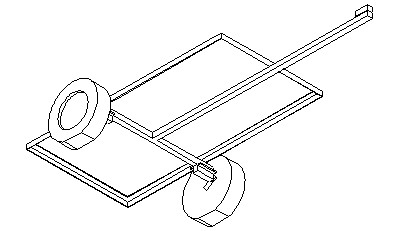

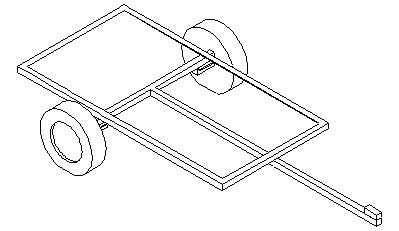

The frame consists of a drawbar (tongue) and axle tube in 2x2" square tubeā€¦

and a frame under the perimeter of the body in 2x2" angle.

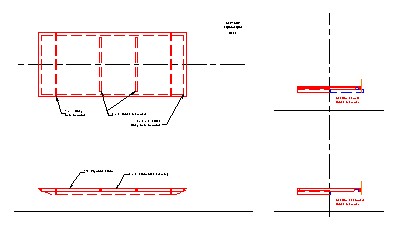

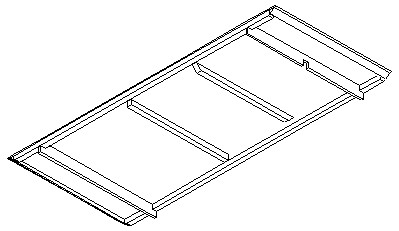

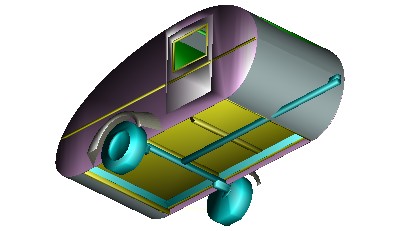

The plywood base has 2x2" framing around the edge and two cross members.

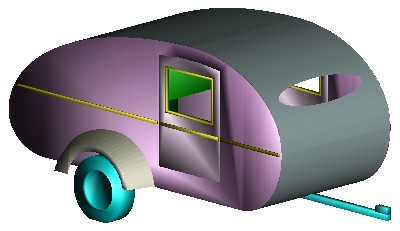

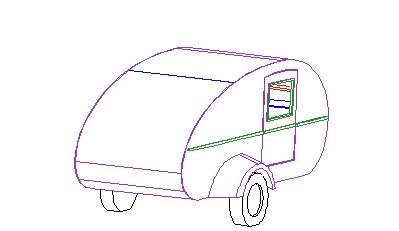

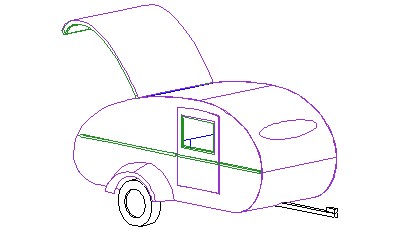

Here is an optional (elliptical, of course) window in the front panel.

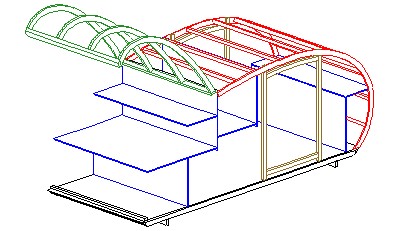

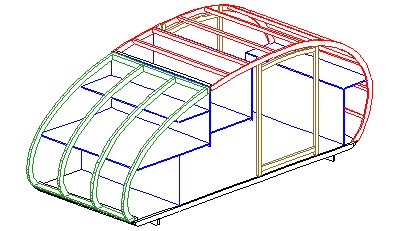

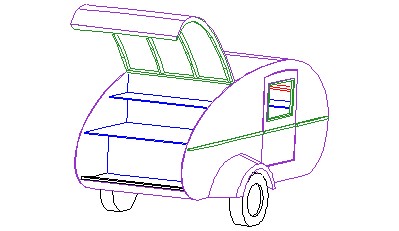

The kitchen is shown without any cupboards or fittings.

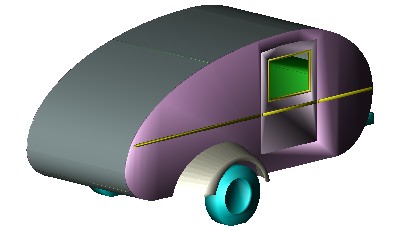

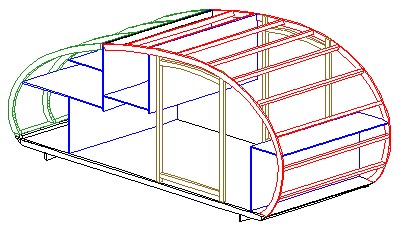

3-D DESIGN

Action

The 3-D model as a zipped .dxf file

Download



Full 2-D Design in a Single File

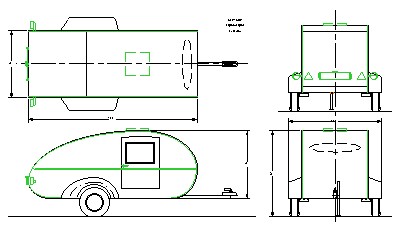

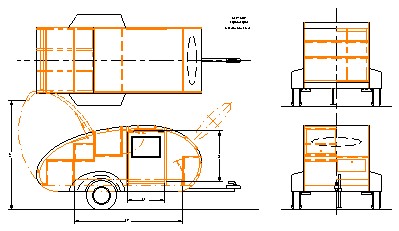

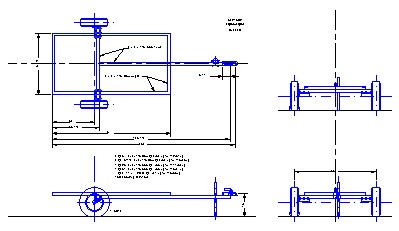

This is a single file with different parts of the trailer in their own layer.  The layers are illustrated below - click on the graphic to view a .pdf file

 Each 'system' layer has a corresponding layer (eg, chassis2 for chassis) that contains ancillary information, such as text, dimensions, etc.

2-D DESIGN

Action

All the drawings as layers of a zipped .dxf file

Download

View all the layers of the drawing in a single .pdf file

View
