ceiling duplex

ceiling duplex


Tue Dec 13, 2011 7:39 pm
277
User avatar
PcHistorian
The 300 Club

Posts: 354
Images: 198
Joined: Fri Dec 09, 2011 1:06 pm
Location: S.E. Michigan

Image Description

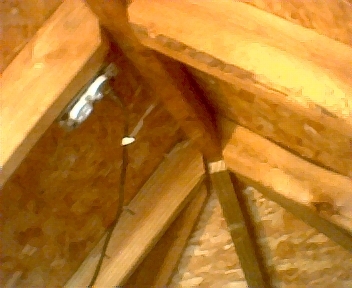

The ceiling duplex has the outlets separated. The lower outlet is "On Always" and the upper outlet is on a 3-way switch circuit to fore and aft light switches. (Entrance and the bedroom) The forward 3-way switch is lighted. (that's the bedroom light switch.) I couldn't get the back-entrance 3-way lighted with a double switch arrangement, where there was at least one 3-way switch in the double.
