Show us your awning

Anything to do with mechanical, construction etc

Show us your awning

Postby Forrest747 » Mon Jul 15, 2013 3:06 pm

I am trying to put together the plans for my awning. I have a general idea of what I want to do.

But in the mean time if you could show us your awning and/ side room that would be great.

Thank you
"All the success on the trail can not compensate for having square headlights"

"I've got a fever and the only prescription is more cowbell!"
http://www.tnttt.com/viewtopic.php?f=50&t=37701 Build Journal
User avatar
Forrest747
Cowbell Donating Member

Posts: 1327
Images: 447
Joined: Mon Apr 06, 2009 3:40 am
Location: West Valley Utah, Utah

Re: Show us your awning

Postby Shadow Catcher » Mon Jul 15, 2013 5:25 pm

All three awnings are suspended from Kedar/awning rail. The rear tarp now has mosquito netting. All are 6' wide at the trailer and the rear one is 14' long by 14' wide at the widest.

109127109126805438054561604
User avatar
Shadow Catcher
Donating Member

Posts: 6002
Images: 234
Joined: Sat Apr 11, 2009 8:26 pm
Location: Metamora, OH

Re: Show us your awning

Postby Forrest747 » Mon Jul 15, 2013 5:27 pm

So its held up by the poles and tension from teh ropes. ok very nice.
"All the success on the trail can not compensate for having square headlights"

"I've got a fever and the only prescription is more cowbell!"
http://www.tnttt.com/viewtopic.php?f=50&t=37701 Build Journal
User avatar
Forrest747
Cowbell Donating Member

Posts: 1327
Images: 447
Joined: Mon Apr 06, 2009 3:40 am
Location: West Valley Utah, Utah
Top

Re: Show us your awning

Postby S. Heisley » Mon Jul 15, 2013 7:12 pm

Forrest, these aren't mine but I like the two different awnings that this fellow did. One of them is homemade and the other, purchased:

https://sites.google.com/site/mychaletr ... ck-awnings
User avatar
S. Heisley
Super Lifetime Member

Posts: 8813
Images: 495
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: Show us your awning

Postby Shadow Catcher » Mon Jul 15, 2013 8:17 pm

Simple to put up easy to drop an end in bad weather and since the Kedar rail is continuous on three sides, it is a rain gutter, all the rain goes off the front. The two side tarps are Kelty Car tarps which are 11'6" wide at the widest and 11'6" long and as i said 6' wide at the tear.
User avatar
Shadow Catcher
Donating Member

Posts: 6002
Images: 234
Joined: Sat Apr 11, 2009 8:26 pm
Location: Metamora, OH
Top

Re: Show us your awning

Postby Forrest747 » Mon Jul 15, 2013 8:21 pm

ShawdowCatcher I saw the drip rail that has the awning insert and I am thinking of using it.
"All the success on the trail can not compensate for having square headlights"

"I've got a fever and the only prescription is more cowbell!"
http://www.tnttt.com/viewtopic.php?f=50&t=37701 Build Journal
User avatar
Forrest747
Cowbell Donating Member

Posts: 1327
Images: 447
Joined: Mon Apr 06, 2009 3:40 am
Location: West Valley Utah, Utah
Top

Re: Show us your awning

Postby webbaldo » Tue Jul 16, 2013 8:50 am

A big tent with 2 entrances is good enough for us, one entrance is attached to the TD

Here is ours (well catalogue pic)

Likes to think he's Norm from New Yankee Workshop

In reality, hes a average DIY'er with a 18x16ft Wooden shed
webbaldo
Teardrop Master

Posts: 243
Images: 0
Joined: Tue Jun 12, 2012 1:51 pm
Location: Europe
Top

Re: Show us your awning

Postby len19070 » Tue Jul 16, 2013 9:05 am




All Home made.

Happy Trails

Len
:peace: :peace: :peace: :peace: :peace:
http://s26.photobucket.com/user/len1907 ... 20trailers

"If you do good things, good things will happen to you"..... Earl Hickey
User avatar
len19070
3000 Club
3000 Club

Posts: 3054
Images: 24
Joined: Tue Aug 17, 2004 7:44 pm
Location: S.E Pa. Morton
Top

Re: Show us your awning

Postby GuitarPhotog » Tue Jul 16, 2013 11:17 am

While neither fancy nor sophisticated, I was "snug and smug" under my tarp/awning during eight rainy days on my tour of the Great Northwet last month.

109912

Shows the rear awning and the side vestibule. The vestibule frame is made from electrical conduit. The rear awning relies on the teardrop at one end and two tarp poles at the other. Both are tall enough for me to stand under. The vestibule will get sewn awning fabric sides and top this winter.

109913

Interior view

<Chas>
:beer:
GuitarPhotog
Silver Donating Member

Posts: 1779
Images: 55
Joined: Tue Feb 08, 2011 12:52 pm
Location: Grants Pass Oregon
Top

Re: Show us your awning

Postby 48Rob » Tue Jul 16, 2013 6:06 pm


Waiting for "someday" will leave you on your deathbed wondering why you didn't just rearrange your priorities and enjoy the time you had, instead of waiting for a "better" time to come along...
User avatar
48Rob
Super Lifetime Member

Posts: 3882
Images: 4
Joined: Thu Nov 17, 2005 6:47 pm
Location: Central Illinois
Top

Re: Show us your awning

Postby rowerwet » Wed Jul 17, 2013 8:16 am

109765 the one in my signature
we just used it for a week recently, worked great! doesn't cost much :thumbsup:
User avatar
rowerwet
Gold Donating Member

Posts: 2075
Images: 521
Joined: Mon Apr 20, 2009 12:52 am
Location: Merrimack River Valley
Top

Re: Show us your awning

Postby RioWilson » Wed Jul 17, 2013 9:14 am

User avatar
RioWilson
Teardrop Master

Posts: 123
Images: 21
Joined: Sun Jan 31, 2010 5:32 pm
Location: Columbia County, Wisconsin
Top

Re: Show us your awning

Postby Robin Bobula » Sun Jul 21, 2013 4:39 pm

110089

110088

Homemade. Working on a matching, bigger one for the side.
Robin Bobula
Teardrop Advisor

Posts: 55
Images: 20
Joined: Sun Jul 06, 2008 11:08 am
Location: York, PA
Top

Re: Show us your awning

Postby catinmoon » Mon Jul 22, 2013 3:07 pm

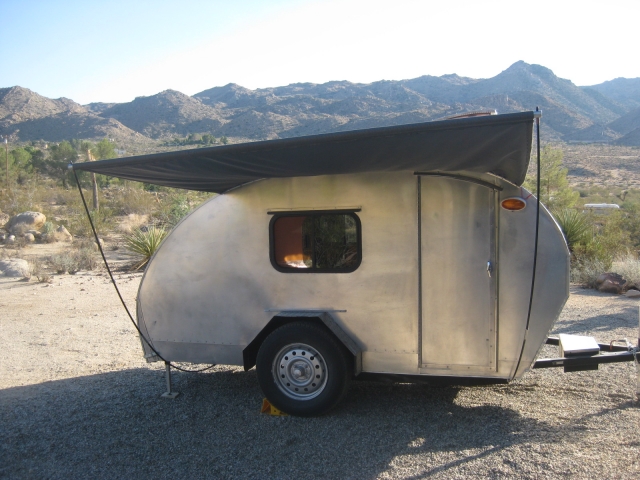

This is my awning, before I did some adjustments. It works by running a hemmed rope through a track on the trailer, then hooks into a rod held up by some bendy (graphite?) poles.

It still needs more adjustment -- hard to get it high enough for people over 5 foot 4. Made it from some sunbrella fabric I ordered. Sewed on the sewing machine breaking lots of needles and thread, then used some seam seal on the stitches.

it's relatively waterproof -- biggest issue in a storm is that the water pools in the center so you need to periodically dump the water to the side.

Stephanie
catinmoon in Joshua TRee, CA
User avatar
catinmoon
Teardrop Master

Posts: 132
Images: 11
Joined: Fri Sep 14, 2012 10:17 pm
Top

Re: Show us your awning

Postby Forrest747 » Sun Aug 04, 2013 7:44 pm

110580110643110644110646

I started mine today and going with PVC. allows me to be modular and attaches to the trailer nice. using footmen brackets to hold the supports and a C-channel.
"All the success on the trail can not compensate for having square headlights"

"I've got a fever and the only prescription is more cowbell!"
http://www.tnttt.com/viewtopic.php?f=50&t=37701 Build Journal
User avatar
Forrest747
Cowbell Donating Member

Posts: 1327
Images: 447
Joined: Mon Apr 06, 2009 3:40 am
Location: West Valley Utah, Utah
Top

Next

Return to Teardrop Construction Tips & Techniques
