Postby Joanne » Thu Jan 20, 2005 12:25 pm

Hi all,

I've been thinking about how to set up the wiring systems on my trailer. I've broken the wiring up into three systems; the trailer running lights, the trailer battery charging circuit, and the cabin lights.

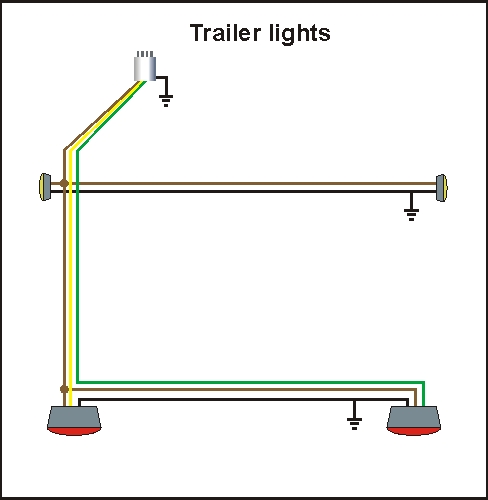

Here are the three diagrams that I came up with. Any comments, suggestions, or thoughts about what I've laid out?

Thanks!
Joanne
