Step 21: Build the doors – ¾” birch plywood

Here is a generic building plan for a teardrop designed by the members of T&TTT.

Step 21: Build the doors – ¾” birch plywood

Postby mikeschn » Thu Sep 29, 2005 2:57 pm

Step 21: Build the doors – ¾” birch plywood

You cut out the doors already in step 4. Now it’s time to finish them.

You want to end up with a 1/8” gap all around the door, after the t molding has been installed. So your finished door size needs to be 3/8” less than the opening size, both vertically and horizontally. The easiest way to get your door to size is to rip off the appropriate amount off of the straight edges using your table saw. Hang the door with your stainless steel hinge and test for fit. The hinge should extend beyond the top and bottom of the door by ½”.


With your doors properly sized, cut out the opening for the window.


Stain and polyurethane the inside surface of the door to match the cabin. Paint the outside and the edges with CPES and Uniflex.

Bend some deadsoft t-molding around the edge and fasten it with stainless steel flat head screws. Also fasten a straight length along the bottom edge. Attach a stainless steel hinge along the long vertical edge. Install your door handle. I notched out the t-molding with a grinding wheel for the door handle. Finally, install a window in the opening, with a good bead of silicone caulk for water proofing.

Your door should now look like this.


Hang the door on the body with stainless steel flat head screws. Pick a length that won’t break through the inside of the wall.
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19195
Images: 479
Joined: Tue Apr 13, 2004 11:01 am
Location: MI

T-molding

Postby Hardin Valley Magic » Sun Oct 02, 2005 10:00 pm

Hate to be a bother BUT, can you show me a pic of Tmolding that is not installed so that I can get a better understanding of it. My dooors are rectangle(smaller than any I hanve seen 21"w x 36"h) and am looking for a good sealing from the elements. :worship:
Thanks in advance....
aka Steven D.
User avatar
Hardin Valley Magic
Donating Member

Posts: 548
Images: 45
Joined: Wed Sep 14, 2005 9:45 pm
Location: Knoxville Tenn.

Postby mikeschn » Mon Oct 03, 2005 3:38 am

Sure thing...

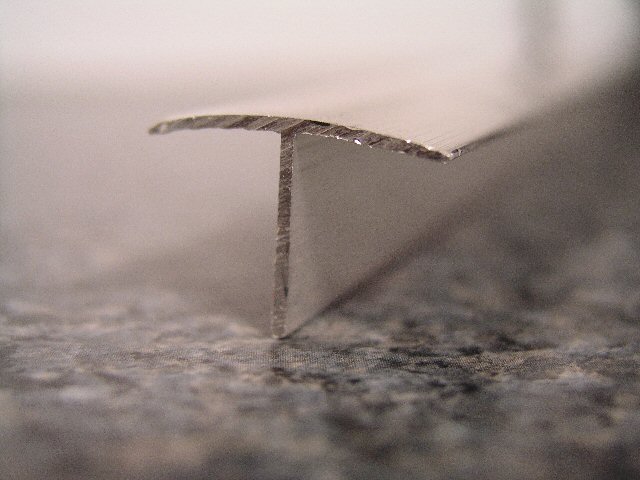

It looks like this...


and you can get it here...

http://www.teardrops.net/LilBear/parts.html

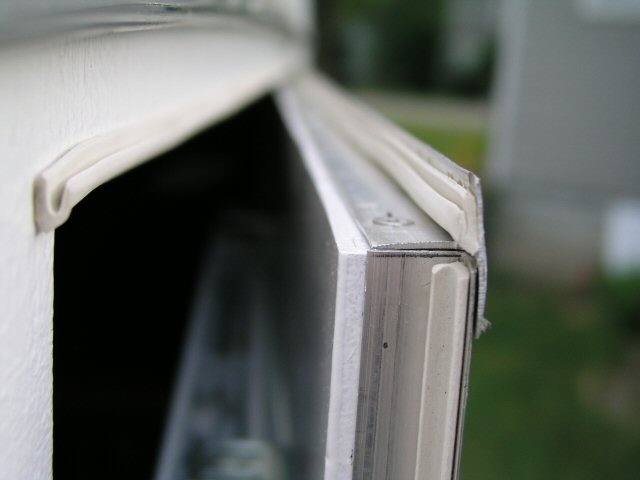

And then you'll want to add some weather stripping on the inside, perhaps similar to this...
