5' X 10' Grumman 2 Sort Of

...ask your questions in the appropriate forums BUT document your build here...preferably in a single thread...dates for updates, are appreciated....

5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Mon Sep 21, 2015 9:06 pm

Day One, 09-21-15:

Oh boy here we go!

Today I started on my TD that I've designed using the Grumman 2 design as a guide.

I've been designing it and following the forums for over a month now and have decided to jump in and build one of these little guys.

While I've done woodworking for many, many years I've never built anything like this.

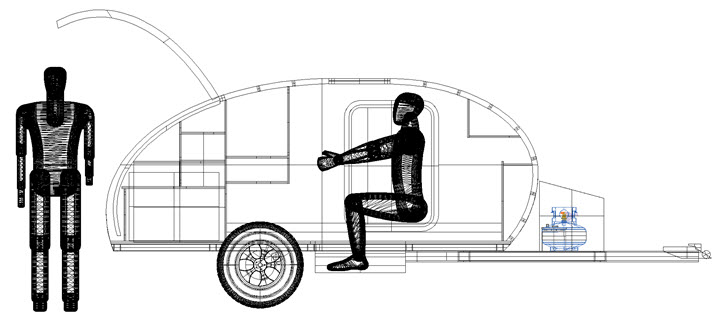

Here's a line drawing of what I'm going for:

Line Drawing.jpg
Line Drawing.jpg (36.93 KiB) Viewed 2963 times


I've ordered all the pieces for the frame, the axle, wheels and tires.

I picked up a 4' X 8' X 1/4" piece of plywood to make a template. I'll add two feet to the end of it to get the 4'' X 10' profile I'm looking for.

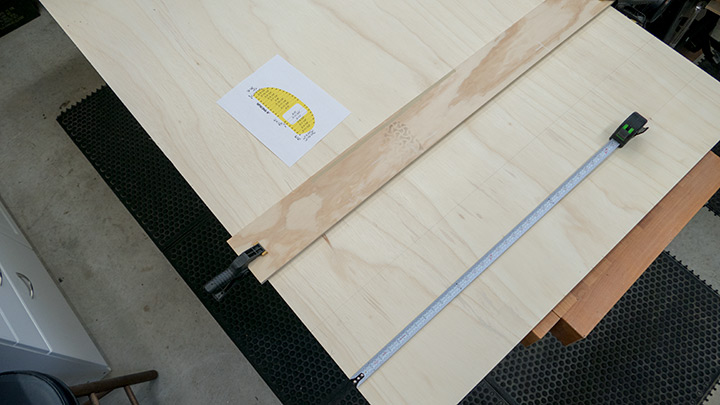

Here's my layout:

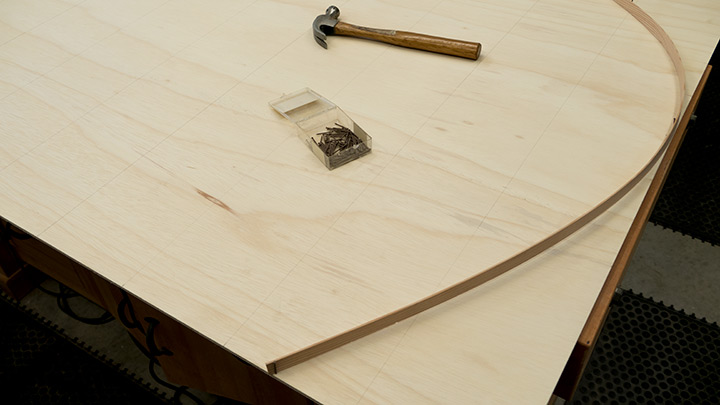

Here I'm laying out the lines using a bender-board:



Wish me luck :NC

KennyB
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington

Re: 5' X 10' Grumman 2 Sort Of - Day 2

Postby RunnerDuck » Tue Sep 22, 2015 9:05 pm

Today was not all that productive as we had a lot of things to do off island.

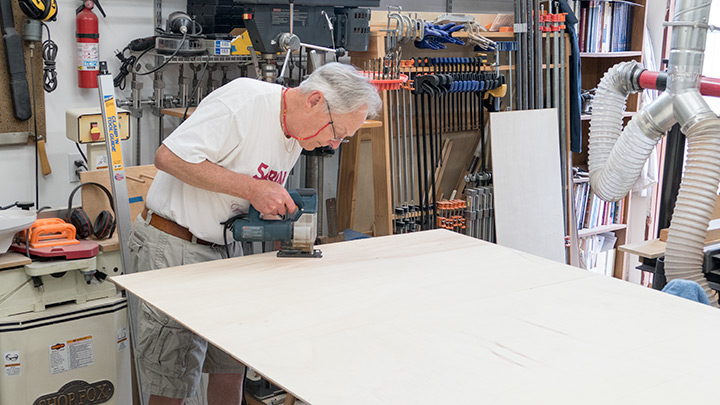

I did manage to make my 4' X 8' X 1/4" piece of plywood for my template into a 4' X 10' sheet by lapping on a two foot piece. I routed a 1 3/4 " dado, half the thickness of the plywood and glued them together.

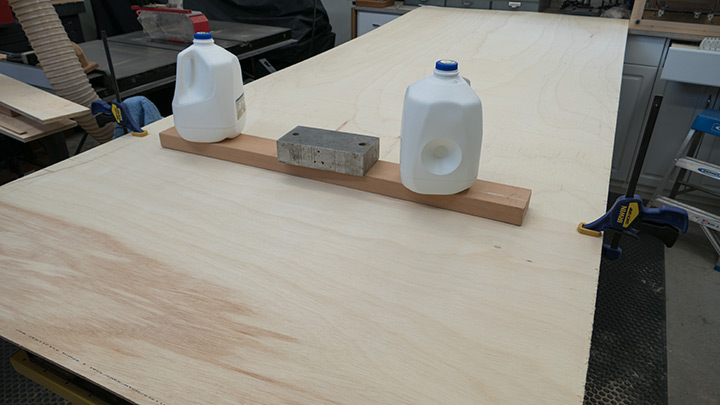

I weighted them down with water filled milk jugs and a chunk of aluminum I had laying around.

On the mainland I picked up all the iron for the trailer frame at Skagit Steel in Burlington, WA.



That was it for the day. Hopefully more progress will be made tomorrow.

KennyB
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington

Re: 5' X 10' Grumman 2 Sort Of

Postby rebapuck » Tue Sep 22, 2015 10:27 pm

I've been to Whidbey Island. My best friend was born there on base.
Judy
1966 VW camper
1967 VW singlecab
User avatar
rebapuck
.

Posts: 2217
Images: 1
Joined: Thu May 14, 2009 1:55 pm
Location: Chapel Hill NC
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby MarkfromSeattle » Tue Sep 22, 2015 11:01 pm

Runner duck, I'm in West Seattle and just starting a teardrop build as well. He to run into you sometime and share teardrop advice.
MarkfromSeattle
Teardrop Inspector

Posts: 3
Joined: Mon Sep 21, 2015 5:17 pm
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby JmsCaverly » Wed Sep 23, 2015 4:52 am

Your going to have a very similar shape to mine I'm interested how yours will turn out. I'm curious if our profiles will match, did you get your profile from the design library?
Come visit my build journal
139728 139588
viewtopic.php?f=50&t=63870
User avatar
JmsCaverly
Teardrop Master

Posts: 150
Images: 175
Joined: Mon Jul 20, 2015 4:32 pm
Location: Travis AFB
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Wed Sep 23, 2015 8:42 am

rebapuck wrote:I've been to Whidbey Island. My best friend was born there on base.


It's a wonderful place but it takes some patience because almost everything for building my TD will be delivered by UPS.
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Wed Sep 23, 2015 8:44 am

MarkfromSeattle wrote:Runner duck, I'm in West Seattle and just starting a teardrop build as well. He to run into you sometime and share teardrop advice.


Hi Mark,

Good to hear I'm not alone around here. I'd love to see your progress as time goes by. Do you have a Build Journal on this forum?
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Wed Sep 23, 2015 8:47 am

JmsCaverly wrote:Your going to have a very similar shape to mine I'm interested how yours will turn out. I'm curious if our profiles will match, did you get your profile from the design library?


I did start with the profile from the "Design Library" and then pushed and pulled it in my software to get it to a 4' X 10' profile. If you used the same file then ours should be similar.

I'm just now starting to cut out the template for the sides.

Do you have a picture of yours?

Thanks,

KennyB
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of - Day 3

Postby RunnerDuck » Wed Sep 23, 2015 5:52 pm

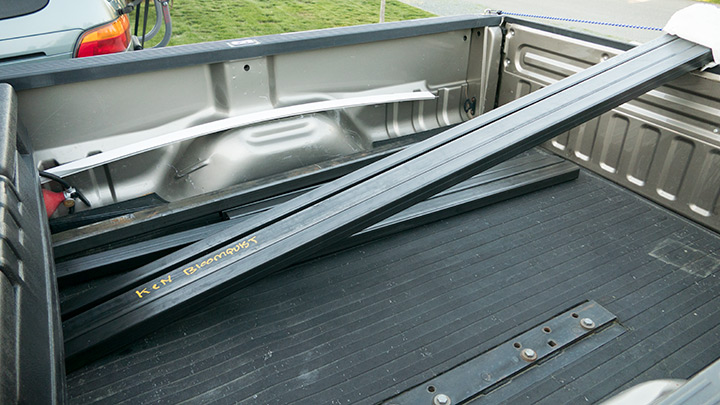

Well I made a little more progress today. I got the trailer steel unloaded from my pickup and will start cutting and tack welding tomorrow.

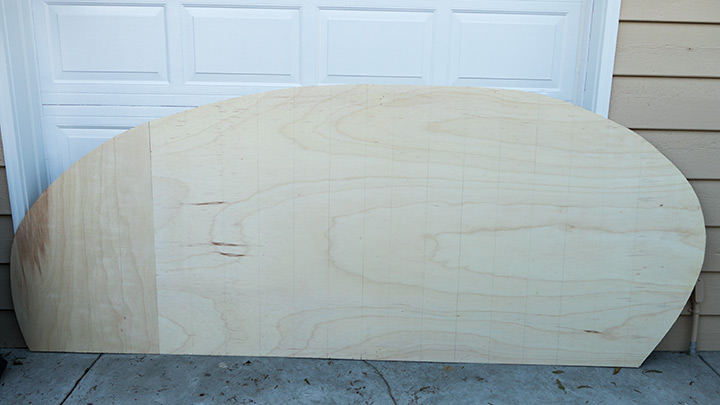

Meanwhile I finished drawing out the pattern on the plywood and cut it out.

Here it is in all its glory :thumbsup:

Now I need to refine the edges by sanding them to a perfect curve.

I also ordered the doors today, I'm getting excited now :D
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby daveesl77 » Wed Sep 23, 2015 6:41 pm

I love your "bender board", that is how I made my curves, using pieces of cedar strip I cut.

When folks ask me what is the curve radius I tell them - 3/16" thick cedar, where it wanted to go. :D

dave
*******
Dave and Regina - Enjoying old age, a LOT!

Build Journal - http://www.tnttt.com/viewtopic.php?f=50&t=62386
User avatar
daveesl77
Donating Member

Posts: 864
Images: 273
Joined: Tue Jan 27, 2015 4:33 pm
Location: Pocahontas County, West Virginia
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby JmsCaverly » Thu Sep 24, 2015 6:21 am

Sure do Kenny just click below on my build journal and you can see it.

Looking good so far...... Can't wait to see more

-James
Come visit my build journal
139728 139588
viewtopic.php?f=50&t=63870
User avatar
JmsCaverly
Teardrop Master

Posts: 150
Images: 175
Joined: Mon Jul 20, 2015 4:32 pm
Location: Travis AFB
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby Gunguy05 » Thu Sep 24, 2015 7:51 am

Looking like you are on the right track so far. The Grumman 2 is one of the profiles I am looking at for my next build if I decide to go the "curved" rather than "most space" route. I really like the lines of it!

Keep us posted!

Brian
Brian


Checkout my buildThe Regal Eagle Bow front for 4
Also my teardrop updates from blog on Dad Rambles
User avatar
Gunguy05
The 300 Club

Posts: 385
Images: 6
Joined: Mon Dec 02, 2013 4:45 pm
Location: South GA
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Thu Sep 24, 2015 9:50 am

daveesl77 wrote:I love your "bender board", that is how I made my curves, using pieces of cedar strip I cut.

When folks ask me what is the curve radius I tell them - 3/16" thick cedar, where it wanted to go. :D

dave


:applause: Good one Dave, I'll have to remember that's answer. Actually I used fir but who's splitting hairs :)
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Thu Sep 24, 2015 10:02 am

JmsCaverly wrote:Sure do Kenny just click below on my build journal and you can see it.

Looking good so far...... Can't wait to see more

-James


Hi James,

Nice Build Journal, lots of good information.

Did you ever settle on the batteries?

If you are using two 6V batteries won't that be a lot of weight on the tongue?

I have two 6V batteries in my fifth-wheel trailer and just love them. I use a Pro-Fill filler system to keep them topped of and it works great. I'm not sure where I got mine but here they are at CW http://www.campingworld.com/shopping/item/pro-fill-rv-edition-dual-6-volt-battery-watering-system/27035

Thanks again and stay tuned!
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top

Re: 5' X 10' Grumman 2 Sort Of

Postby RunnerDuck » Thu Sep 24, 2015 10:04 am

Gunguy05 wrote:Looking like you are on the right track so far. The Grumman 2 is one of the profiles I am looking at for my next build if I decide to go the "curved" rather than "most space" route. I really like the lines of it!

Keep us posted!

Brian


Thanks Brian,

I too struggled with which design to go with but I just love the more traditional teardrop shape so that's what I'm building.

I'll keep the posts coming!
User avatar
RunnerDuck
Teardrop Master

Posts: 167
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington
Top
