Postby TallyTear » Sun Jan 31, 2016 9:26 am

Okay so here it goes. This is my attempt at a build journal. Please excuse grammar through out this thread. I am a hands on guy.

A little back ground on me. I am a welder/ machinist by trade but have done a little of everything. I enjoy building things and usually in the winter a do a wood project. So back around October I was on Craigslist and saw a TD for sale. I thought well that will be a fun project. I have been obsessed ever since. The wife is excited about the TD but is tiring of me obsessing. :?

I am starting this about 70% into my build but thought it's never to late to share your experiences.

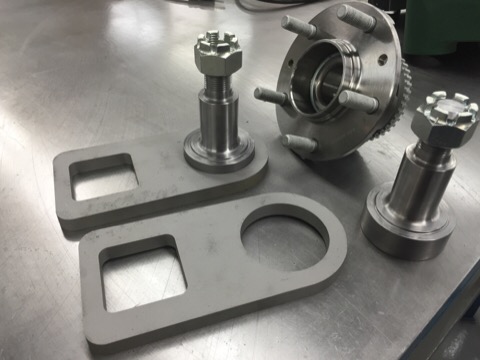

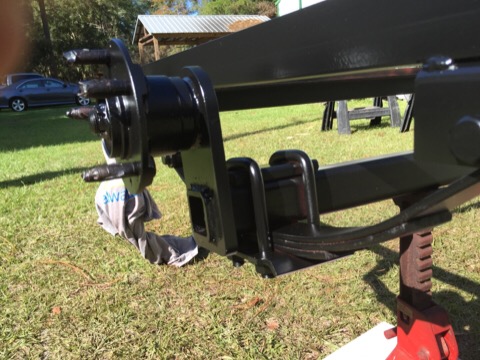

I guess I will start with axle. After going around and around about torsion I think it is the way to go but I could not justify cost for the one I wanted. So I made a 4" drop axle with materials I had.
Attachments
4" DIY Drop axle
4" DIY Drop axle
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Sun Jan 31, 2016 1:29 pm

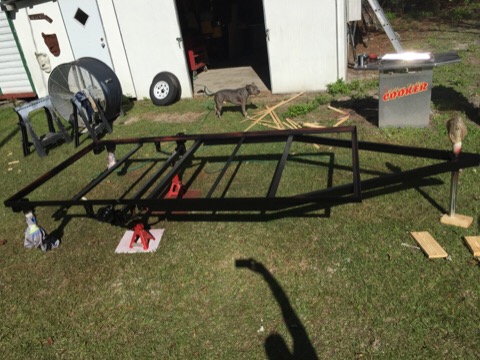

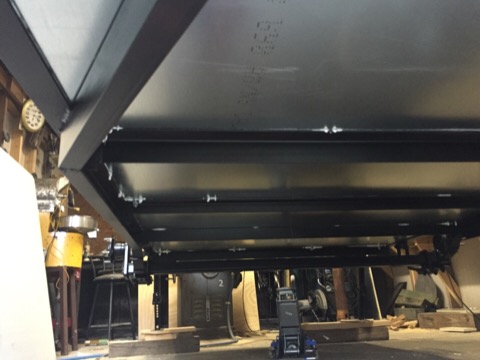

I decided to go with 2x2x1/4 angle with 3" channel for tunge. I used a one piece sheet of galvanized metal to seal underside. No sure why I have not seen more of this.
Attachments
Trailer frame
Trailer frame
Trailer frame
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl

Re: From scratch 5x10 Benroy Mod

Postby Vedette » Sun Jan 31, 2016 1:42 pm

Welcome to the Forum.........and thanks for the pictures.
There is a lot of great information here, that you are going to need for the rest of your build.
As a welder you might want to check out my album (icon to the left) note the pictures are in reverse order.
Good Luck with the rest of your build (and it is an obsession, but so is the teardrop camping and this Forum. ;)
Good Roads
Brian & Sandi
Good Roads
Brian & Sandi
Here is a link to my Build Journal
viewtopic.php?f=50&t=50912
User avatar
Vedette
Silver Donating Member

Posts: 5129
Images: 443
Joined: Thu Dec 01, 2011 4:28 am
Location: Westbank B.C.
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Sun Jan 31, 2016 7:40 pm

Yes I am very excited about camping in my TD! This site has been very helpful. Sadly I have not found details of galley hatch seal/ trim for 1.5 walls. I am sure it is here I just have not found it. Like said I am pretty far along with build I just have been posting as I get time. Your fab skills are impressive.
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Sun Jan 31, 2016 8:30 pm

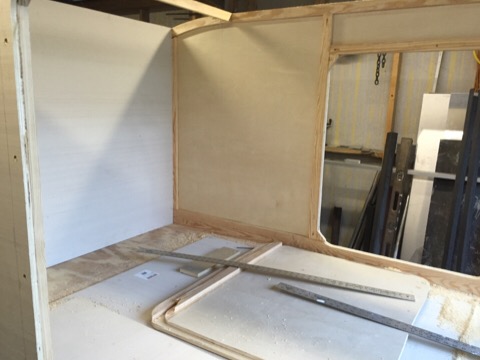

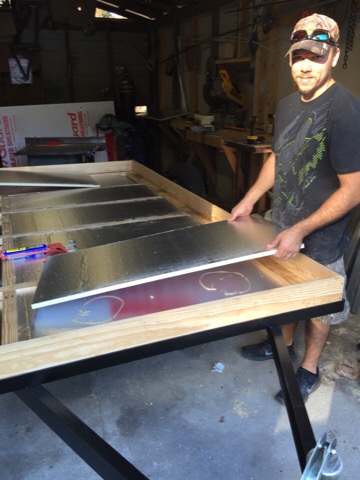

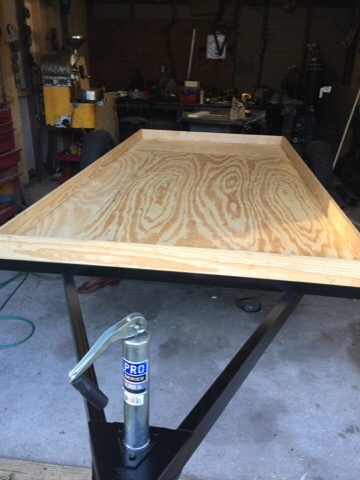

On to the floor. I used pine studs ripped down to 2" widths. Two layers of 3/4 foam board. Finished off with 1/2 BC. I ran a really good grade pine 1x6 around the outside to mount 1/2 plywood walls to. I will post a detailed picture of trailer floor wall connection.
Attachments
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Mon Feb 01, 2016 9:19 am

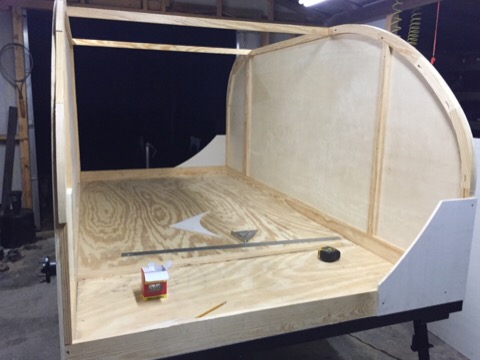

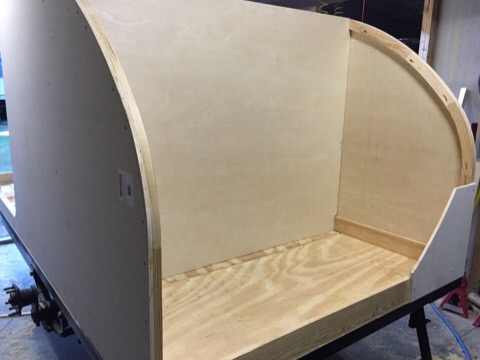

Some pictures of framing. The rear bulkhead was temporary. If I could go back I would have added more spars along front radius.
Attachments
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Mon Feb 01, 2016 9:21 am

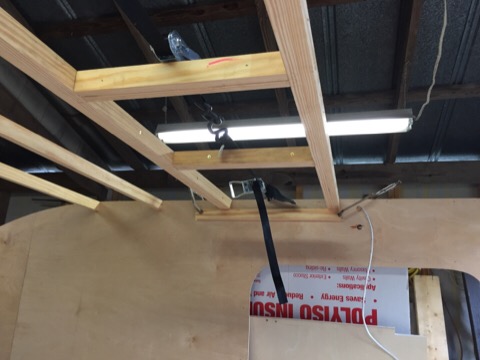

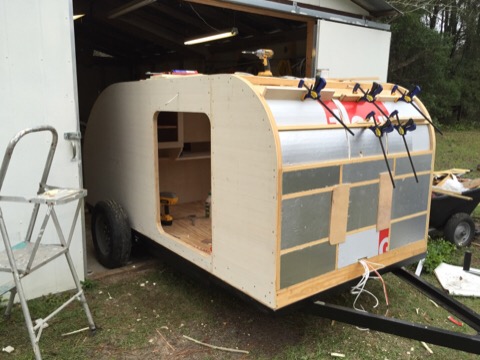

More framing pictures.
Attachments
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby noseoil » Wed Feb 03, 2016 7:46 am

Sweet build & nice progress on the work. Looking forward to the first camping pictures!
Build log: viewtopic.php?f=50&t=60248
The time you spend planning is more important than the time you spend building.........

137905
User avatar
noseoil
1000 Club
1000 Club

Posts: 1406
Images: 117
Joined: Sun Apr 27, 2014 8:46 am
Location: Raton, New Mexico, living the good life!
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Wed Feb 03, 2016 5:03 pm

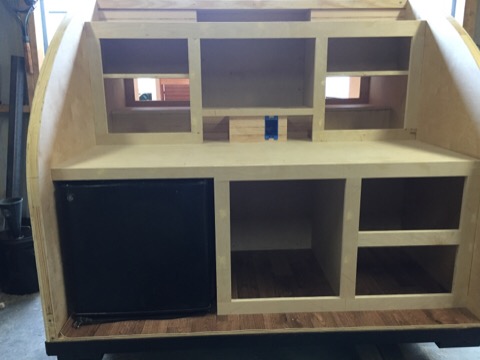

My postings have just about caught up with my build. Lol Things have slowed do to funding. Just taking a month to reciprocate.
Attachments
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Wed Feb 03, 2016 5:06 pm

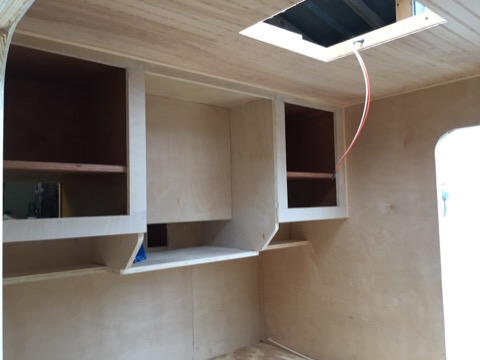

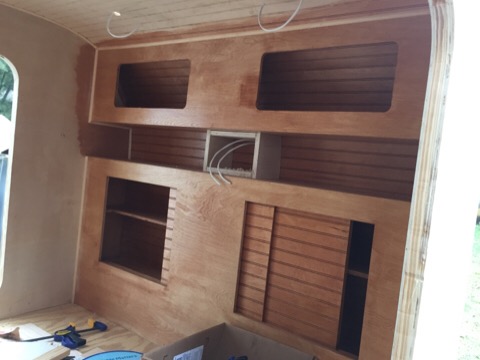

This is a couple weeks ago. I have the outside skinned with Baltic birch. For the most part all the staining and polyurethane done.
Attachments
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby Mushin » Wed Feb 03, 2016 8:11 pm

Last edited by Mushin on Wed Feb 03, 2016 8:12 pm, edited 1 time in total.
User avatar
Mushin
Teardrop Master

Posts: 119
Joined: Tue Dec 15, 2015 2:21 pm
Top

Re: From scratch 5x10 Benroy Mod

Postby Mushin » Wed Feb 03, 2016 8:11 pm

Looking nice and moving fast!
User avatar
Mushin
Teardrop Master

Posts: 119
Joined: Tue Dec 15, 2015 2:21 pm
Top

Re: From scratch 5x10 Benroy Mod

Postby dales133 » Wed Feb 03, 2016 8:15 pm


Nice
User avatar
dales133
4000 Club
4000 Club

Posts: 4603
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Thu Feb 04, 2016 6:38 am

Just to clarify I started it the first of November. But honestly it would be done about now if I wasn't waiting to buy all the fixtures, doors, and skin. Of course it didn't help that I cut two door opens for the large 30x36 doors =$$$$. My original goal was to be done in March. It could be as late as fall time now. I am currently in the process of preparing to purchase a new house. Anyway I am so ready for the first camping trip!
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: From scratch 5x10 Benroy Mod

Postby TallyTear » Thu Jan 12, 2017 8:07 pm

Finally back to work!ImageImageImageImage
