Postby Fishingtomatoseed » Thu Apr 14, 2016 3:50 pm

Well here is the start of build number two. This one is for some friends that want to start camping and spending a lot of time outdoors. They finally pulled the trigger and so here we go!!

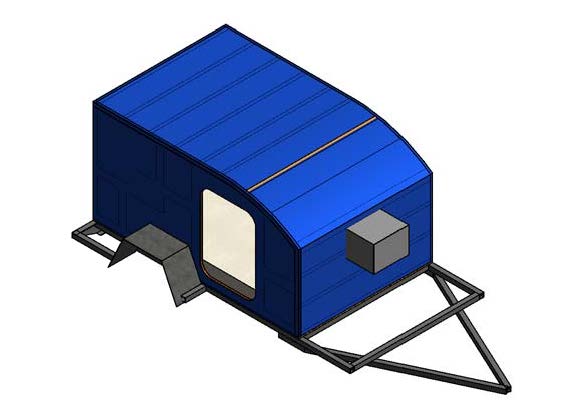

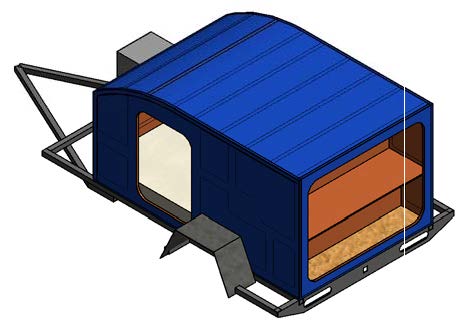

Design of trailer:

It is 5' wide 8' long 4' tall. The frame will be 2x2 tubing, 11ga and 3/16. The axle will be Flexiride with 30"x15" wheels. More pics coming soon...........
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas

Re: 5x8 Off-Road

Postby lfhoward » Thu Apr 14, 2016 4:18 pm

Looks like a good rugged design. I like it. What's the tow vehicle and what kind of lift/tires will you need to match?
My off-road camper build on an M116A3 military chassis:
http://www.tnttt.com/viewtopic.php?f=50&t=62581
Tow vehicle: 2008 Jeep Liberty with a 4 inch lift.
User avatar
lfhoward
500 Club

Posts: 549
Joined: Wed Jan 22, 2014 6:10 pm
Location: Philadelphia, PA

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Fri Apr 15, 2016 6:20 am

The tow vehicle at this moment is an F150. They are looking in the future to get a Chevrolet truck or Jeep. But they wanted the trailer to be "trail ready". More than likely we will tone down the size of tires for the trailer and match with hitch height for now.


Here is some frame pics:

Just laying it out:


Getting it squared up:


Working on the tongue angles:



Sent from my iPhone using Tapatalk
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Mon Apr 18, 2016 6:48 am

Just welding the front up. Going to try and get the drive line mocked up this week and maybe have a rolling chassis this weekend?



User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Sat Apr 23, 2016 6:21 am

Here are the drawings that I came up with for this trailer. If anyone would like to use them as a starting point go for it. I am using them now so there could be bugs in the drawings so use at your discretion and modify as needed. :D Let me know if anybody sees something completely wrong.
Attachments
tnttt upload.pdf
Drawings
(42.98 KiB) Downloaded 104 times
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby S. Heisley » Sat Apr 23, 2016 8:17 pm

:thumbsup: I like it already.
User avatar
S. Heisley
Super Lifetime Member

Posts: 8317
Images: 491
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Sun Apr 24, 2016 6:52 pm

S. Heisley wrote::thumbsup: I like it already.


Thank you.

Here are a few photos from this weekend. Installed the flexiride half axles. Got the bumper made and on. Recessed the lights and added a receiver hitch. Installed the front leveling jacks. Getting closer to paint!!!

User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Mon Apr 25, 2016 12:57 pm

The time-lapse from this weekend.

User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Sat May 07, 2016 1:02 pm

Went and picked up all the plywood yesterday at Central Hardwoods. All plywood is birch in 5x5 and 4x8. Seems like good plywood and I was able to get what I wanted with prices comparable to the big box stores. The core of the walls will be 3/4" with cutouts for insulation and laminated with 1/8" birch on each side. Planing on 1.5"x1.5" roof spars with the same 1/8" birch top and bottom. The chassis is coming along but not painted yet. Here is another timelapse:

User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby aggie79 » Sat May 07, 2016 9:06 pm

Very nice!


Sent from my iPhone using Tapatalk
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 5160
Images: 676
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Fri May 13, 2016 12:24 pm

Nothing exciting......Just laying out the walls to cut out.


User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby dales133 » Fri May 13, 2016 4:43 pm

Nice build ill be following along
User avatar
dales133
4000 Club
4000 Club

Posts: 4603
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

5x8 Off-Road

Postby Fishingtomatoseed » Wed May 18, 2016 8:52 pm

dales133 wrote:Nice build ill be following along


Thank you.

This past weekend we got the frame all finished up and got it primed. Also was able to cut out the wall structure. Not real happy with the quality of wood from Central Hardwoods. One of the 3/4" birch sheets had large section of unglued ply. Most of it was cut out and the rest I pulled apart and glued again.


So with my first build I discovered PL Premium and believe in it. So this go around I am using it again. We have glued one side of the 1/8" plywood to the framing. And then filling in the voids with blue foam.
I have never glued foam to wood before. So I am experimenting with the PL. I rough sanded the foam with 60 grit.
Then spread the PL with a notched trowel. Image
Wet the wood and using a weight to compress it over night. Tomorrow we will se how it bonds.
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: 5x8 Off-Road

Postby KCStudly » Thu May 19, 2016 11:08 am

Use caution when doing small scale tests with foam. You may get a false positive because a lot of the surface being glued is relatively close to an edge and has access to air, be it for ambient moisture cure or evaporation cure. This will not be the case on a larger panel glue up.

On some of the larger panels of foam where I laminated two pieces together using PL300, like on my hatch, I solved this problem by cutting shallow kerfs to act as air channels, or chimneys, in the foam.

Gluing foam to wood you can probably get away with a little spritz of water, or just wiping the wood with a slightly damp towel, in order to provide enough moisture for the cure.

I'm interested to see your test result. :thumbsup:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 9287
Images: 8119
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: 5x8 Off-Road

Postby Fishingtomatoseed » Thu May 19, 2016 8:43 pm

KC thank you for the information.

The results for the test pice was good. After 24 hours it was setup through out the pice. Granted my test was only about an 8"-10" triangle. I couldn't tear the foam from the wood with my hands. I had to take a putty knife and cut through the foam it self. Doing that and getting a corner up then pry with my hands. The foam would break where the knife stopped.

Before coming home today I stopped at the big orange store and picked up some more PL. Knowing that I was going to spread the glue out I looked at the 28oz tubes. For just a few more dollars you can get these. I just cut the tops off and used a 2x2 and pushed it out onto the ply.

Spreading the glue was a breeze with the v-notched trowel.

Laid the frame down and filled the holes with the roughed up foam. Walked around on it and added weights to hold every thing down. Before putting the foam in the holes I spritz water on those areas. So I hope that it cures KC. We will see........ I wonder with the ply only being 1/8" would it allow things to past between for the PL to cure?



Sent from my iPhone using Tapatalk
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top
