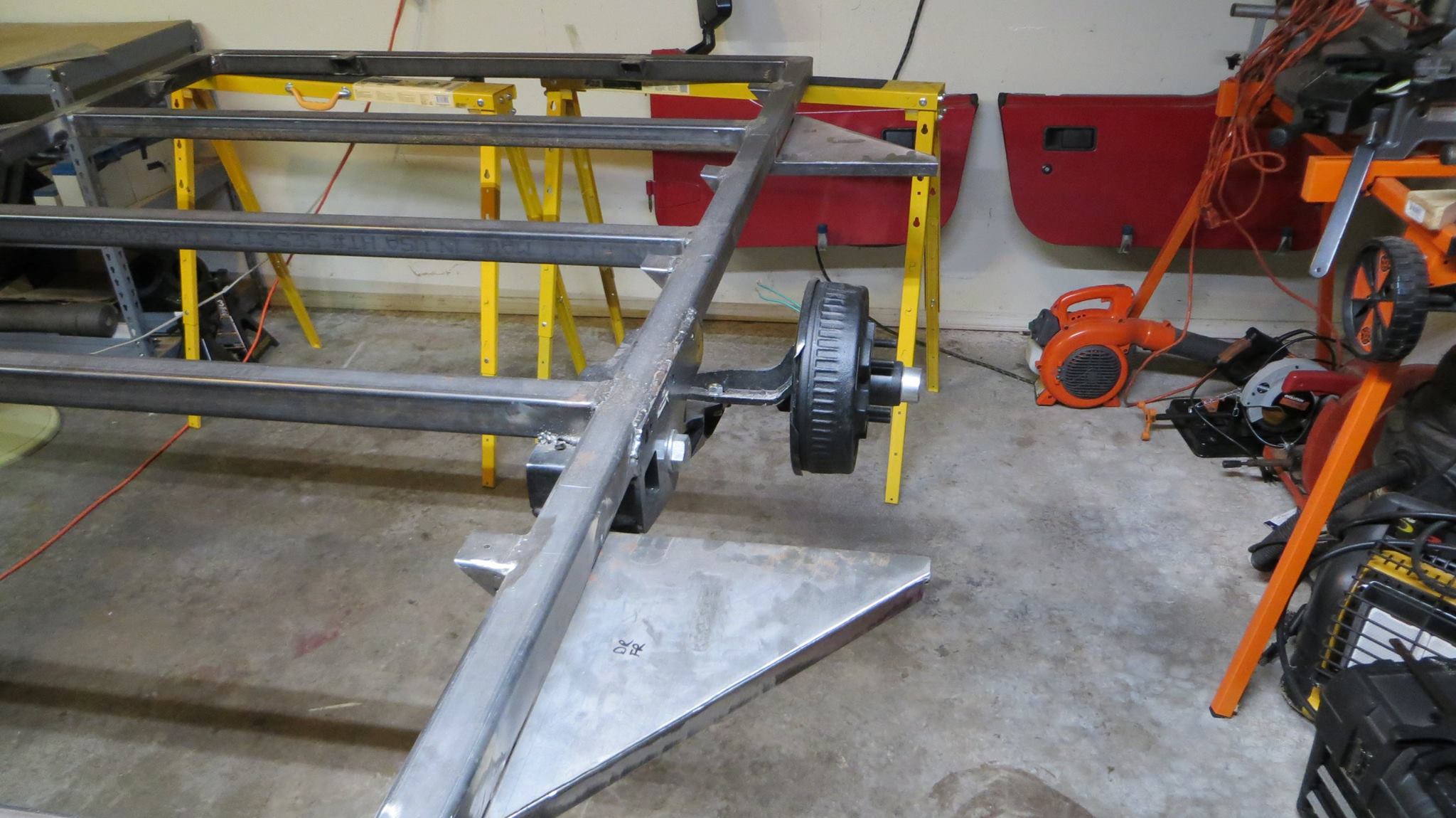

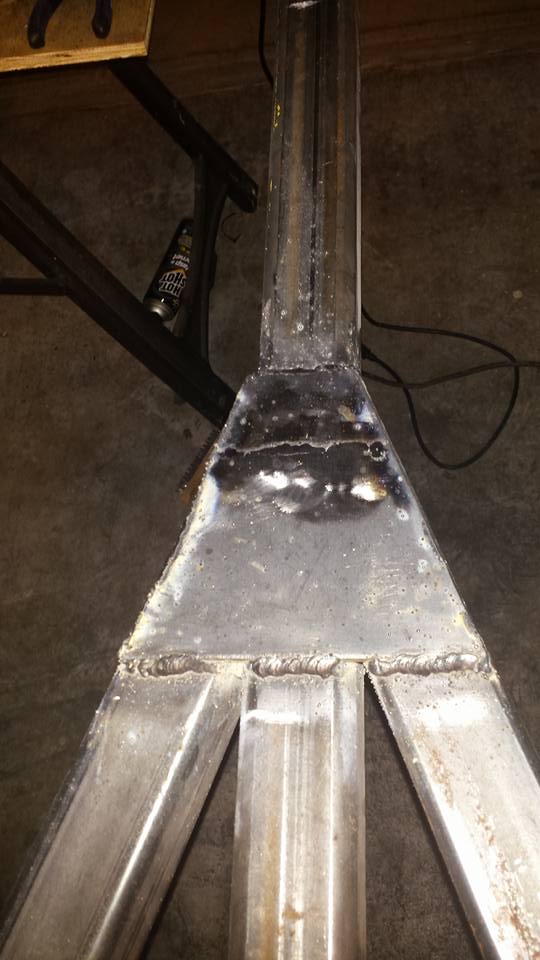

Hello Everyone,

I recently started my build. I want to thank everyone who has posted their builds and on other topics throughout the forum. The experience on this forum is pretty awesome!

So I decided to go with an Off Road Grumman 2. I really like the teardrop look and think the Grumman 2 is a good profile.

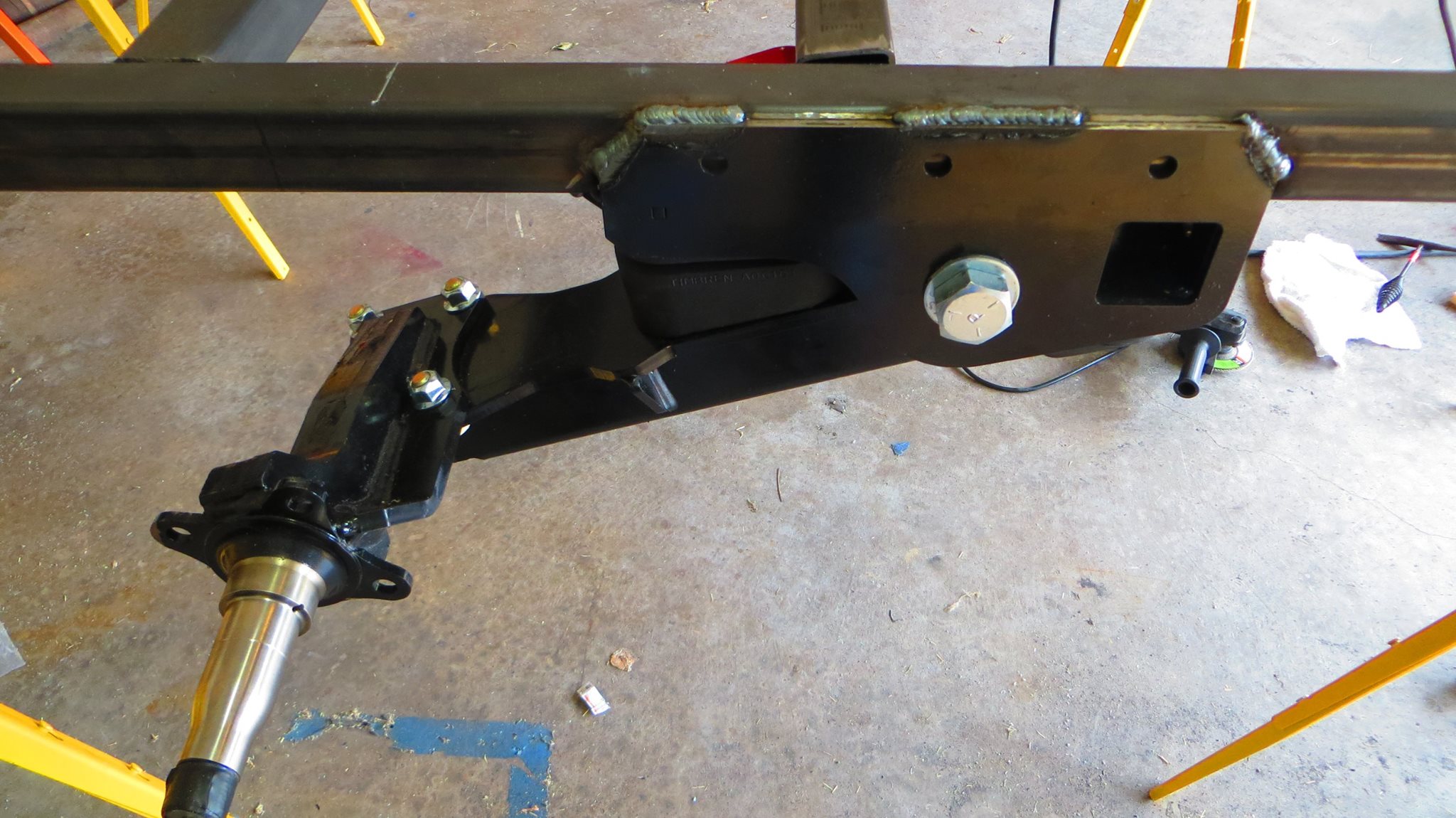

I went with 2x2 .120 square tube for the frame and 2x2 .25 square tube for the tongue. 1 tonne Timbren axle less suspension. I had my brother in-law help with the structural welds since he was once was certified. If you see some sub par welds those are definitely mine since this is my first time welding. Other than that I have done some carpentry, electrical, and plumbing. So hopefully with some guidance from here everything should go smoothly right? lol Famous last words

I guess I will post some pics. Any knowledge and comments are appreciated.

Here is a post about my trailer length and balance
http://tnttt.com/viewtopic.php?f=35&t=66868
Attachments
Last edited by DWT77 on Tue Sep 04, 2018 5:35 pm, edited 2 times in total.
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Fri Sep 09, 2016 7:52 pm

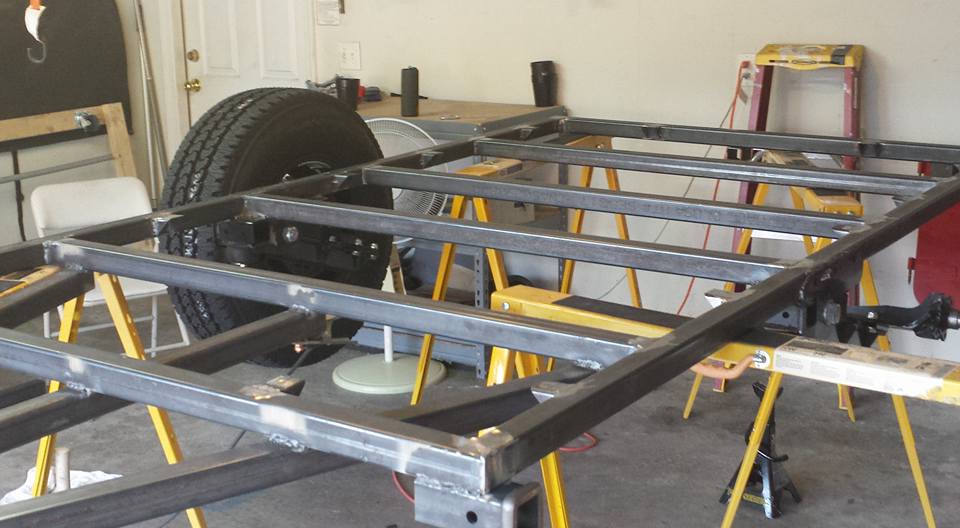

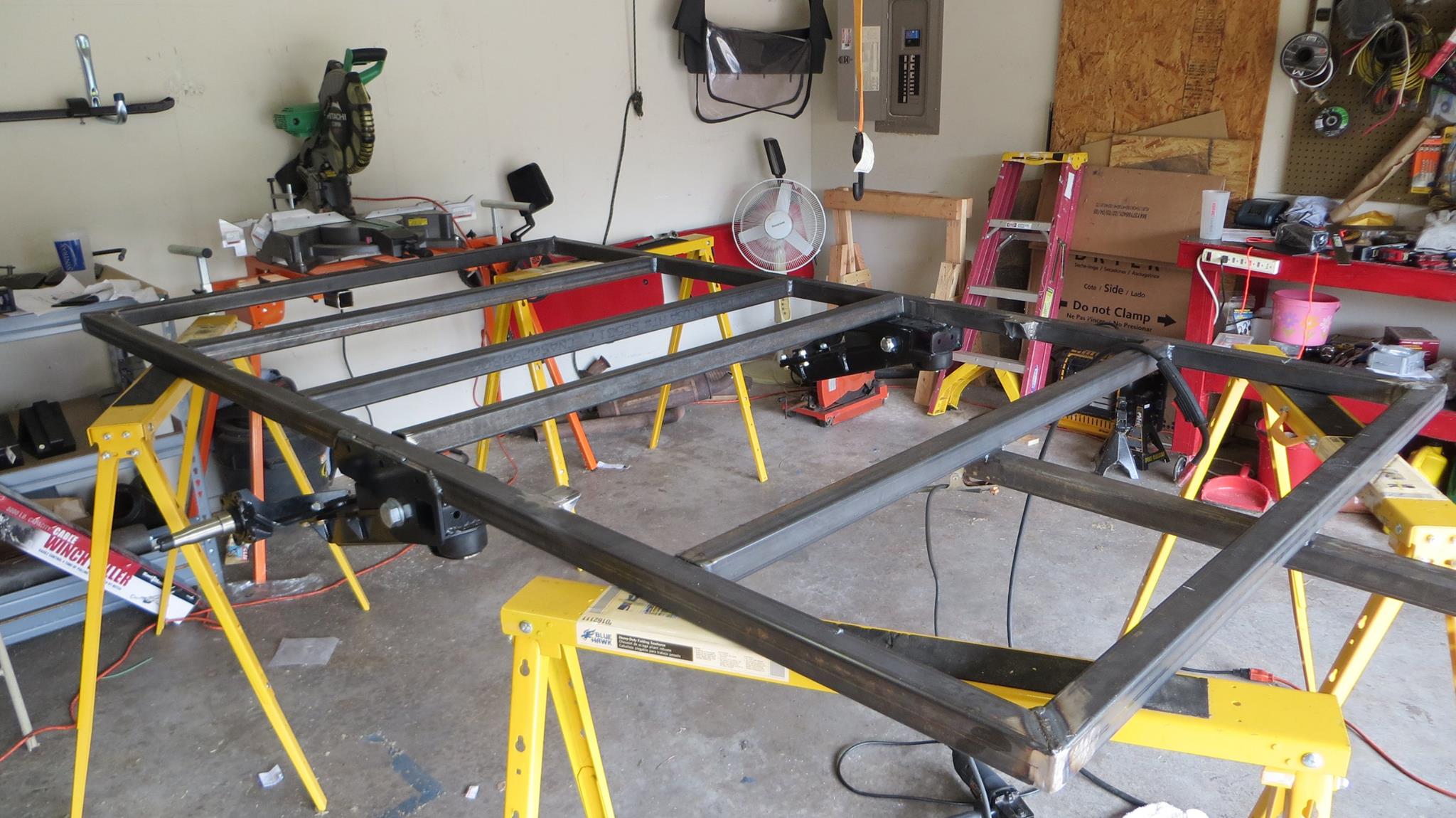

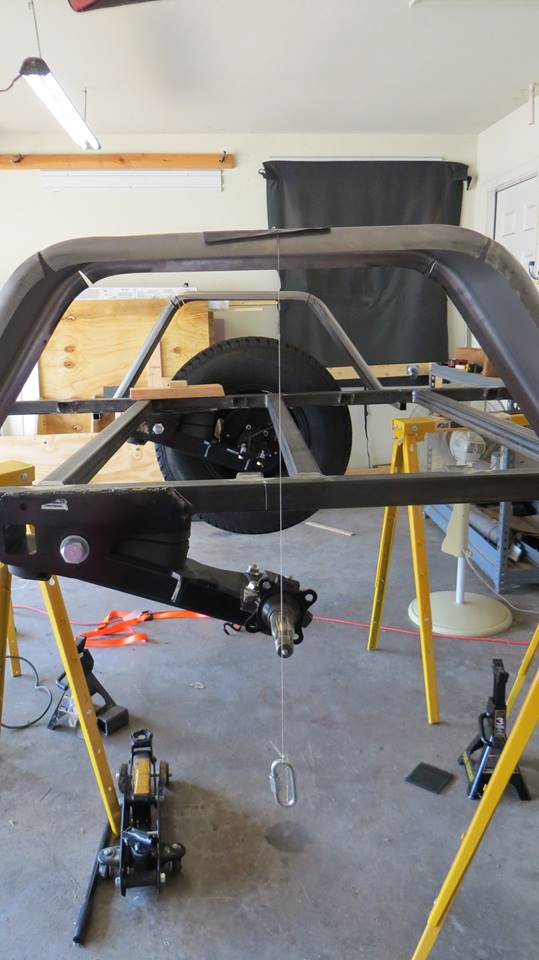

Few more pics
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Fri Sep 09, 2016 7:53 pm

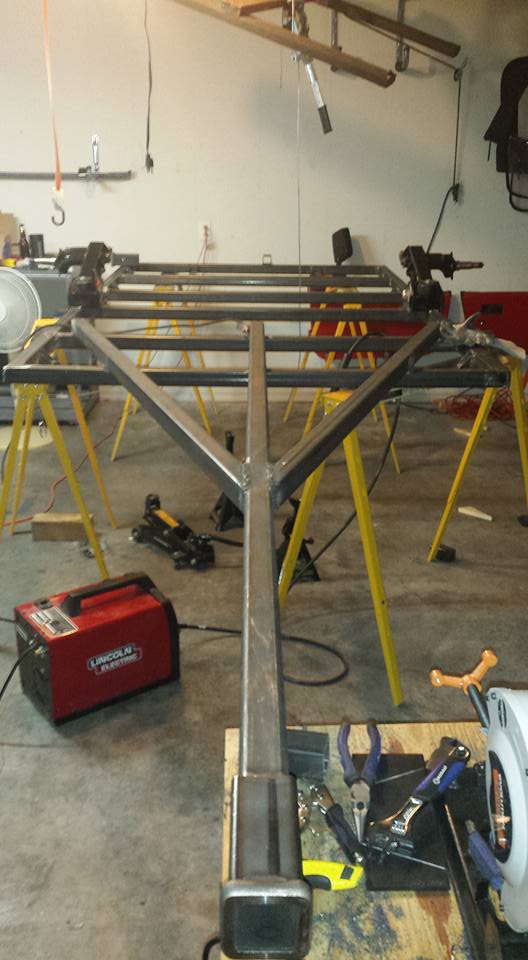

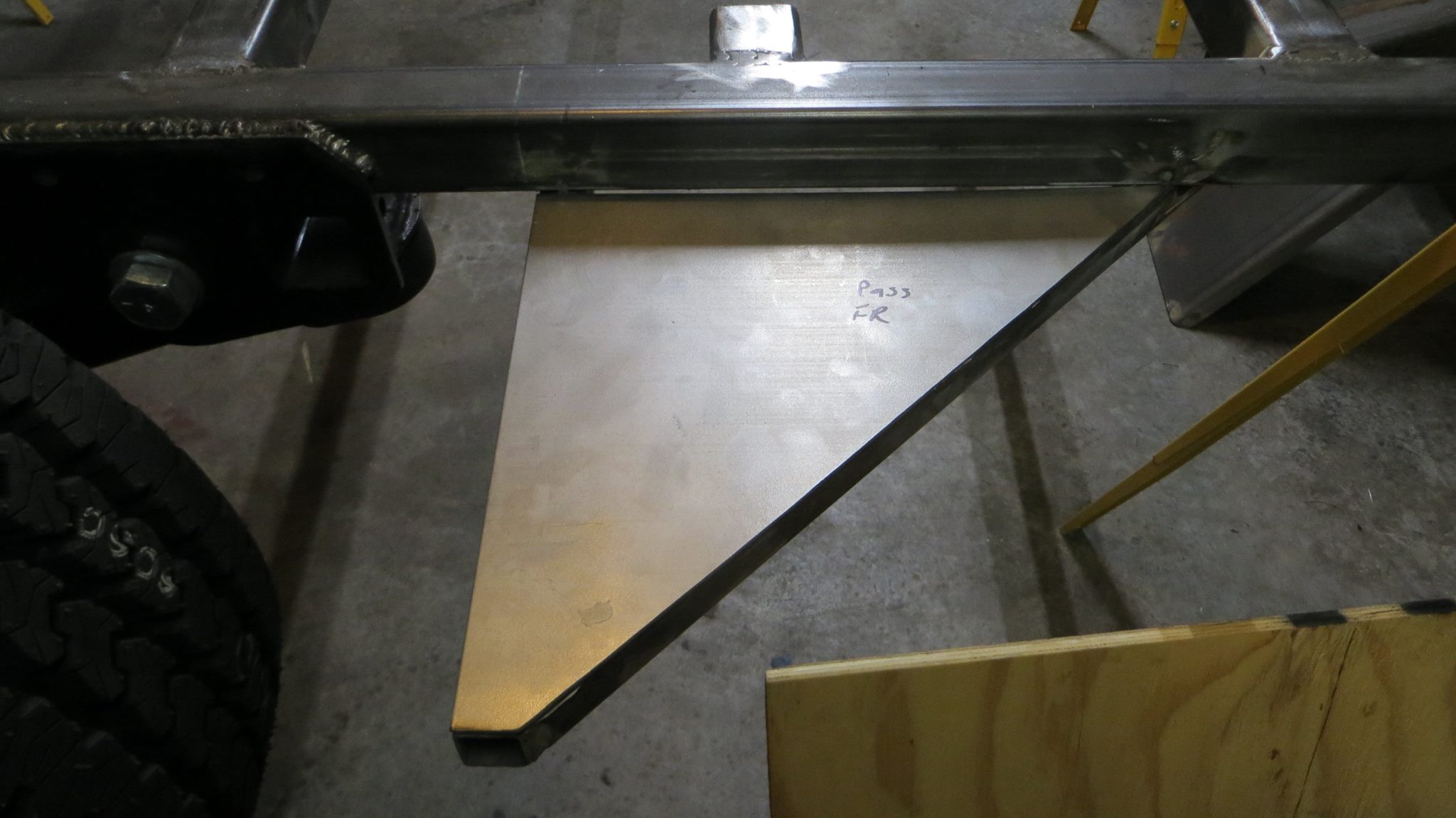

Few more
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Fri Sep 09, 2016 7:54 pm

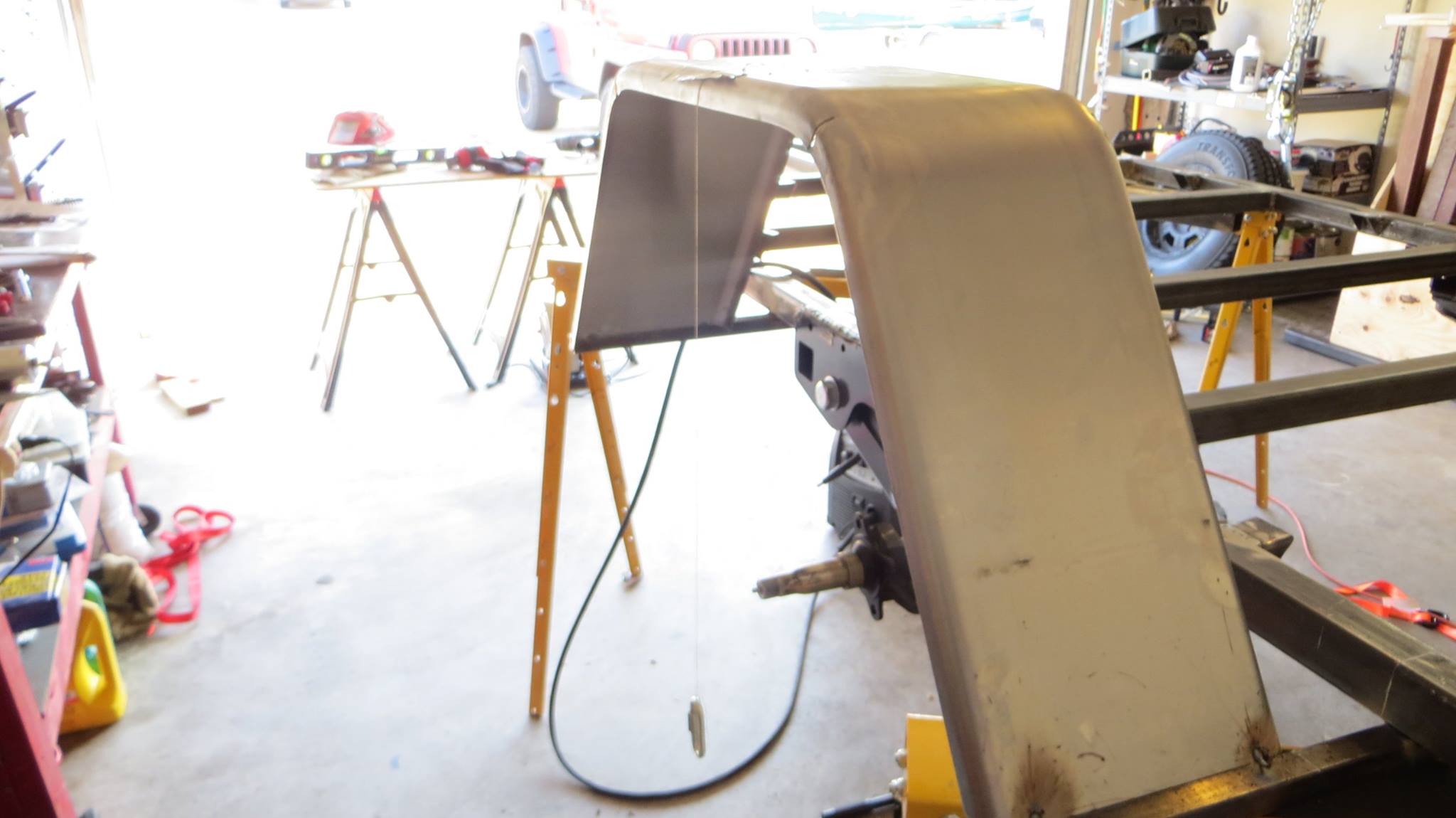

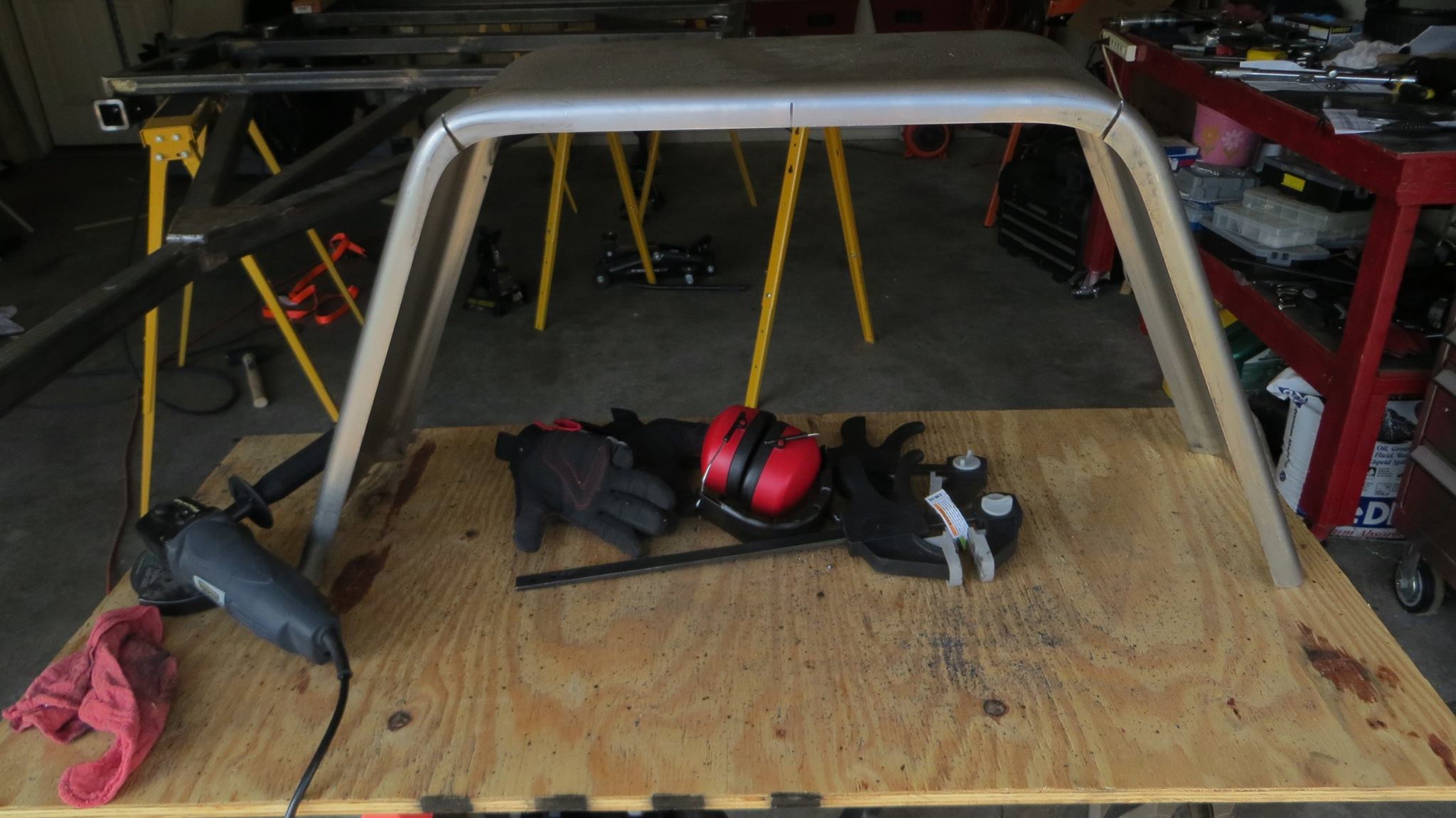

Fender Mock up
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby ELM » Sat Sep 10, 2016 9:44 am

Looking good so far. That's a very strong fame you have there.
My Build journal. viewtopic.php?f=50&t=65395
User avatar
ELM
Teardrop Master

Posts: 274
Images: 176
Joined: Thu Nov 26, 2015 5:49 am
Location: Sutter Creek CA
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby retep » Sat Sep 10, 2016 9:58 am

Very very nice welds. you have an outstanding frame. Well done. Cant wait to see your progress.

Cheers Peter
retep
Teardrop Master

Posts: 106
Joined: Wed Mar 16, 2016 3:55 pm
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Sat Sep 10, 2016 12:35 pm

Thanks! It might be a little bit of overkill but it is what I was comfortable with. I am hoping for long use out of the trailer.
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Sat Sep 10, 2016 12:37 pm

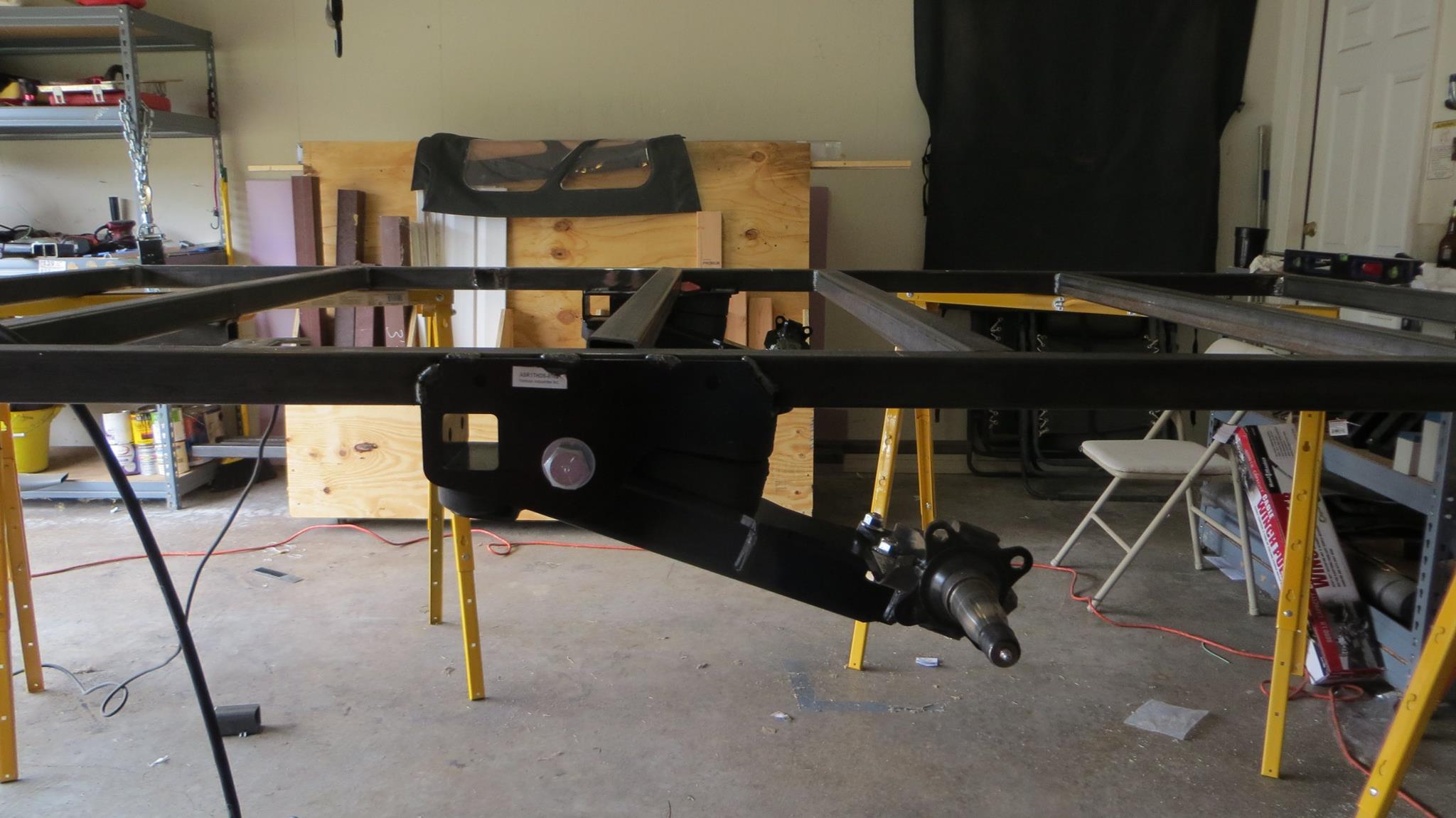

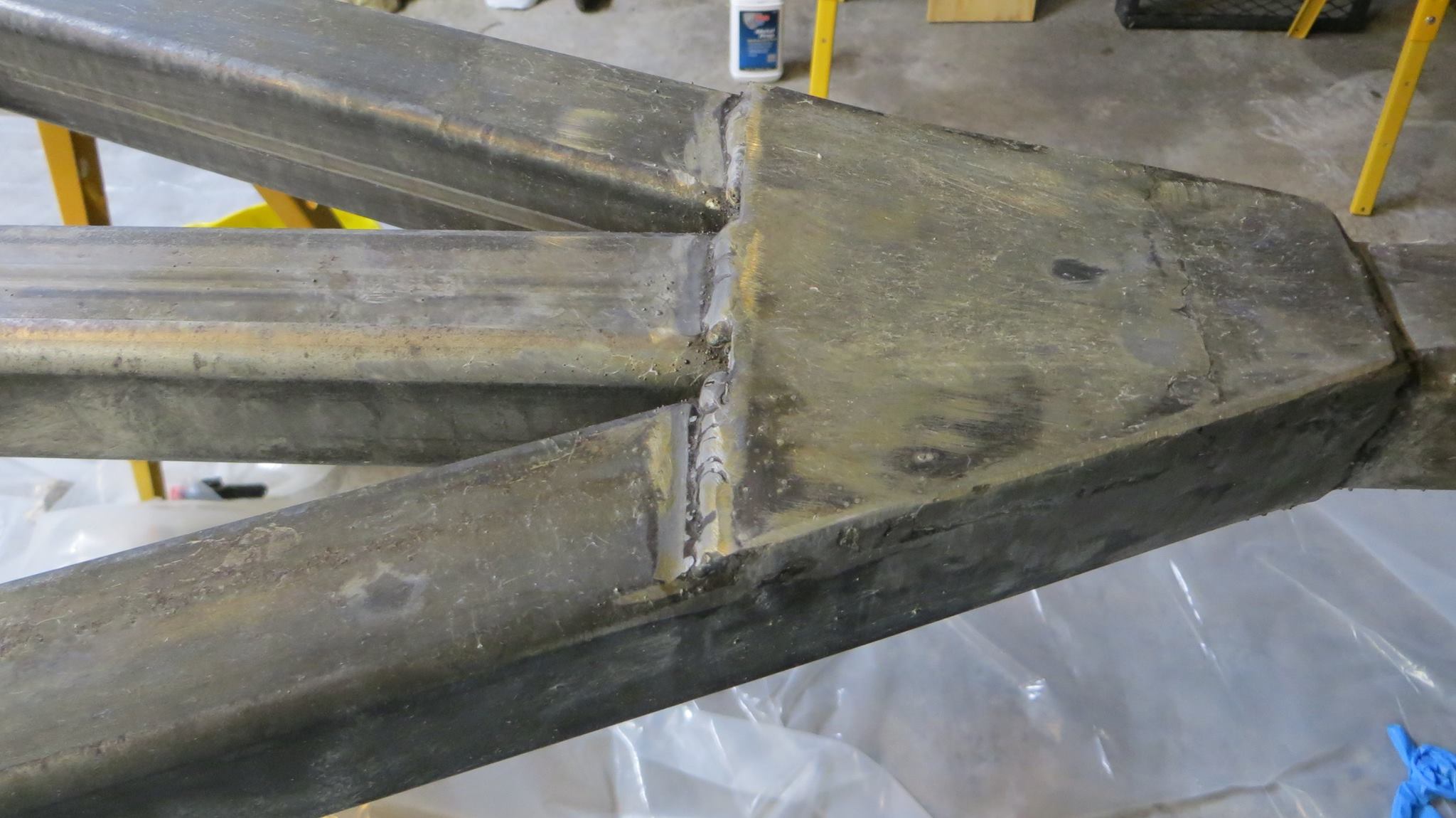

Little more work on the tongue
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby aggie79 » Mon Sep 12, 2016 9:32 am

Your frame looks fantastic! I really like the Timbren suspension. :applause: :thumbsup: :applause:
Tom (& Linda)
For build info on our former Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 5405
Images: 686
Joined: Tue Aug 07, 2007 5:42 pm
Location: Watauga, Texas
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby dirtsailor2003 » Mon Sep 12, 2016 2:11 pm

Looks great! I'll be hanging around to watch.
User avatar
dirtsailor2003
The 300 Club

Posts: 459
Images: 0
Joined: Wed Apr 17, 2013 3:15 pm
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Mon Sep 26, 2016 5:00 pm

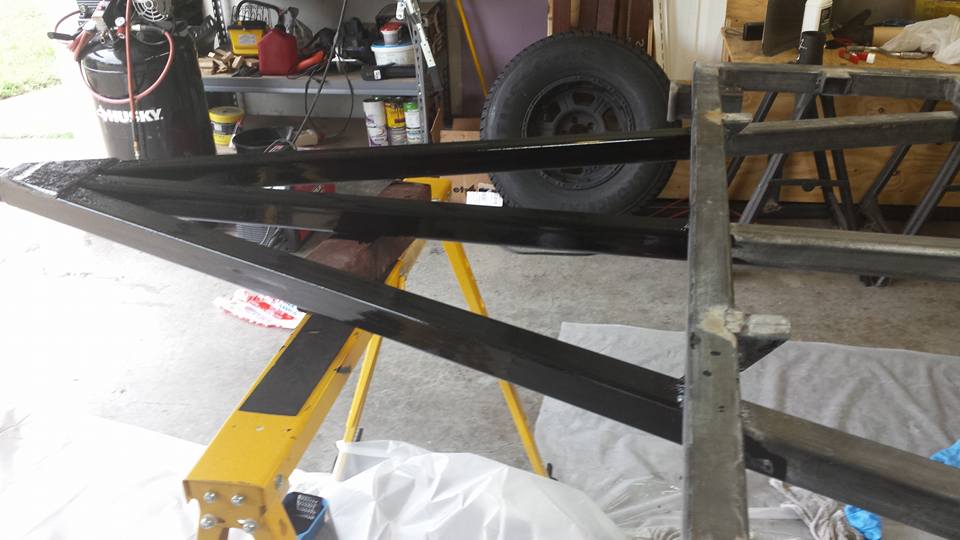

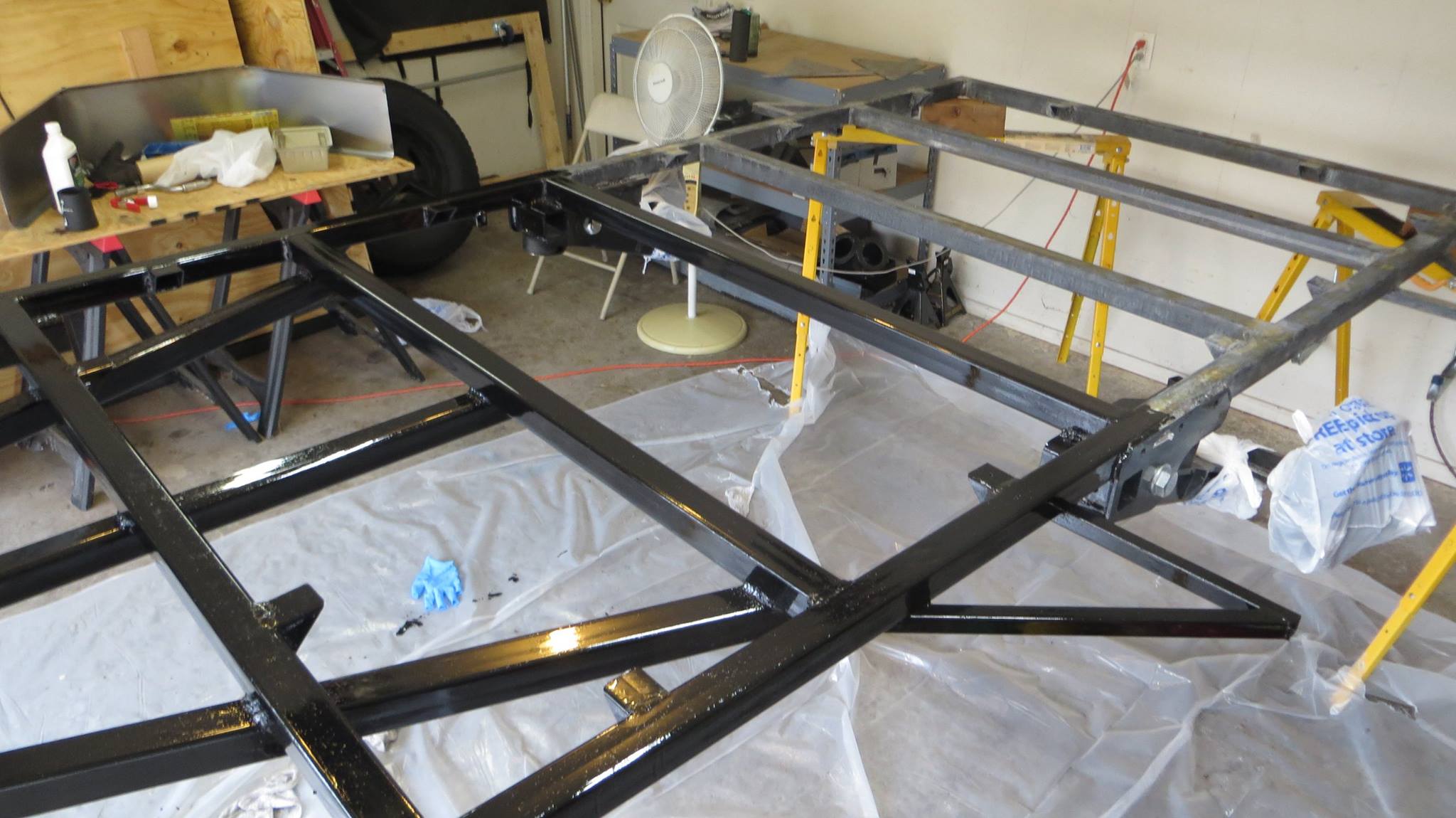

Hit the trailer with degreaser, metal prep and POR-15 this weekend. Still need to do the fenders and steps. Second coat everything with POR-15 and then spray the trailer with raptor bed liner.
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Mon Sep 26, 2016 5:02 pm

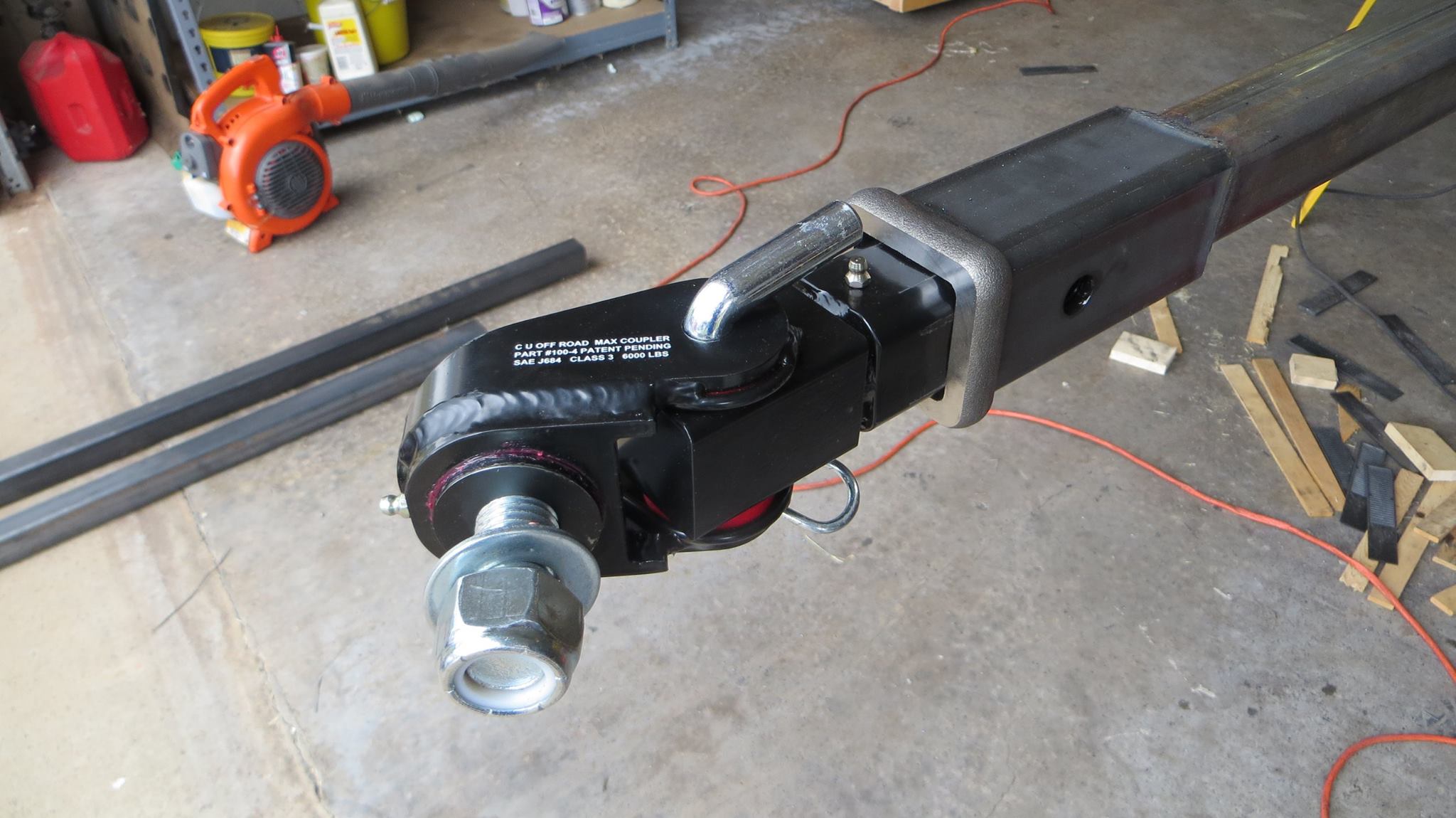

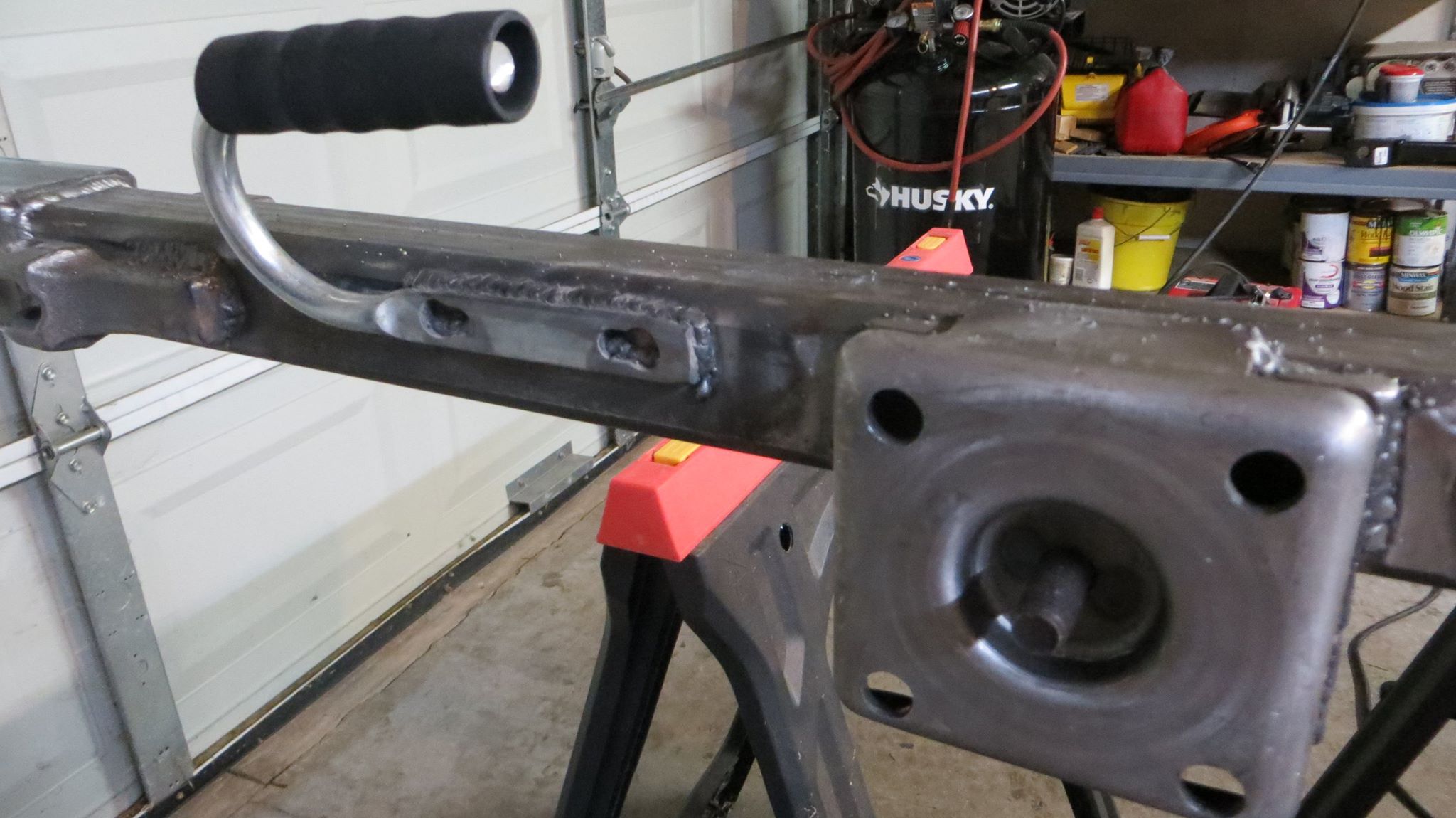

Welded the handle and jack
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Mon Sep 26, 2016 5:04 pm

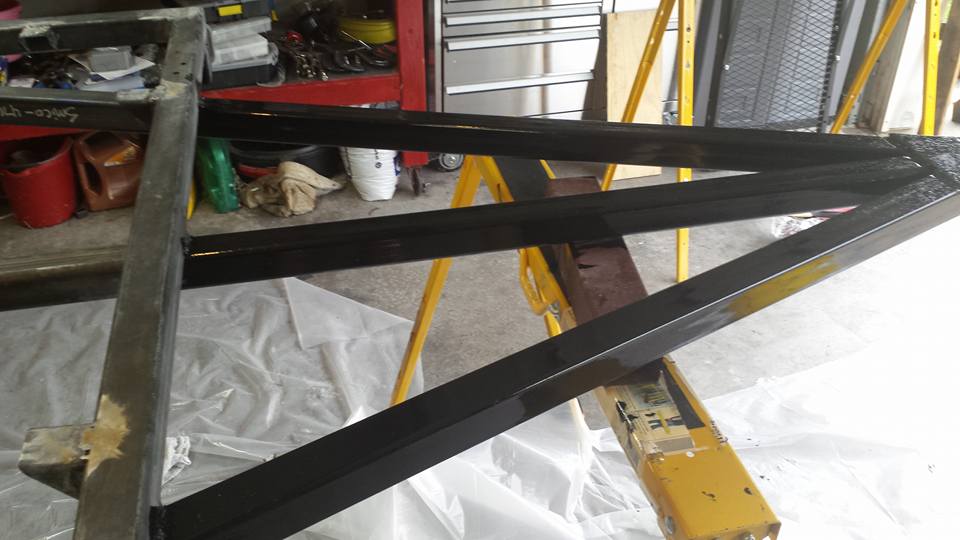

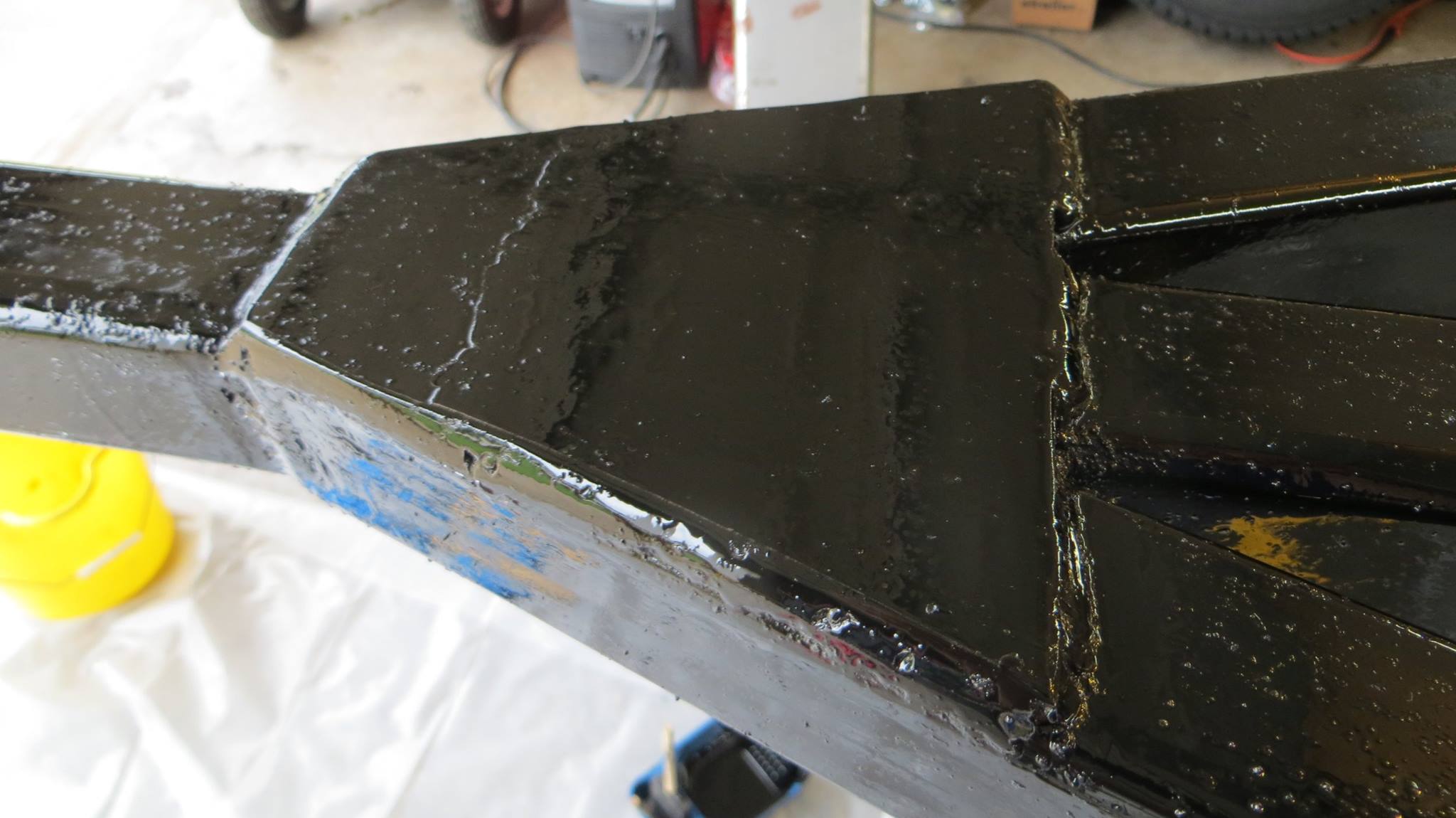

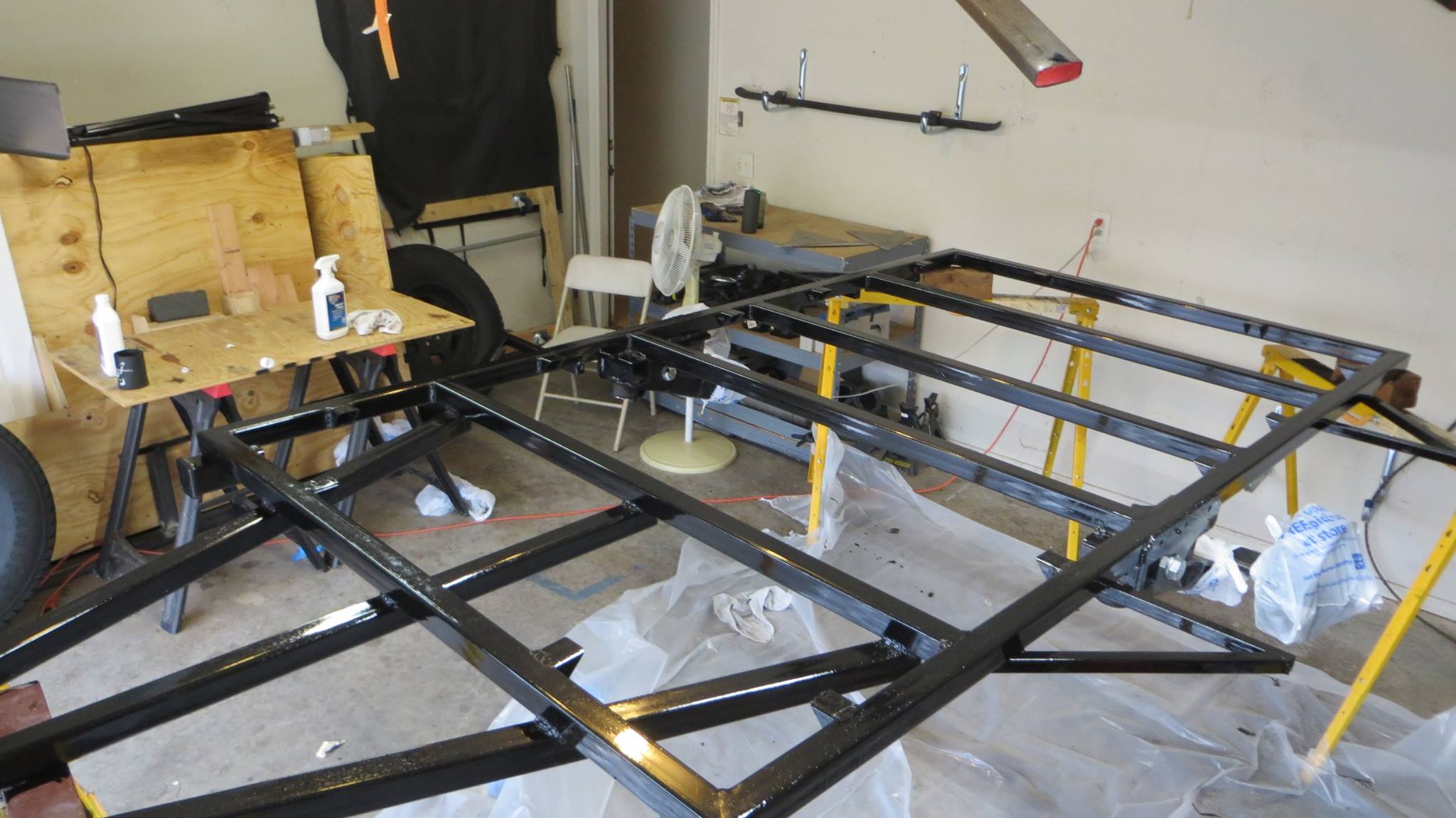

Halfway done and first coat
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Mon Sep 26, 2016 5:05 pm

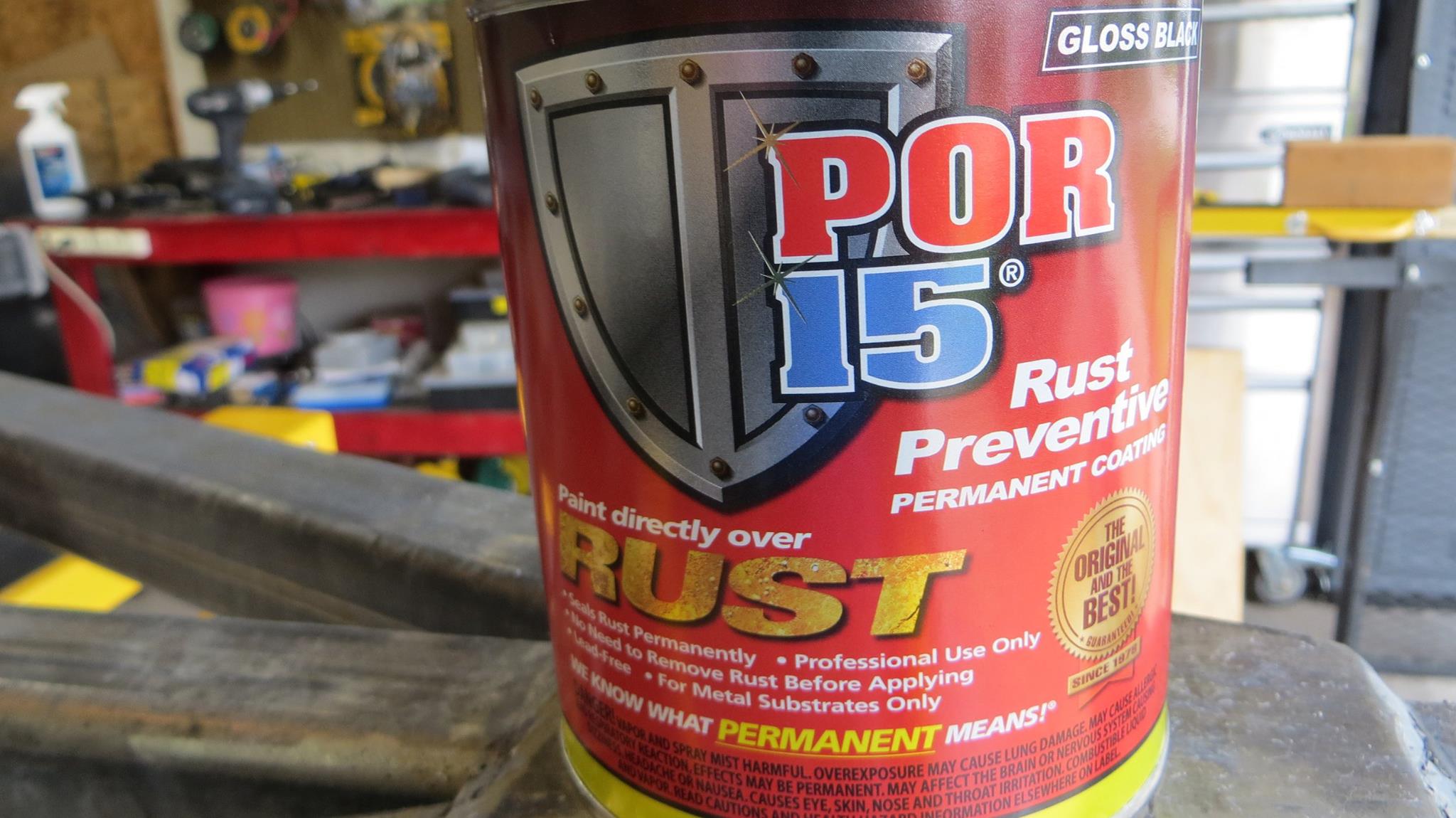

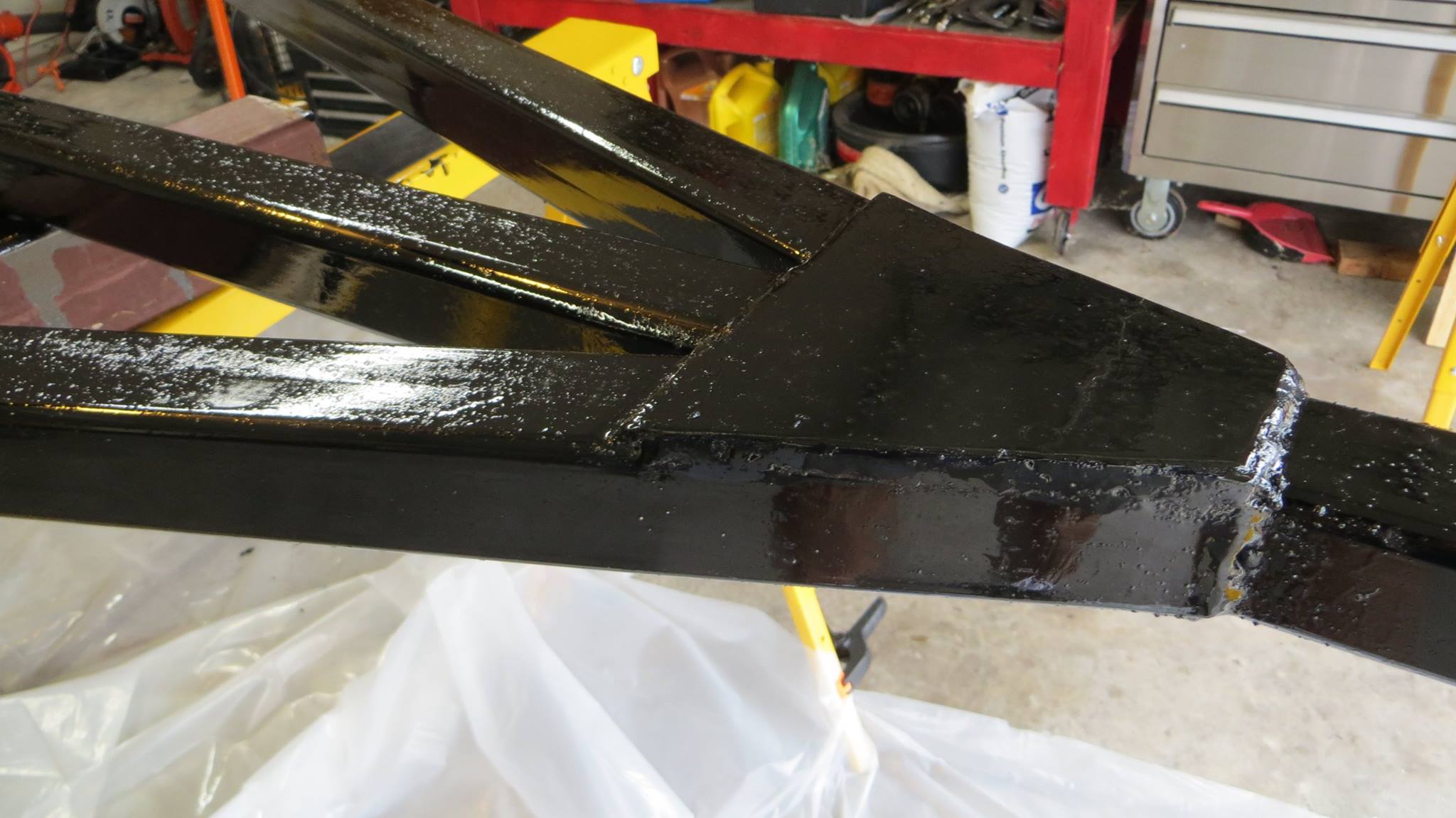

POR-15 seems to be good stuff!
Attachments
User avatar
DWT77
The 300 Club

Posts: 341
Images: 473
Joined: Thu Apr 07, 2016 5:52 pm
Location: Oklahoma
Top

Re: Off Road Grumman 2 (5x5x10) Build

Postby DWT77 » Tue Sep 27, 2016 9:28 pm

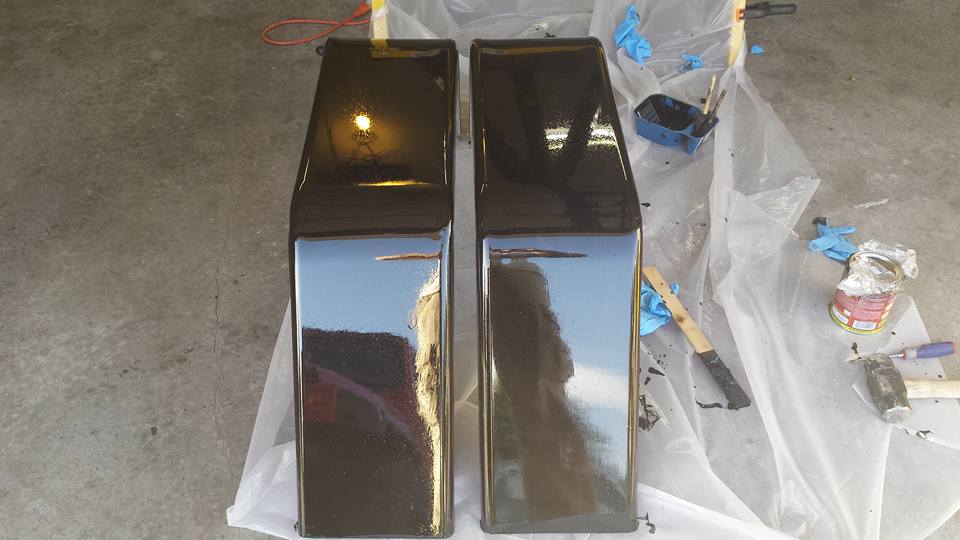

Got some work done on the fenders tonight
