Re: Bread-loaf build thread

Postby Fred Trout » Mon Jul 13, 2015 7:29 pm

Thanks, Mike.

OK, thought I would show how I deal with two different 'glues' on this side canvas application. Gripper for flashing & canvas, TB II for foam & canvas.

- First I stick push pins on the upper edge foam, roll back the canvas, exposing the alcohol cleaned flashing
- apply the Gripper onto the flashing instead of TB II .
- Flip the canvas down the side & position it
- Massage the canvas onto the wet Gripper paint,
- Wait a while for the Gripper to dry.

Then I apply the TB II as usual, do the edges, trim, fold over, etc., as usual.

OK.... time to go put the TB II on - wish me luck !!

EDIT: Bah, thunderstorm stole my light - to be continued tomorrow...

Pix:
Attachments

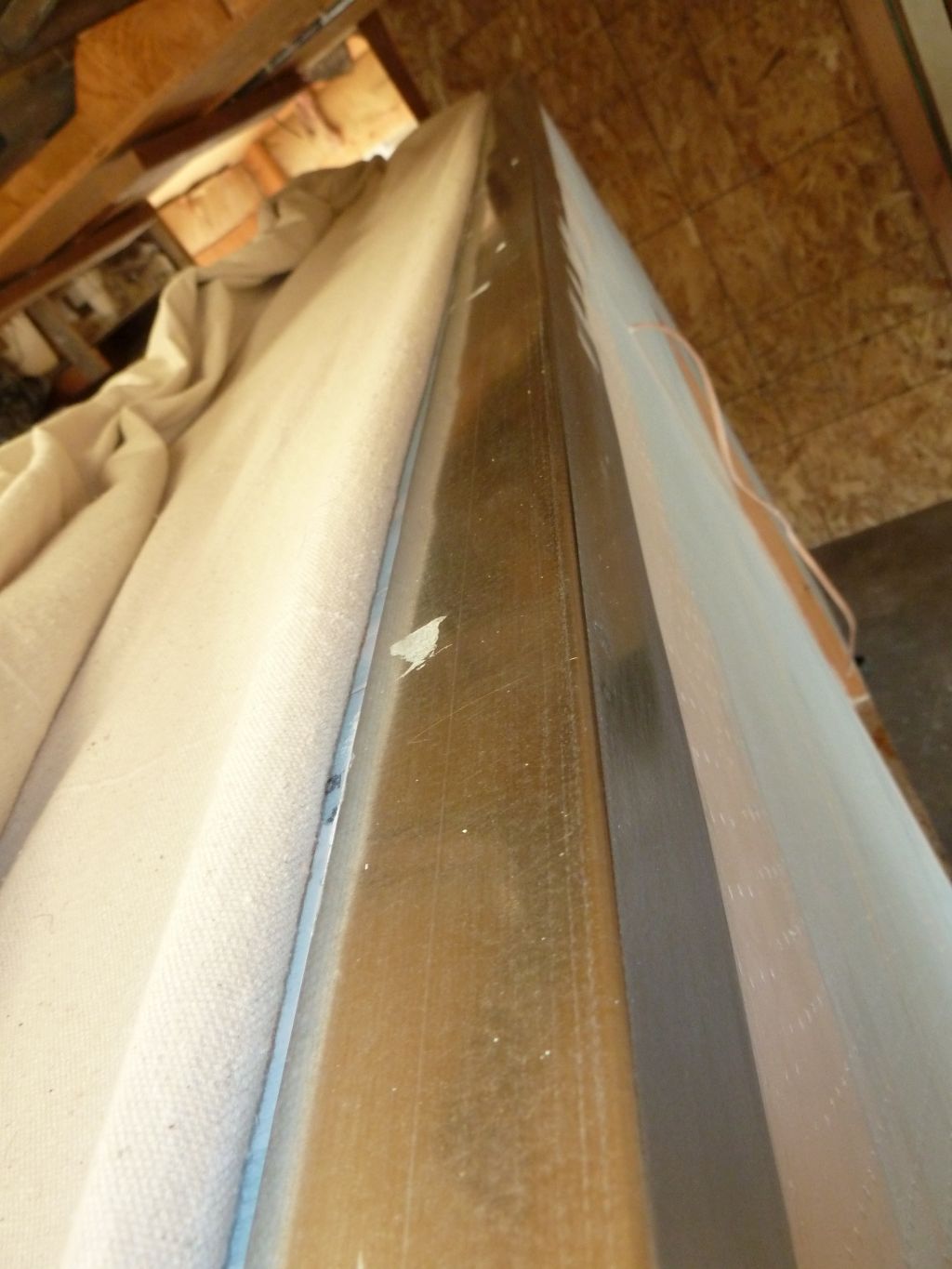

Canvas right 1.jpg
The flashing problem exposed !!!!!
Canvas right 1.jpg (153.99 KiB) Viewed 22708 times
Canvas right 2.jpg

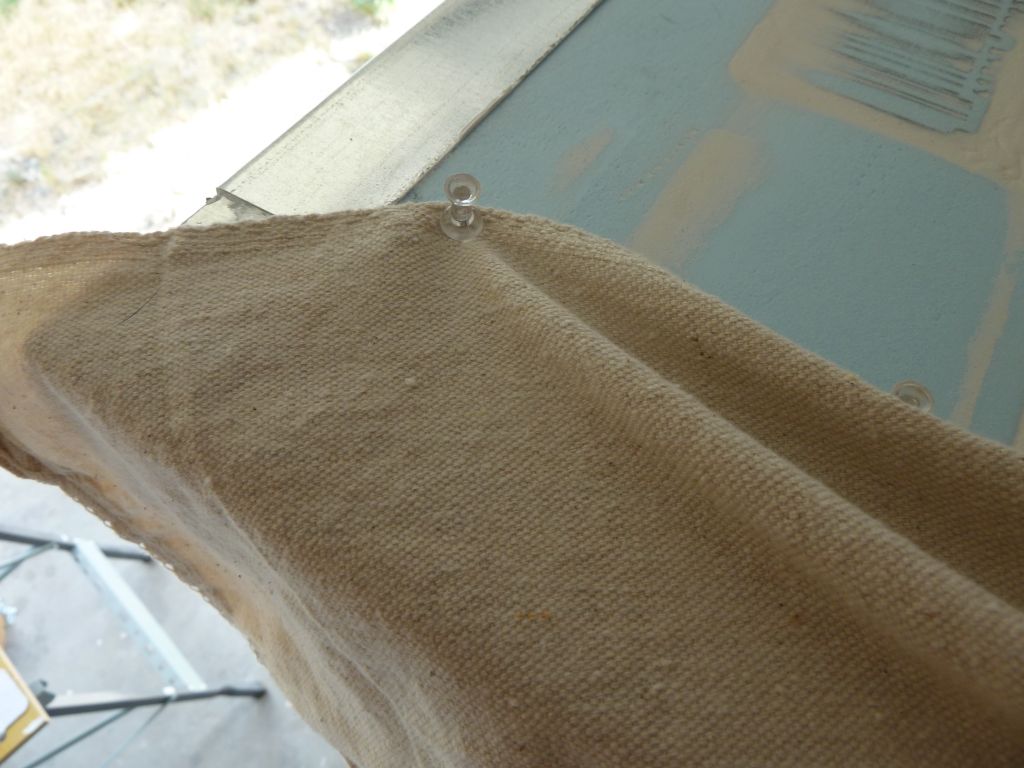

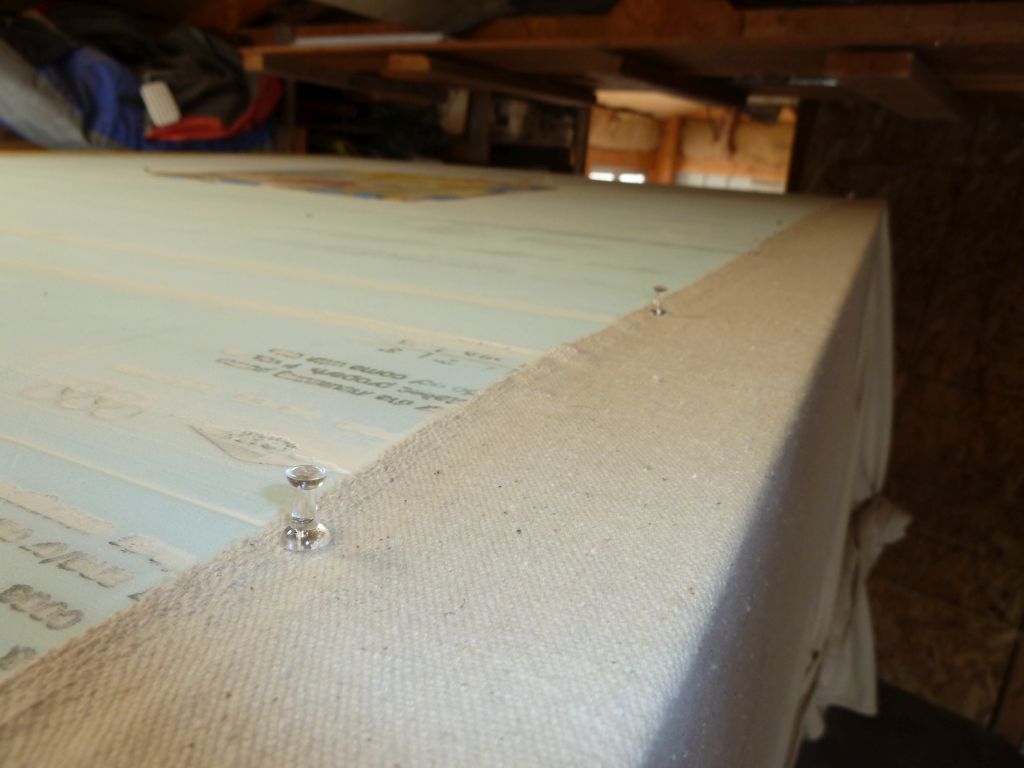

Pinning
Canvas right 2.jpg (124.1 KiB) Viewed 22708 times
Canvas right 3.jpg
Canvas massaged into Gripper coated flashing
Canvas right 3.jpg (94.44 KiB) Viewed 22708 times
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana

Re: Bread-loaf build thread

Postby GPW » Tue Jul 14, 2015 9:39 am

Hey now !!! Looking Good !!! :thumbsup: 8) :dancing
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14915
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans

Re: Bread-loaf build thread

Postby Fred Trout » Tue Jul 14, 2015 2:13 pm

Thanks, GPW, making progress this week.

Now I have the rest of the right side done including all trimming, edges, tucking, bobbing & weaving :R :R OK, I do have some more trim work to do with the unraveled thread (seems to work better once glue is dry).

Lots of pix, so two post since only 3 attachments per post (weird rule):
Attachments

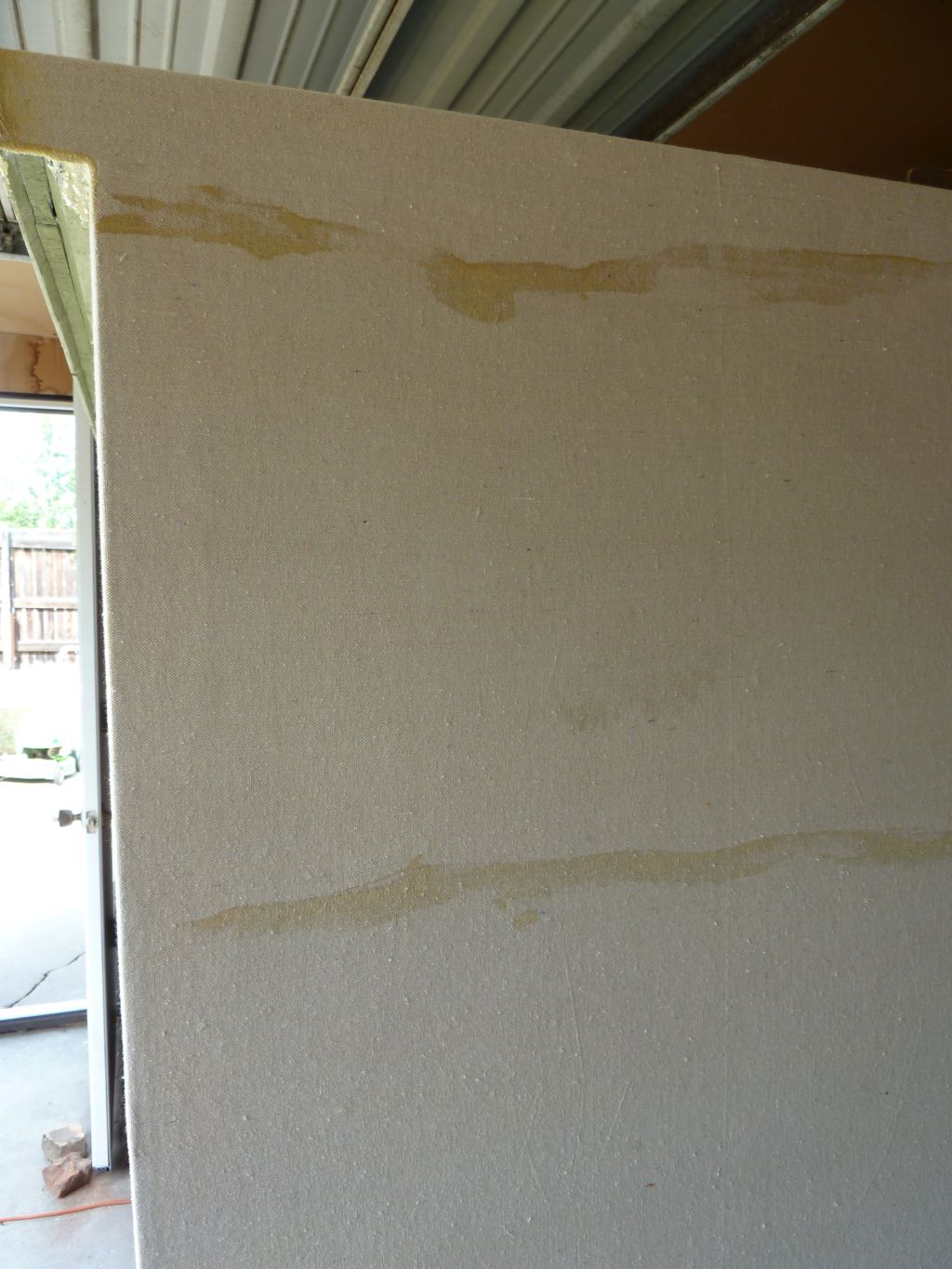

Canvas right 5.jpg
Shows the glue application split into two sections, 2nd done
Canvas right 5.jpg (197.27 KiB) Viewed 22681 times
Canvas right 6.jpg
second glue section about to be applied
Canvas right 6.jpg (156.91 KiB) Viewed 22681 times

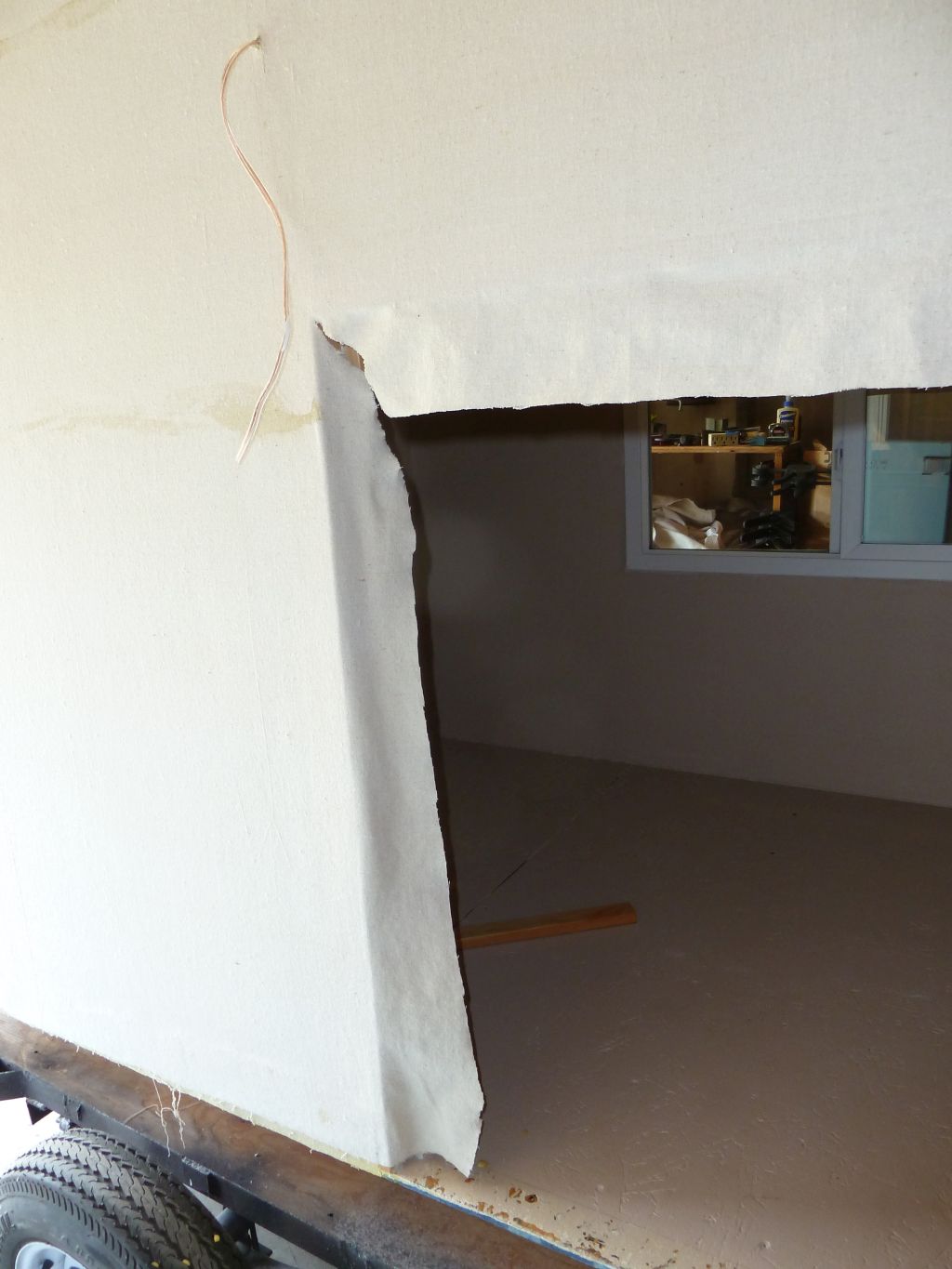

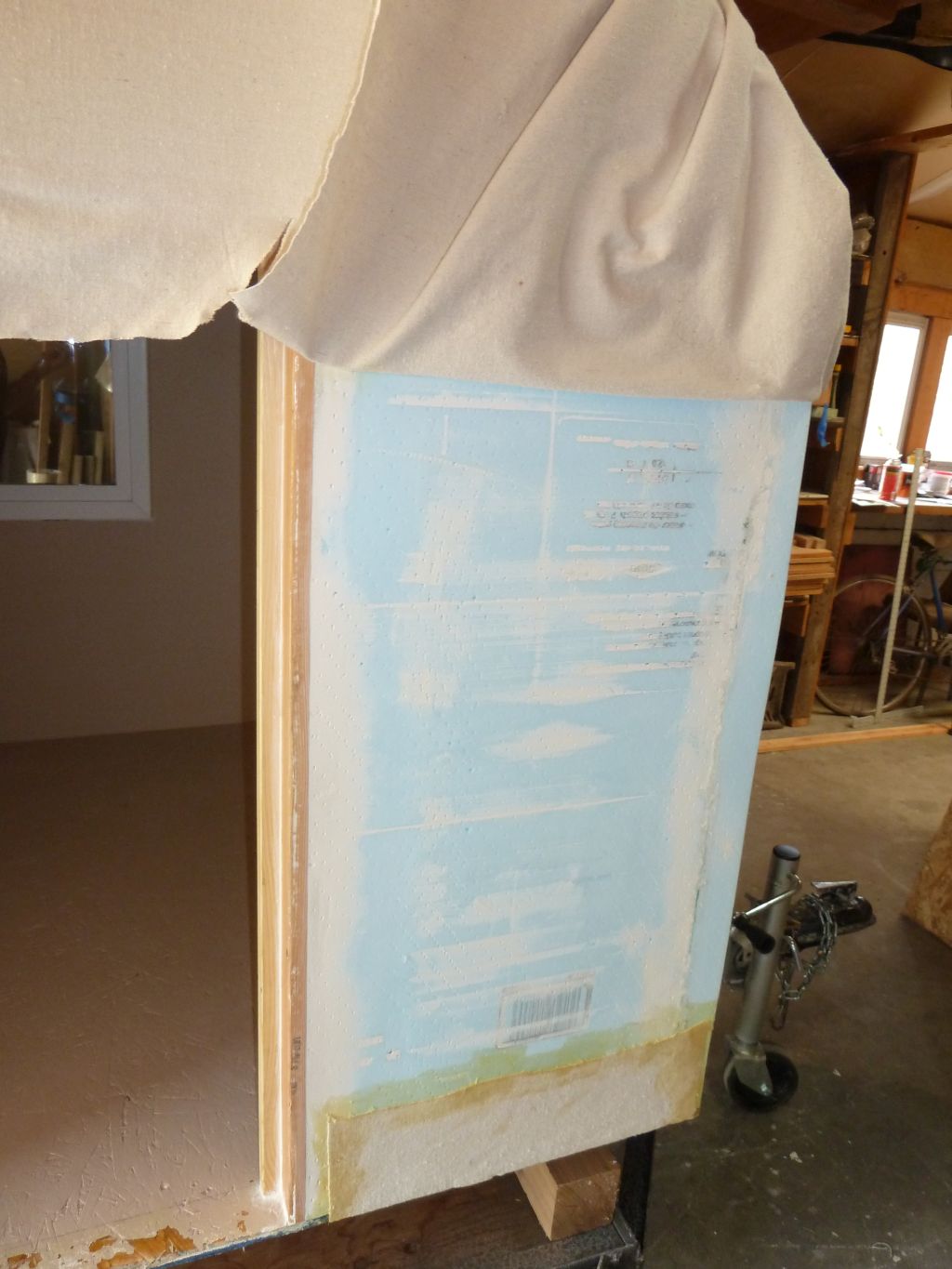

Canvas right 7.jpg
Door jamb overlap started
Canvas right 7.jpg (136.22 KiB) Viewed 22681 times
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby Fred Trout » Tue Jul 14, 2015 2:17 pm

Second half of right side canvas application.

pix:
Attachments

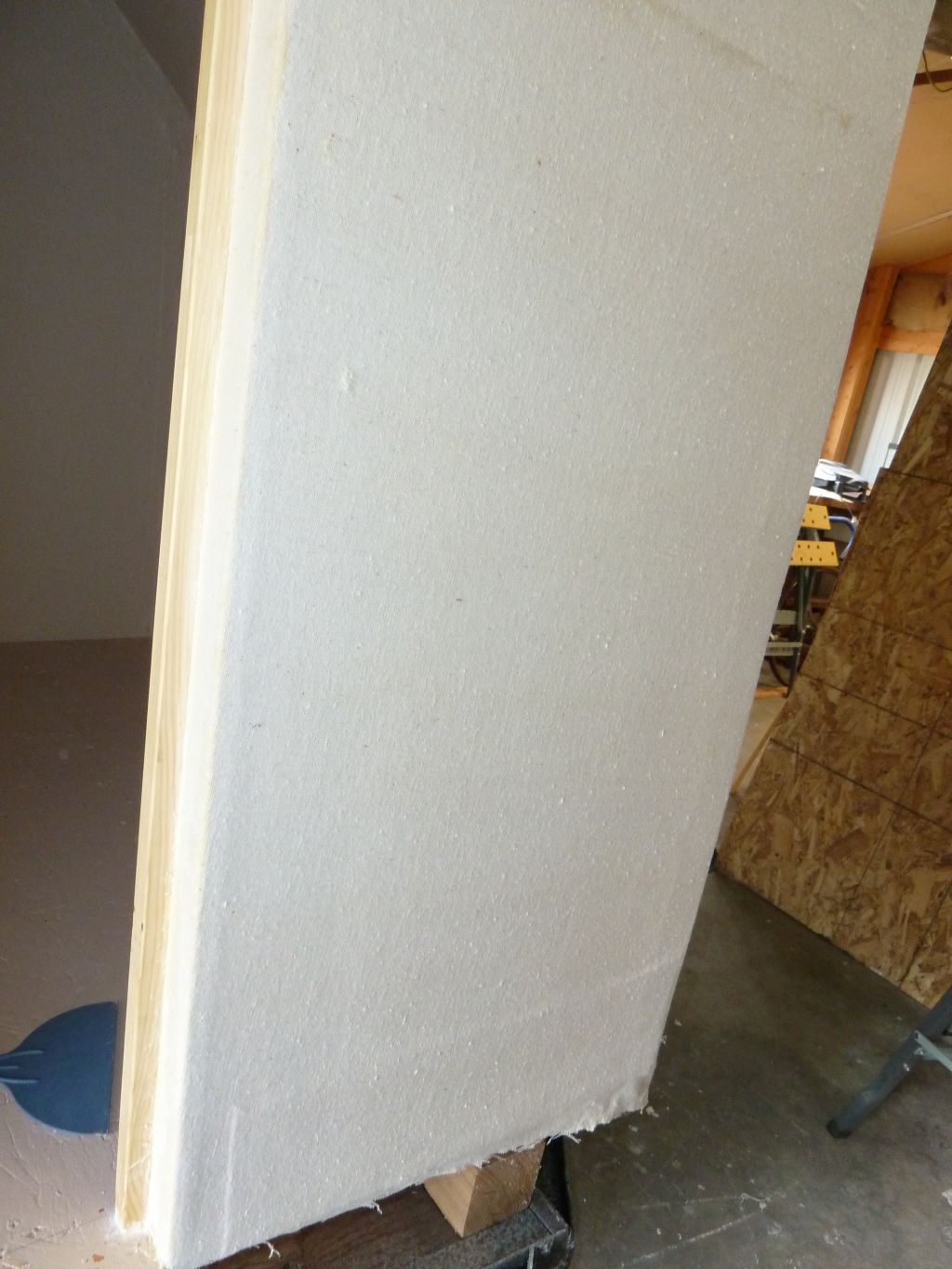

Canvas right 8.jpg
door jamb done
Canvas right 8.jpg (108.15 KiB) Viewed 22678 times
Canvas right 9.jpg
bottom section done
Canvas right 9.jpg (175.19 KiB) Viewed 22678 times

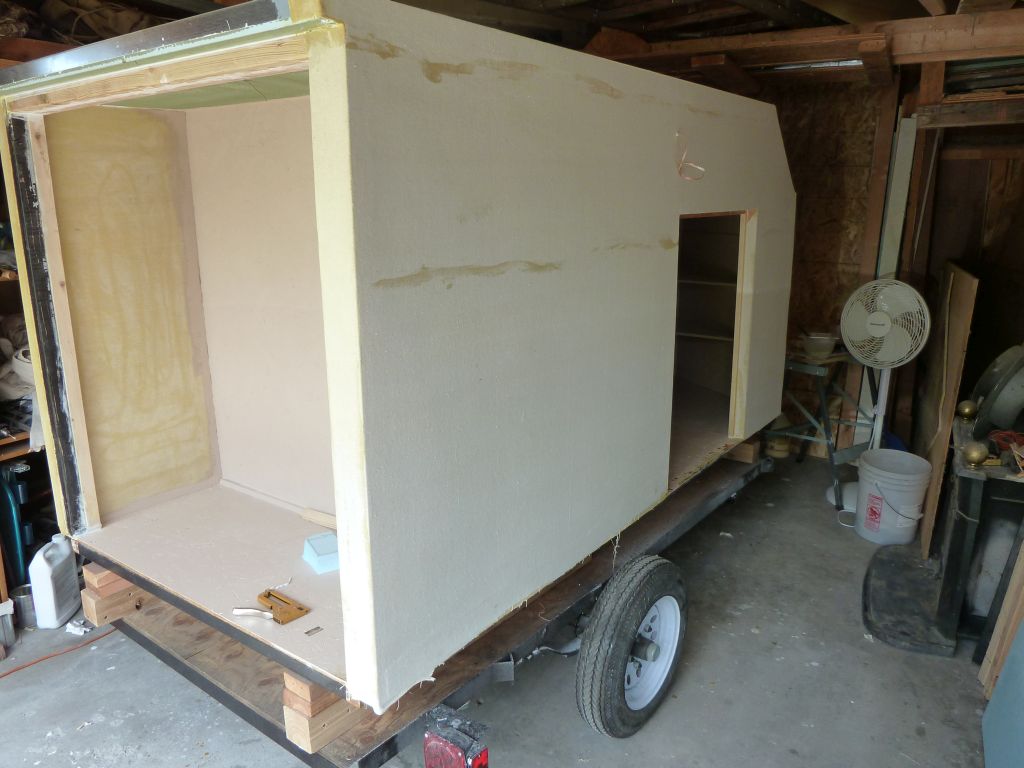

Canvas right 9 done.jpg
right side all done
Canvas right 9 done.jpg (119.25 KiB) Viewed 22678 times
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby Fred Trout » Tue Jul 14, 2015 5:20 pm

Finished all the vertical (sides) surfaces today. Tomorrow I do the roof & top of front angle with one piece of canvas if all goes well. Any time left over will be working on all doors.

And last one for today:
Attachments

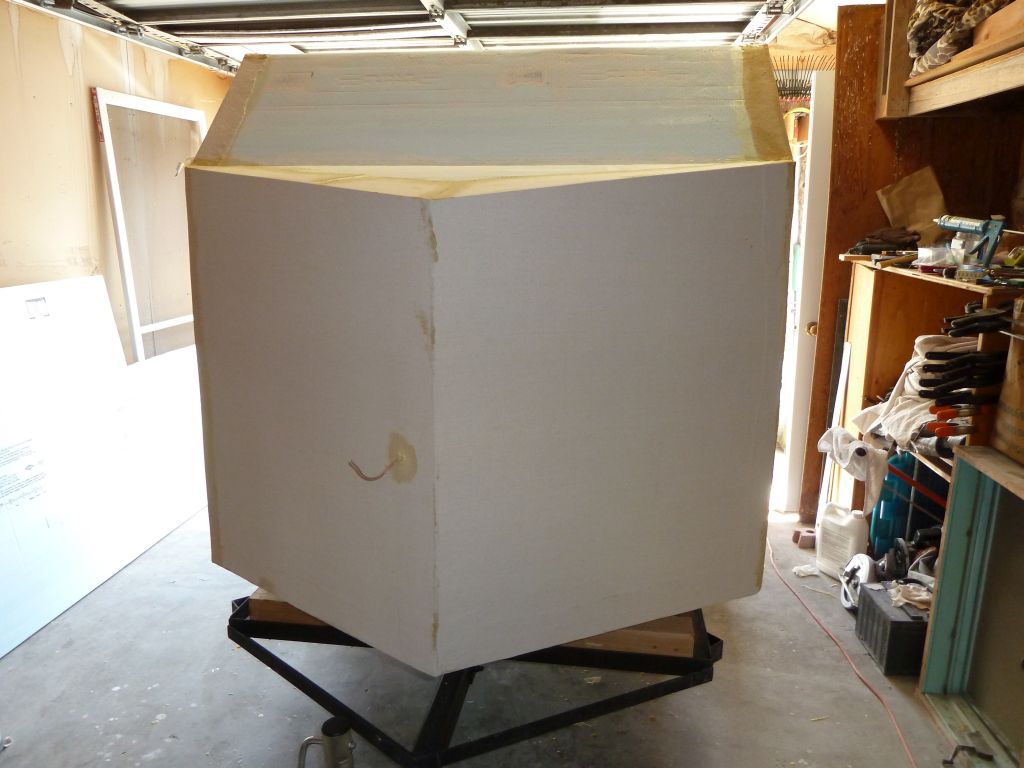

Canvas front 1.jpg
Front verticals canvassed
Canvas front 1.jpg (118.26 KiB) Viewed 22668 times
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby KCStudly » Tue Jul 14, 2015 8:03 pm

Looks great!!! :thumbsup:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 9633
Images: 8169
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: Bread-loaf build thread

Postby dales133 » Tue Jul 14, 2015 9:07 pm

Does look good.nice and smooth
User avatar
dales133
4000 Club
4000 Club

Posts: 4605
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

Re: Bread-loaf build thread

Postby Fred Trout » Tue Jul 14, 2015 11:32 pm

Thanks for the comments. I am mostly pleased with the dry-wall fairing techniques but there are many places where my screwups still exceed the forgiving nature of a foamie :cry: Still early days and I have already noticed a couple of fingertip sized bubbles. Those should iron out hopefully.

The back door support posts look like crap atm and will need to work on the canvas overlaps but if the effort is made, should be able to get closer to approach a fiberglass smooth finish. As long as a quick rinse with a hose will remove the road dust, I will be satisfied even if it isn't all shiny-pretty.
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby Fred Trout » Wed Jul 15, 2015 6:49 pm

Finished the roof canvassing other than the fan cutout edge overlap and back overhang; that's going to take some time & patience so will save that for tomorrow.

Will be sanding and fairing out all the canvas edges that show so well on these photos. Hopefully not too many bubbles to deal with.

Pix:
Attachments

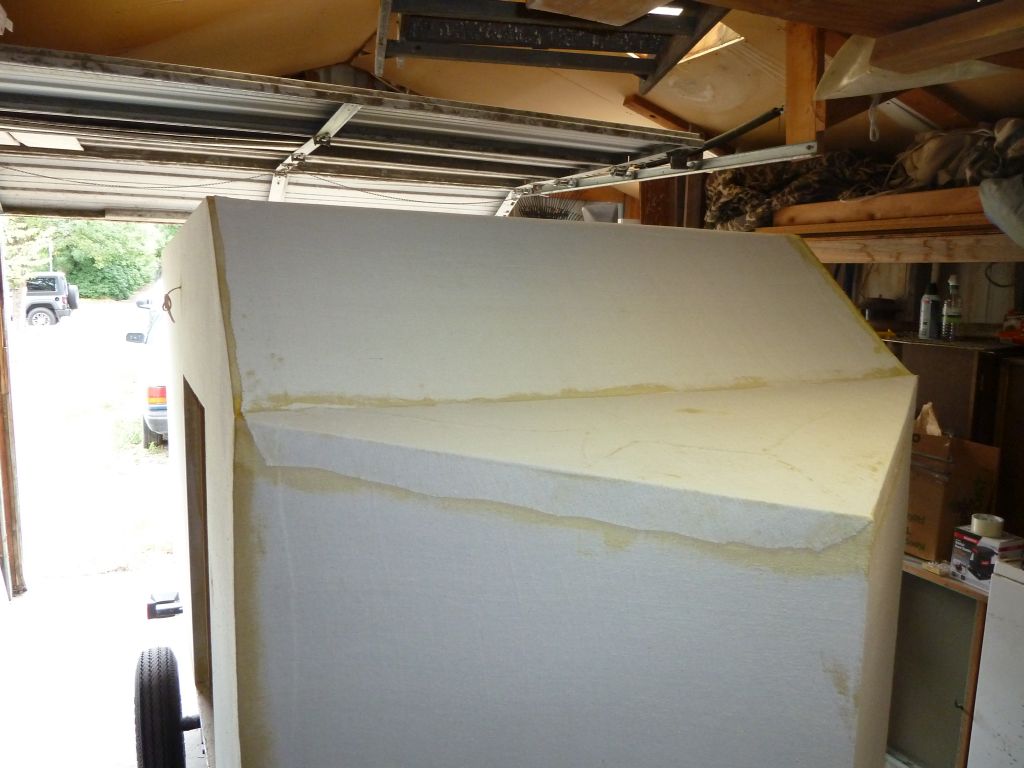

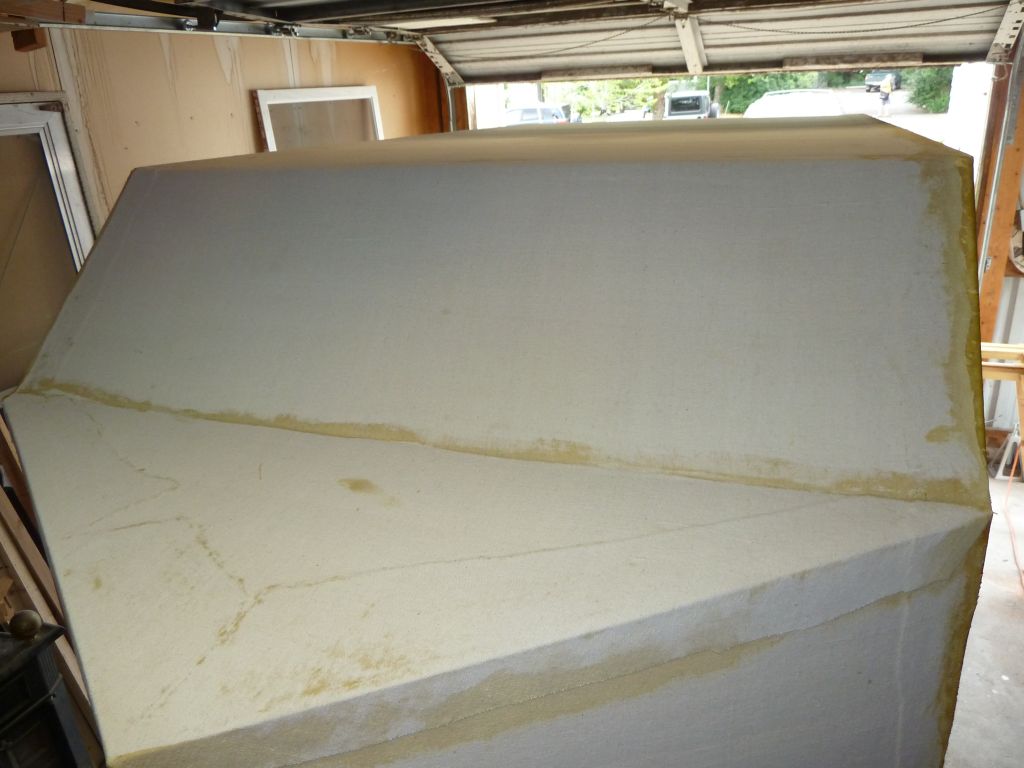

Canvas top 1.jpg
Canvas top 1.jpg (119.19 KiB) Viewed 22615 times
Canvas top 3.jpg
Canvas top 3.jpg (107.52 KiB) Viewed 22615 times
Canvas top 4.jpg
view from the back - the "lines" are stop-start section glue edges - you can see the fan cutout about 2/3 the way up
Canvas top 4.jpg (90.26 KiB) Viewed 22615 times
Last edited by Fred Trout on Wed Jul 15, 2015 6:56 pm, edited 1 time in total.
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby Fred Trout » Wed Jul 15, 2015 6:53 pm

Work on door lockset cutout done - tested out OK; will canvas door in a few minutes if I have enough light.

Canvas applied to both sides; one edge glued, the other will wait for tomorrow.

pix:
Attachments

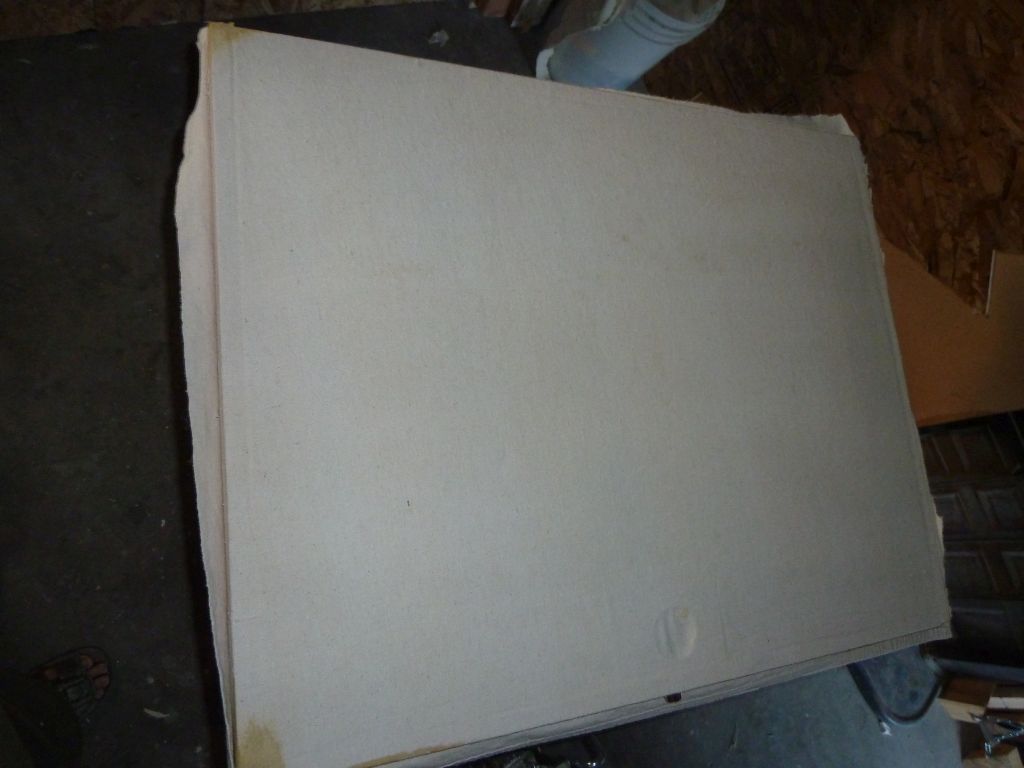

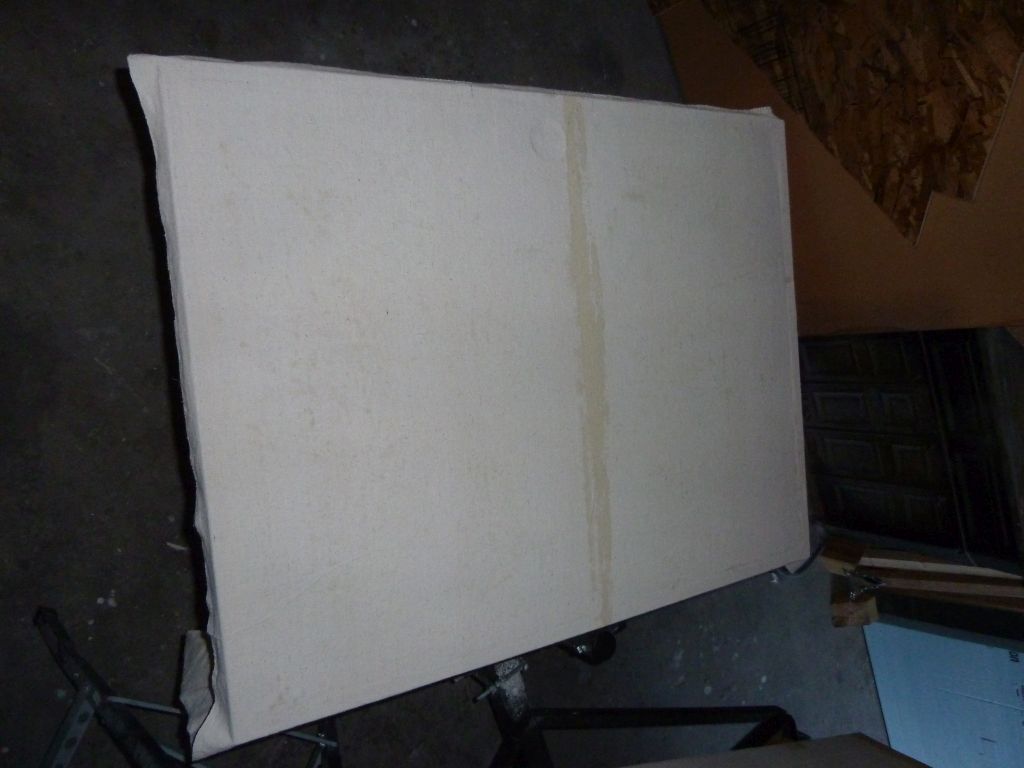

Door canvas 1.jpg
Door canvas 1.jpg (92.07 KiB) Viewed 22594 times
Door canvas 2.jpg
Door canvas 2.jpg (89.16 KiB) Viewed 22594 times

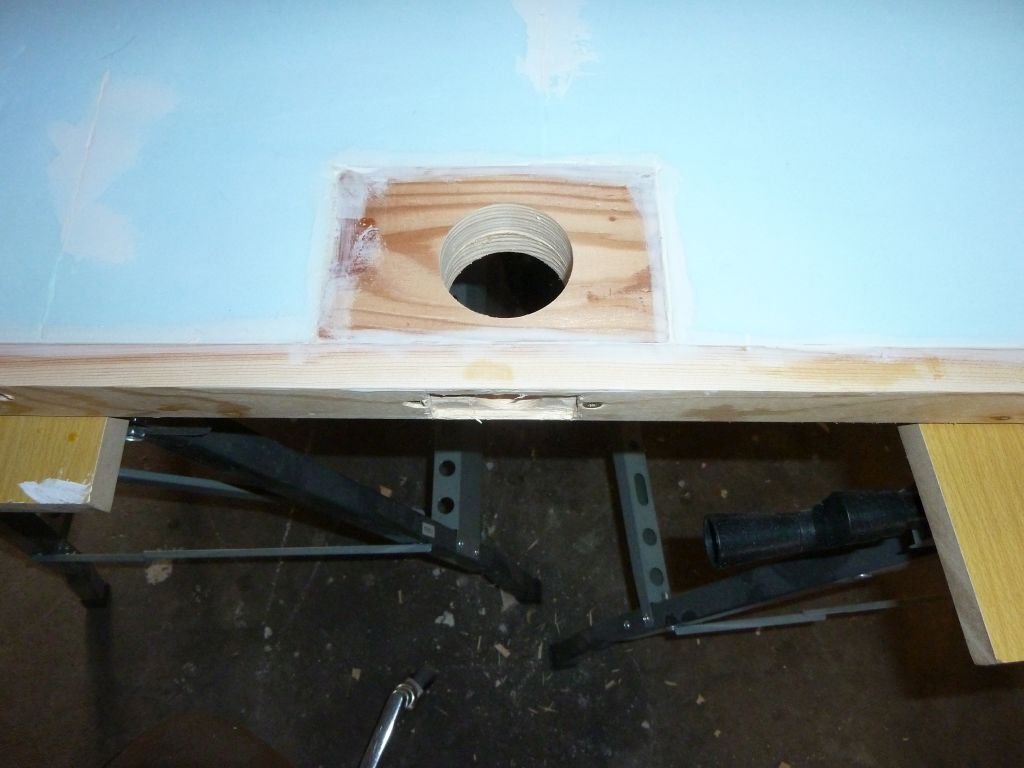

Door lock cut-outs.jpg
Door lock cut-outs.jpg (99.27 KiB) Viewed 22615 times
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby KCStudly » Wed Jul 15, 2015 10:51 pm

Keep on rollin'. You're getting there! :thumbsup:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 9633
Images: 8169
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: Bread-loaf build thread

Postby GPW » Thu Jul 16, 2015 6:19 am

Covering is Fun eh !!!! :thumbsup: 8)
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14915
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top

Re: Bread-loaf build thread

Postby dales133 » Thu Jul 16, 2015 12:16 pm

Nice work
User avatar
dales133
4000 Club
4000 Club

Posts: 4605
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

Re: Bread-loaf build thread

Postby Fred Trout » Thu Jul 16, 2015 2:40 pm

Thanks for all the comments. GPW, it's fun until the bubbles pop or the little details get messed up (corner overlaps come to mind). Then it's just tedious and sometimes frustrating.

Completed trimming and gluing the door edges. Decided to trim the edges so the overlaps from the two sides did not overlap each other (split down the middle of the edge - was time consuming). That might have made the door fit more tight than needed. Anyway, it looks pretty good with plenty of room for paint & gasket. The door will stick out a bit to give the 1/8" gasket some room and since it is now slightly deeper than 1.5 inch (canvas x 2). There is a very slight warp in the top right corner (~ 1/16" - 1/8") - might leak because of it if I can not adjust the fit well.

Found some bendable white vinyl "L" molding that I plan to use as a over door/window drip rail. Will add a pic of it later.

Pix:
Attachments

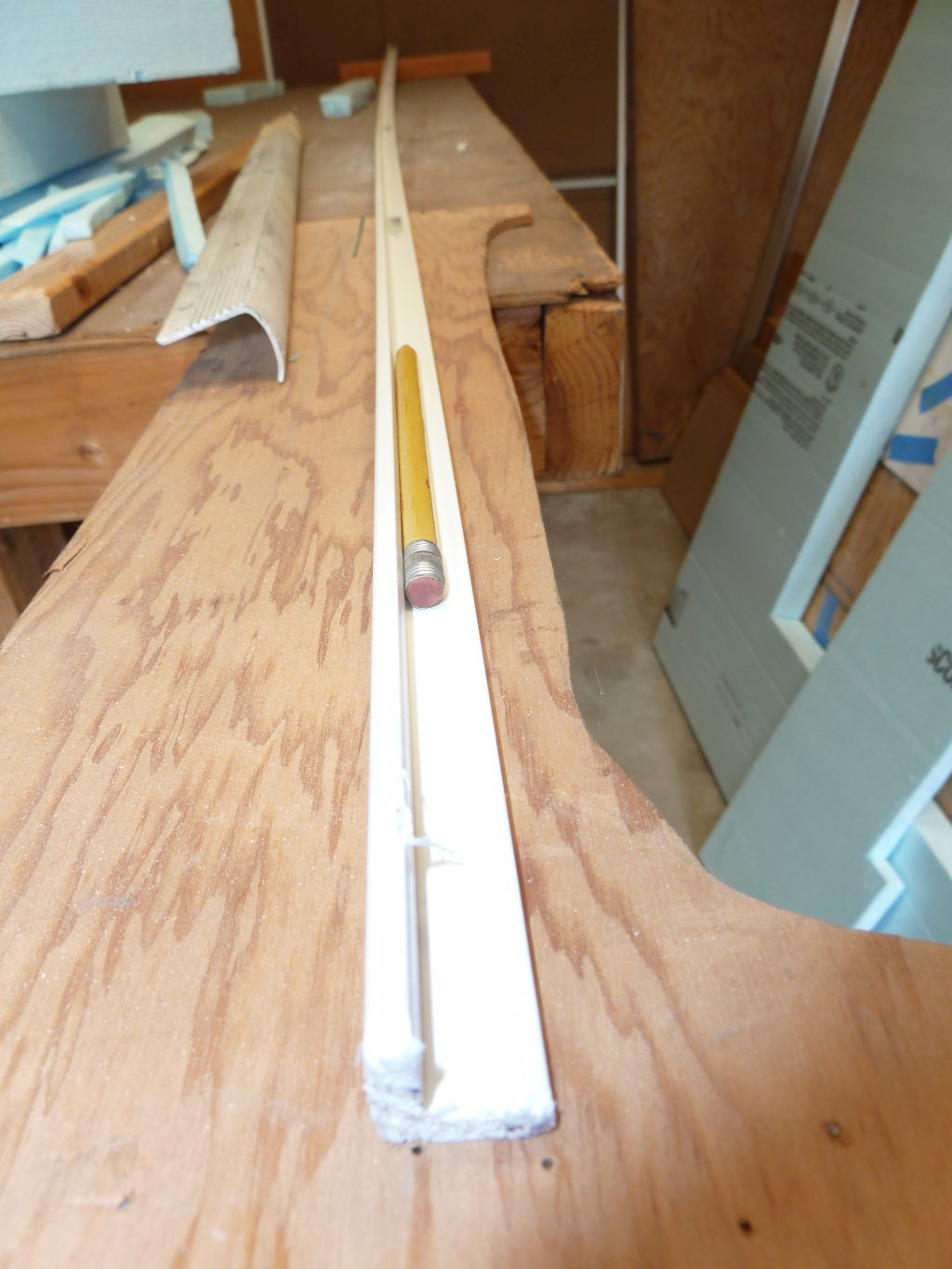

Vinyl molding for drip rail.jpg
Will use nylon-dry-wall screws & caulk to stick this on
Vinyl molding for drip rail.jpg (156.69 KiB) Viewed 22529 times

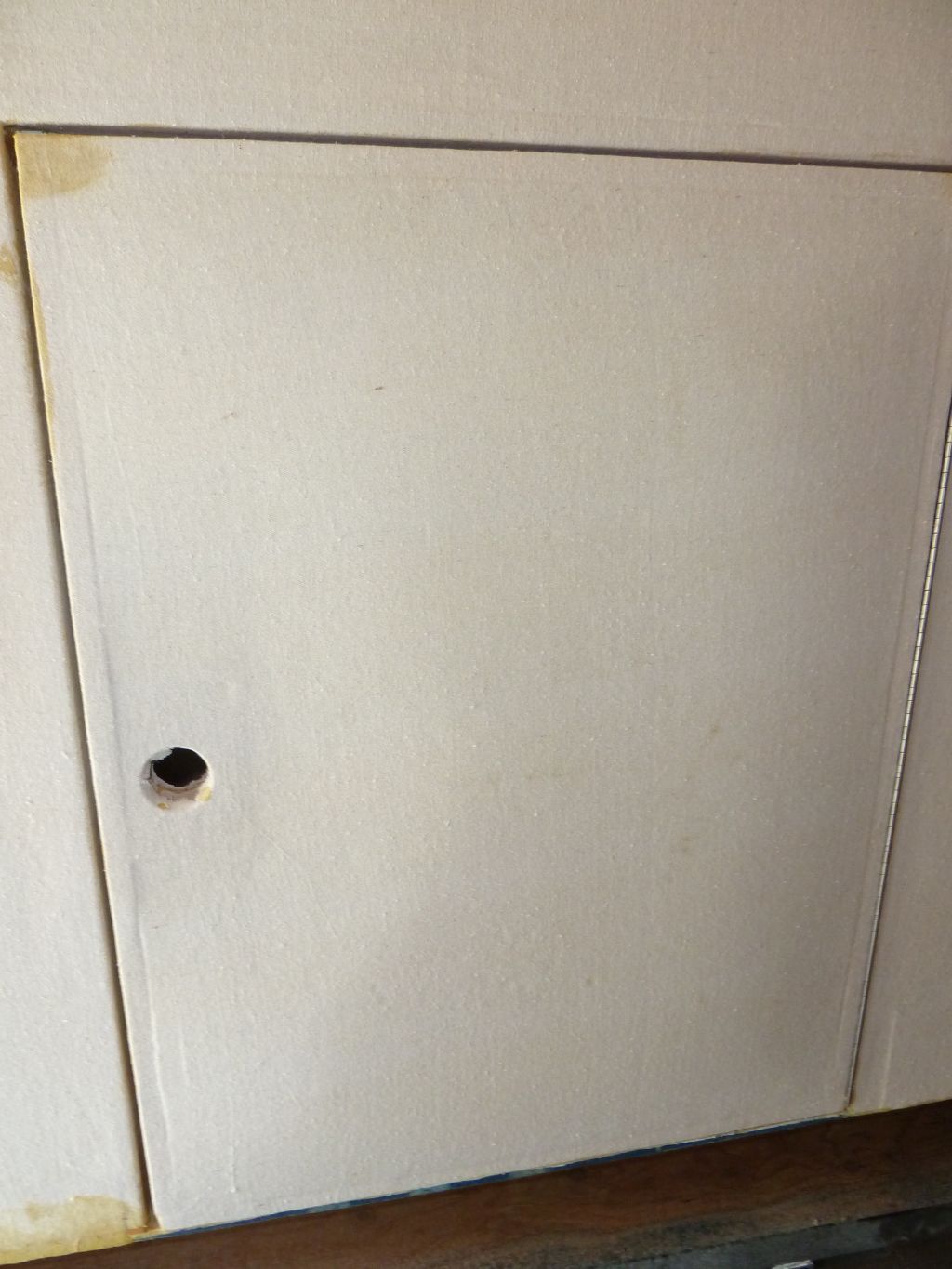

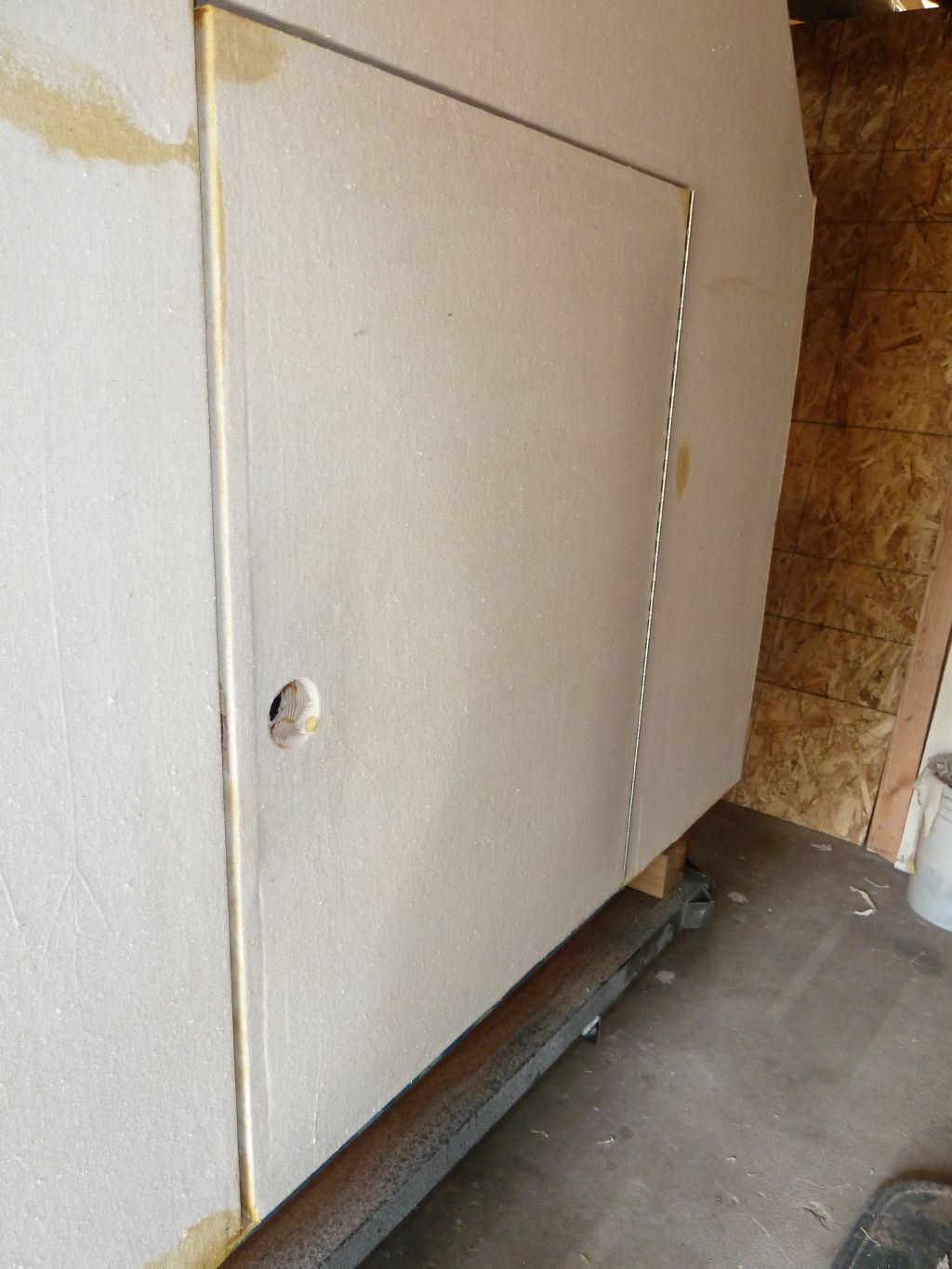

Door in place (not mounted).jpg
Door in place (not mounted).jpg (183.81 KiB) Viewed 22546 times

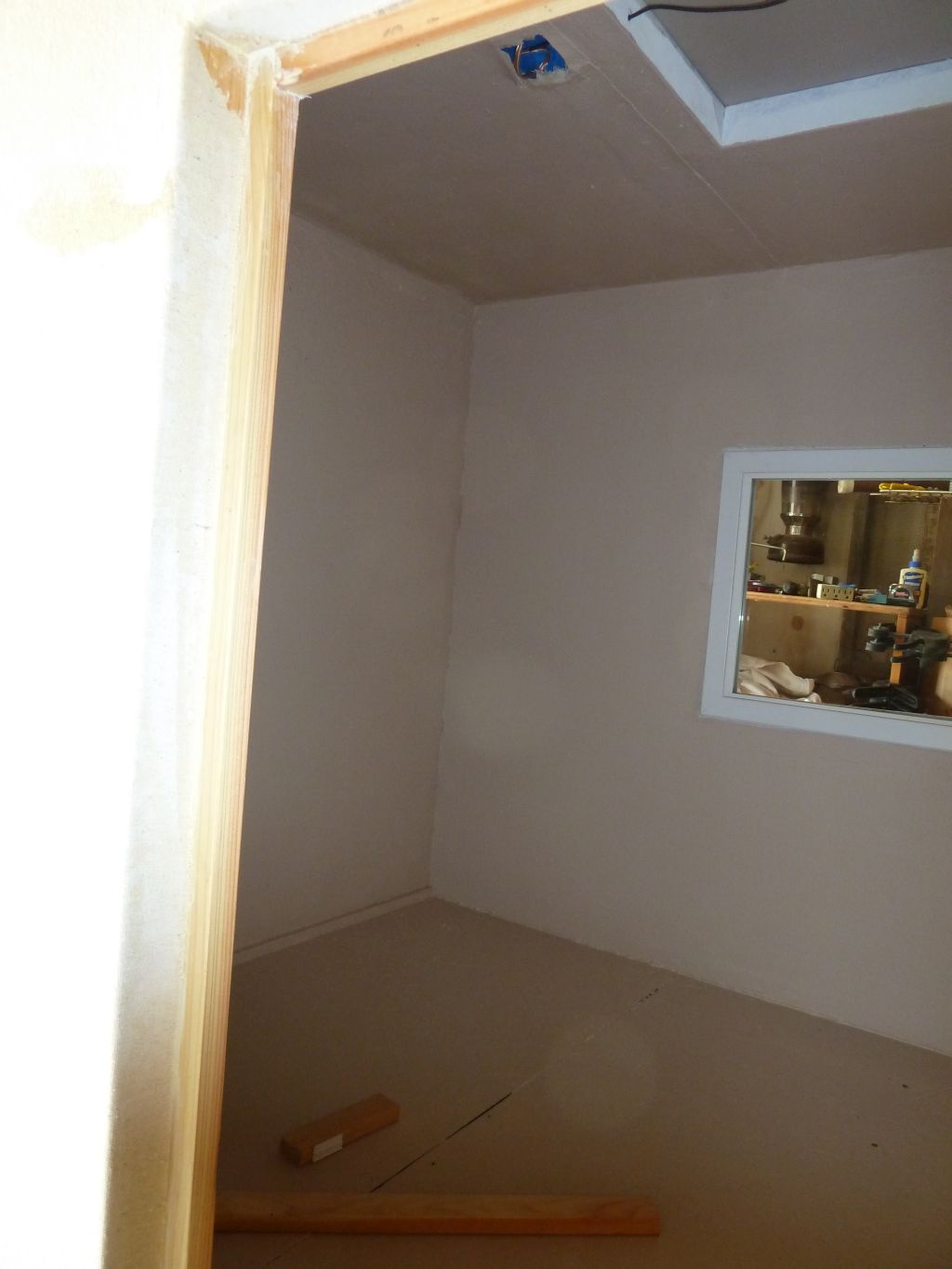

Door in place (check fit & clearance).jpg
Door in place (check fit & clearance).jpg (162.91 KiB) Viewed 22546 times
Last edited by Fred Trout on Thu Jul 16, 2015 6:20 pm, edited 1 time in total.
User avatar
Fred Trout
The 300 Club

Posts: 396
Joined: Fri May 08, 2015 4:30 pm
Location: SW Montana
Top

Re: Bread-loaf build thread

Postby GPW » Thu Jul 16, 2015 3:15 pm

It'a all Good .... Better when it's Painted !!! :thumbsup: 8)
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14915
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top
