Making a hot wire

Canvas covered foamies (Thrifty Alternatives...)

Moderator: eaglesdare

Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 11:20 am

Thought I would post a "how to" on making a hot wire since I needed to make up another jig for a end cut.

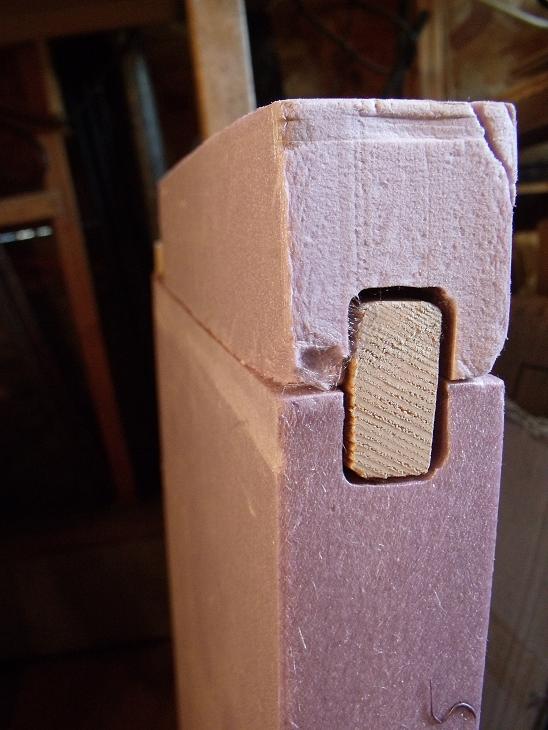

So I am making a end cut to fit a 1"x2" piece of wood into the end of 2" foam. This is for my shelves in the galley as well as some other locations where I may want to add some strength to a joint or span. I am trying to use all the foam I have for the build to cut costs and waste. I am using left over pieces of foam from the bulk head and roof to make my galley shelves. These pieces are too short by themselves so I will need to join them together. I was just going to glue the foam together, but thought that it would be nice to have some extra support for the center of the shelf and for the joint itself.

DSCF1891 small.jpg
Before end cut
DSCF1891 small.jpg (102.31 KiB) Viewed 23900 times


First I need a block of wood. A 2"x4" works good.

DSCF1889 small.jpg

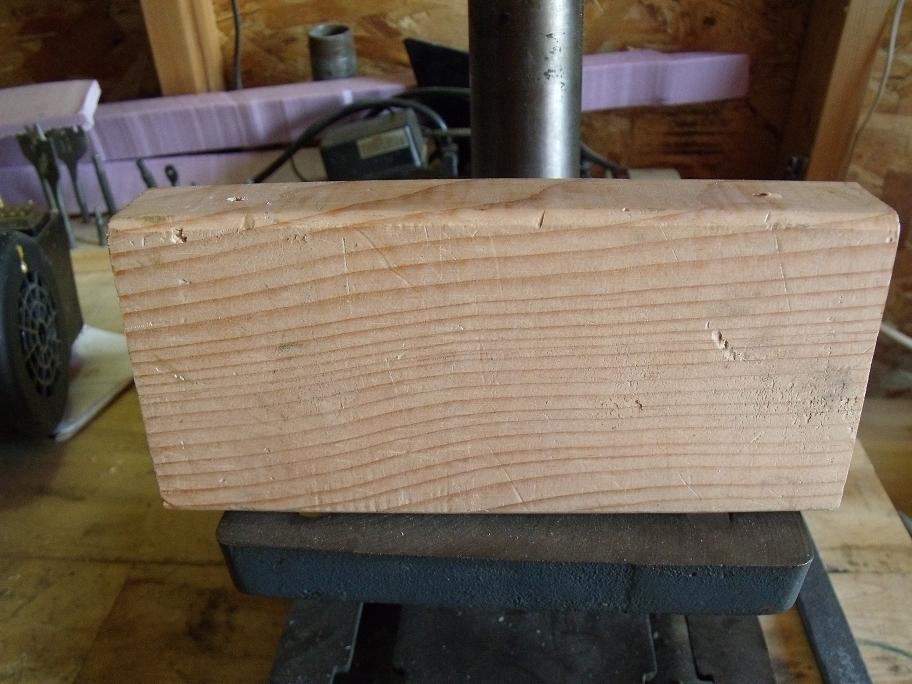

Wood block
DSCF1889 small.jpg (115.5 KiB) Viewed 23900 times


Then I will mark the wood where I want the holes for the wire to come through. I want the cut in the center of the foam so I measured from the edge how far in I need to be and then for the width of the cut.

DSCF1894 small.jpg
Marking wood for wire holes
DSCF1894 small.jpg (74.99 KiB) Viewed 23900 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 11:37 am

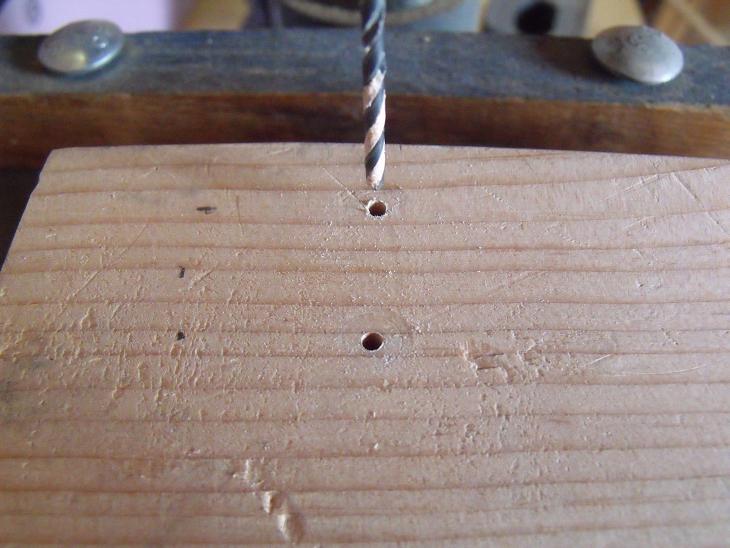

Now I drill holes where I marked the wood for the wire to come through the 2"x4".

DSCF1896 small.jpg
Drilling holes for the wire
DSCF1896 small.jpg (87.24 KiB) Viewed 23894 times


I use pencils to keep the wires where I want them and also to use as a attachment point for power. You can drill holes now for the pencils which would be a bit easier than doing them after you put the wire in like this picture shows.

DSCF1913 small.jpg
Holes for pencils
DSCF1913 small.jpg (89.42 KiB) Viewed 23894 times


So when using a hot wire you want the wire to get hot enough to cut at a good speed, but not so hot that it bends easy. Being that I am using a common car battery charger for my power source I can not change the power to the jig, so I have to change the power with the jig. The easiest way was to find how long a wire I needed to get the wire hot, but not too hot. I found 3 feet of .030 welding wire to be just about right for my particular charger set on 2 amp charge. The shorter the wire the hotter it will get, longer cooler, get it? ;)

DSCF1898 small.jpg

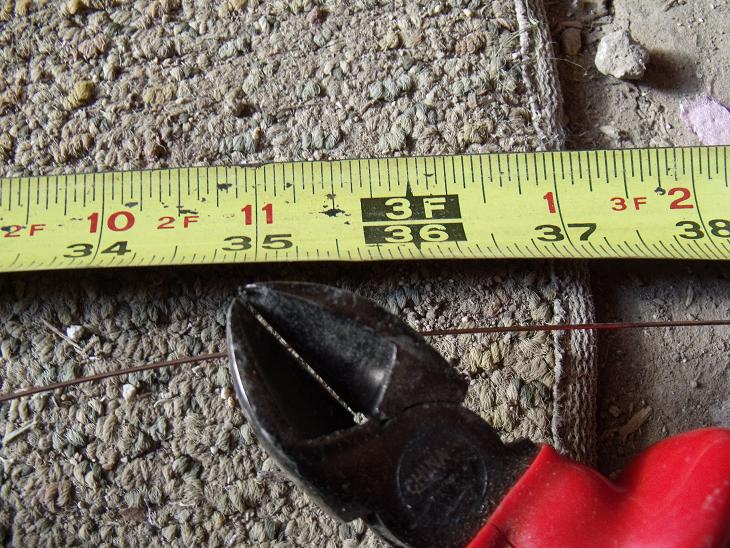

3 feet of wire
DSCF1898 small.jpg (147.1 KiB) Viewed 23894 times
Last edited by ghcoe on Mon Jun 10, 2013 10:18 am, edited 1 time in total.
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 11:46 am

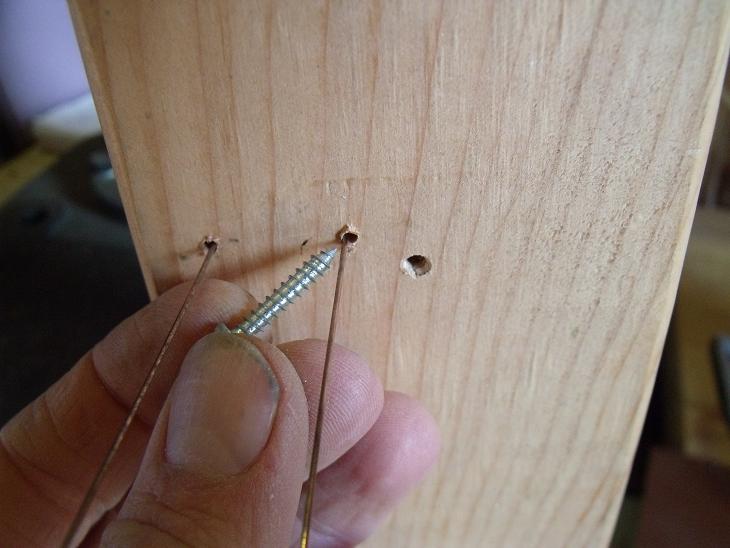

Now I take the wire and find where the middle is and feed the wire through the holes I drilled through the 2"x4". I like to have equal parts of the wire coming through on the other side.

DSCF1900 small.jpg
Wire through the jig
DSCF1900 small.jpg (71.69 KiB) Viewed 23893 times


Now I want to make one side of the wire coming through the 2"x4" solid. I use a screw to screw into the same hole the wire comes through. This will lock the wire so it will not move around.

DSCF1901 small.jpg

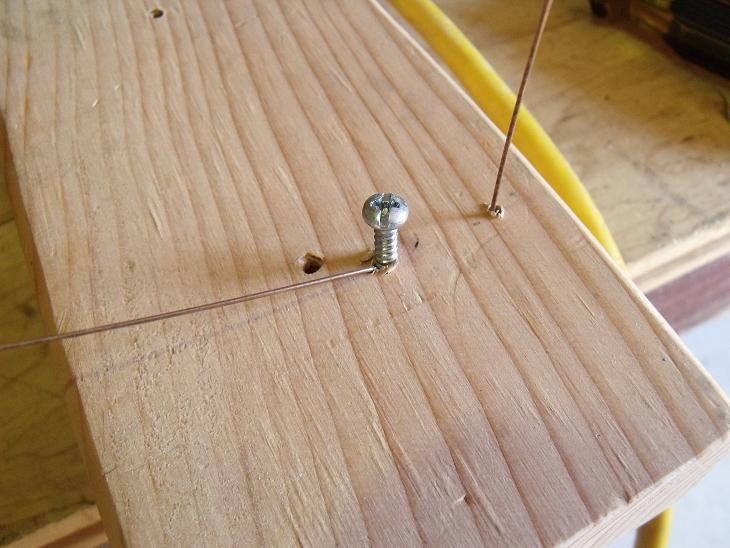

Screw to hold wire in place
DSCF1901 small.jpg (80.1 KiB) Viewed 23893 times


I bend the wire to the side to make it easier to install the screw.

DSCF1903 small.jpg
Screw installed
DSCF1903 small.jpg (92.2 KiB) Viewed 23893 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 12:01 pm

So now that I have the wire solid on one side I can now make the wire shape the way I want. In this case I want half the cut depth of my 1"x2". It is easiest to cut a piece of wood the depth you want the cut, or in some cases the shape of the cut you want.

DSCF1904 small.jpg
3/4" jig
DSCF1904 small.jpg (72.31 KiB) Viewed 23889 times


Now I can pull the loose side of the wire through the block and get the wire close to where I want it. I use a little help from a hammer and needle nose pliers. Just a little tap with the hammer to get the wire around the edge of the block. I am trying to get some of the slack out of the wire so I can get it close to the shape I want.

DSCF1905 small.jpg
A little help
DSCF1905 small.jpg (82.19 KiB) Viewed 23889 times


And a little tweaking with the pliers.

DSCF1910 small.jpg

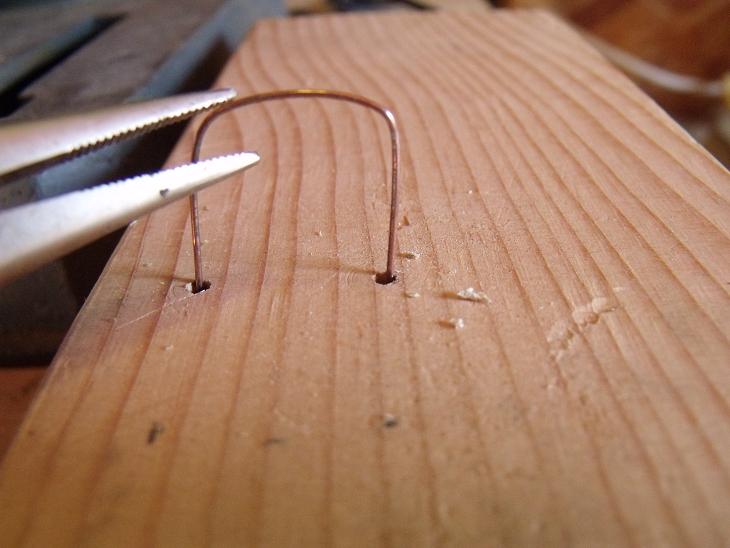

A little help
DSCF1910 small.jpg (76.71 KiB) Viewed 23886 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 12:20 pm

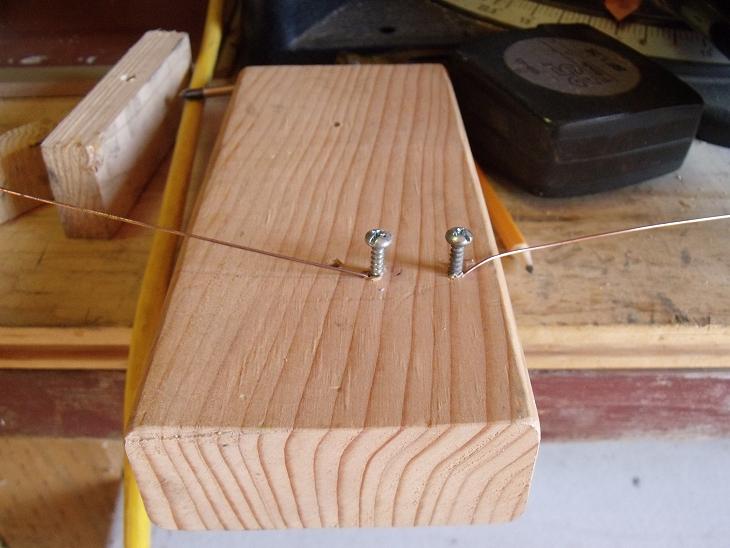

Now I lock the other side of the wire in place with another screw.

DSCF1907 small.jpg
Both sides locked in place
DSCF1907 small.jpg (83.06 KiB) Viewed 23884 times

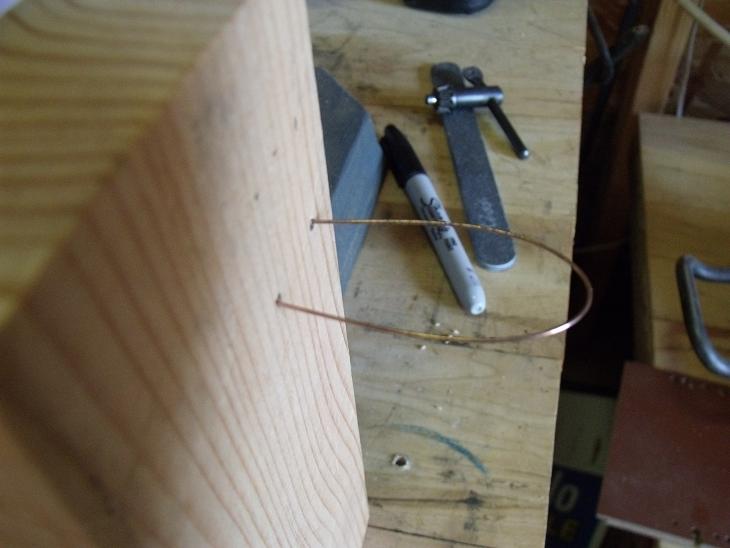

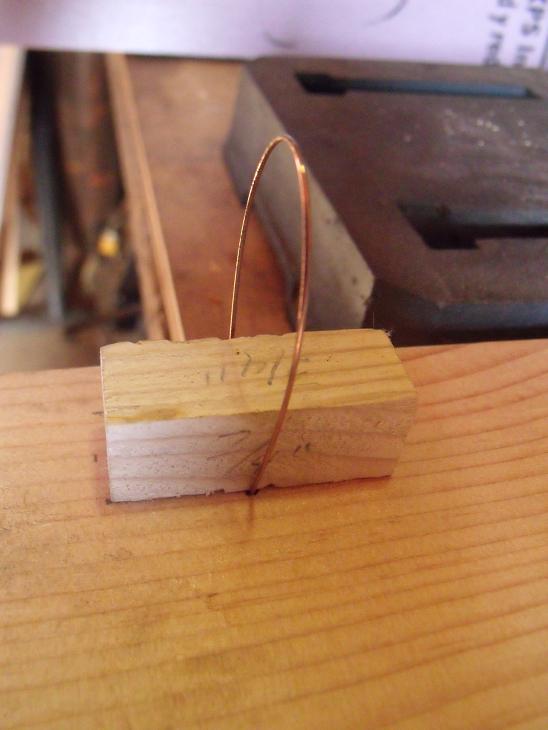

The wire shaped for the cut.

DSCF1911 small.jpg

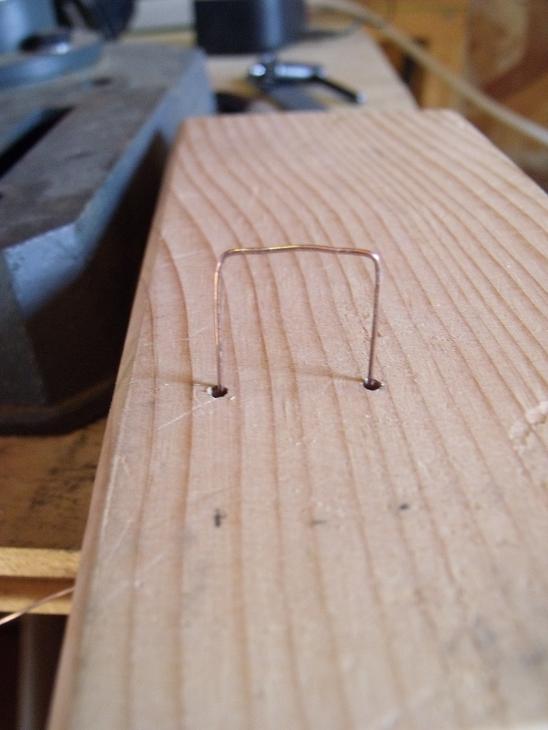

Final wire shape
DSCF1911 small.jpg (67.55 KiB) Viewed 23884 times

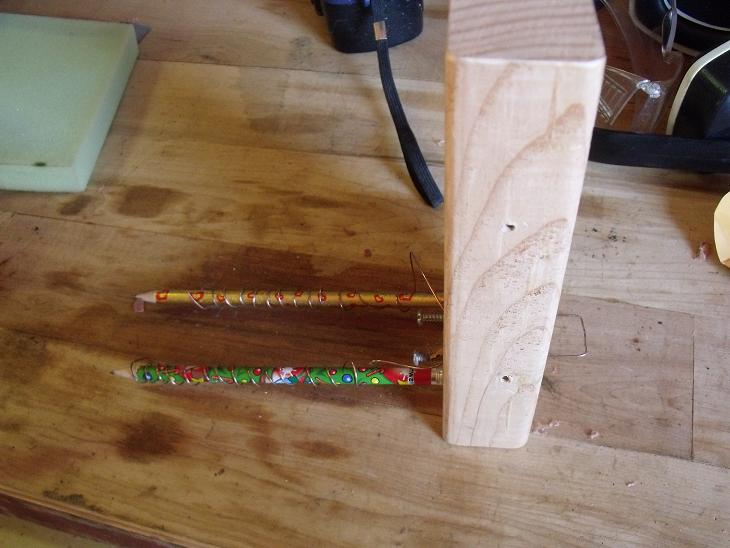

Now I have 3 feet of wire we need to get out of the way. I use two pencils. Make sure they are wood pencils, I found one to be made out of plastic and it melted through. :roll:
Now I wrap the wire around the pencils. I make sure the wires do not touch anywhere in the wrap. If the touch it will make a short and make the wire burn hotter. By making this wire wrap I can also control the wire temp some by placing the power clips higher or lower on the pencils. Lower = hotter because you are shortening the length the current is going through. Higher = cooler by more wire the current is going through. :thumbsup:

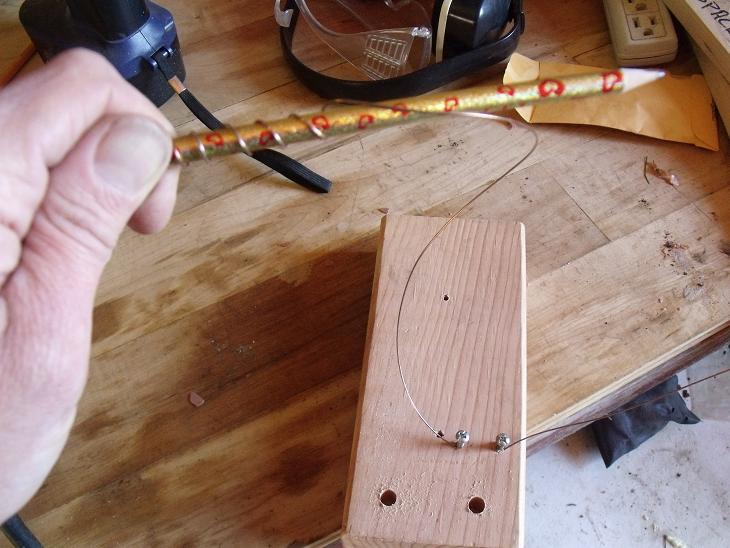

DSCF1914 small.jpg
Two pencils
DSCF1914 small.jpg (93.93 KiB) Viewed 23884 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 12:34 pm

Now that the wires are wraped around the pencils I can install them into the holes I cut earlier.

DSCF1915 small.jpg
Pencils and wires finished
DSCF1915 small.jpg (84.97 KiB) Viewed 23874 times

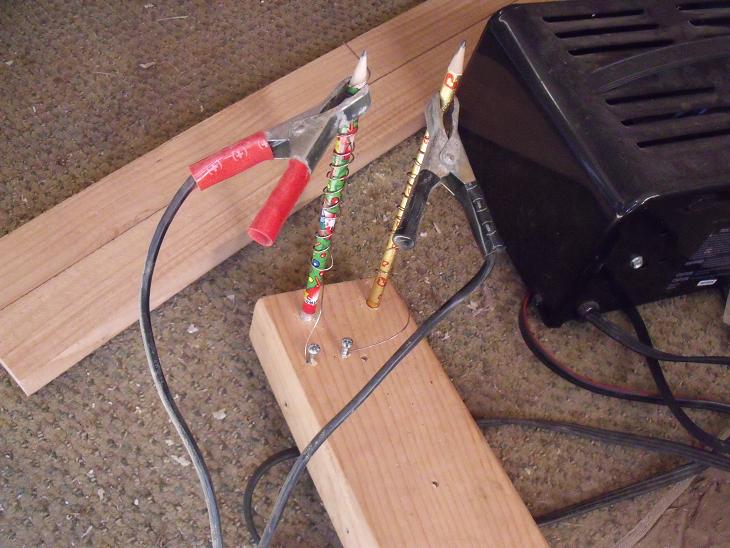

And I am ready to power up. With his jig I can make this cut by using a straight edge. I use gravity for my cuts. You can use hand power, it takes a bit of practice to get it just right. You want to make a steady cut, if you go too fast then you could cause the wire to bend and make a poor cut. If you go too slow then the wire melt excess foam and make a poor cut.

DSCF1916 small.jpg
Powered up
DSCF1916 small.jpg (102.19 KiB) Viewed 23874 times


Gravity seems to work the best for a nice constant speed.

http://www.youtube.com/watch?v=1h8EGYTb ... e=youtu.be
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 12:45 pm

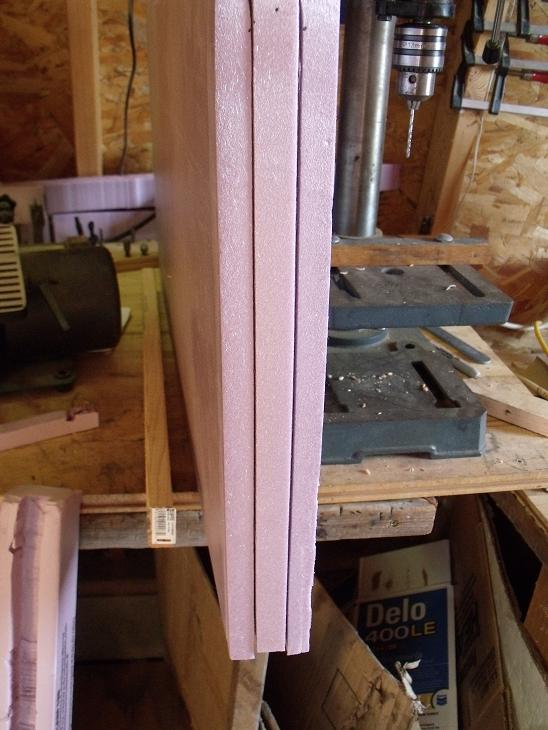

So, in most cases I would use a straight edge for my cuts. In this case I want to make a fence so that I can make a end cut into the foam. To do this I need to add a fence to this jig. I will just be adding a 1/4" peice of wood to the edge of my jig. This will make a built in straight edge to run along the edge of the foam.

DSCF1917 small.jpg

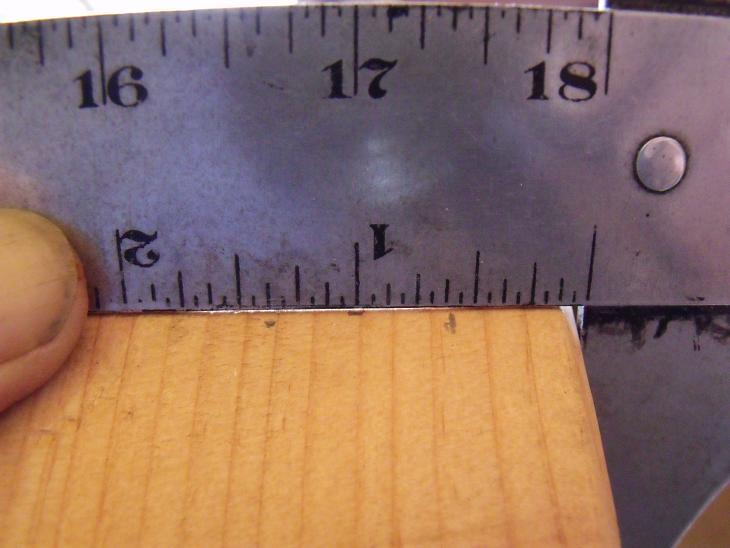

Making a fence
DSCF1917 small.jpg (82.84 KiB) Viewed 23872 times

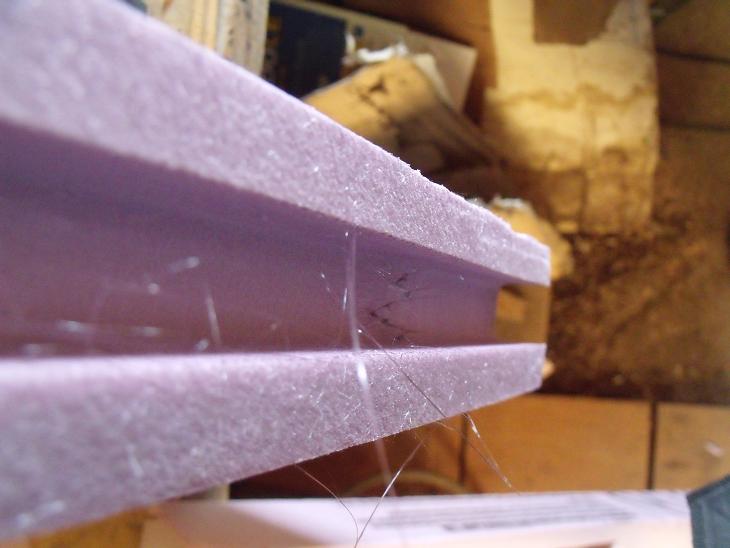

Test cuts are made.

DSCF1918 small.jpg
End cut
DSCF1918 small.jpg (90.24 KiB) Viewed 23872 times


Success.... :thumbsup:

DSCF1919 small.jpg
Smooth cut
DSCF1919 small.jpg (74.27 KiB) Viewed 23872 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 12:50 pm

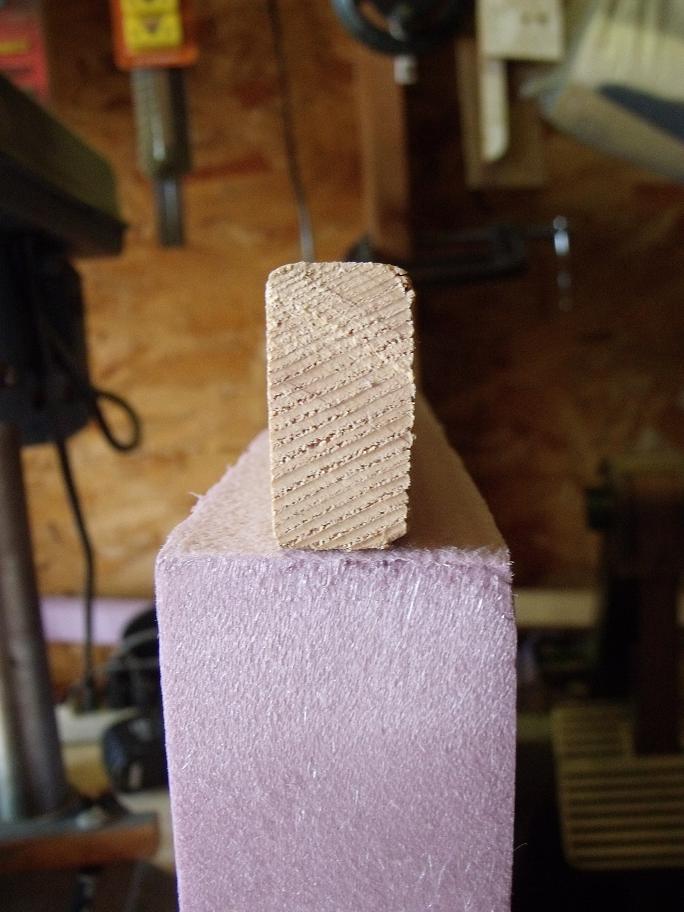

So now I can join my two pieces of foam and have a strong inner support and joint. I will be making another jig similar to this one, but with a deeper cut to install a 1"x2" piece of wood all the way into the end of a 2" piece of foam for extra support along the front of the shelves.

DSCF1920 small.jpg

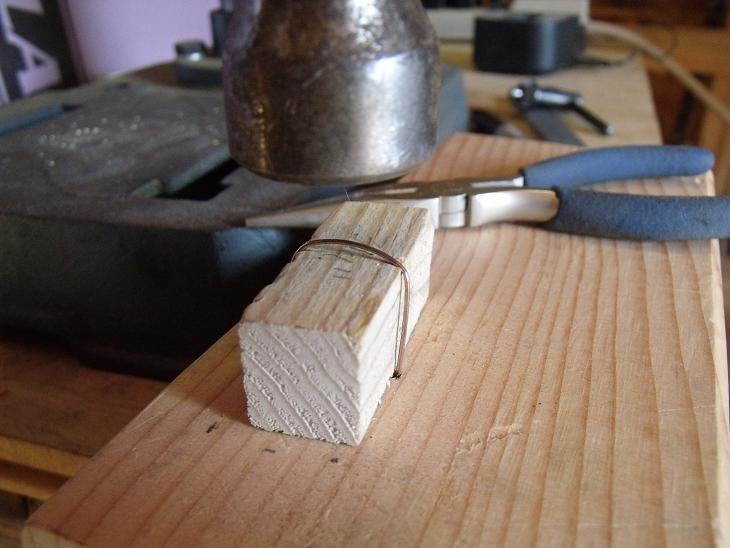

The finished result
DSCF1920 small.jpg (89.76 KiB) Viewed 23871 times



Hope this helps and happy foaming...... :beer:
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby Fishingtomatoseed » Sun Apr 14, 2013 12:56 pm

Thank you for the write up. Always wanted to know.
User avatar
Fishingtomatoseed
Donating Member

Posts: 261
Images: 9
Joined: Sun Aug 21, 2011 4:47 pm
Location: North Texas
Top

Re: Making a hot wire

Postby GPW » Sun Apr 14, 2013 1:15 pm

:thumbsup: 8) :applause:
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14911
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top

Re: Making a hot wire

Postby Wolffarmer » Sun Apr 14, 2013 1:24 pm

Thanks for the write up. By welders wire I figure you mean the wire from what I call a wire feed welder, non flux core. Correct? Also in lew of pencils one could use a dowel, most any small strip of wood, Make it a art piece with a glass rod, colored even. Don't drop it. :lol:

Edit And I would caution that not all 2 amp chargers are 2 amp. Your heat may be different.
"these guys must be afraid of the dark"
User avatar
Wolffarmer
Donating Member

Posts: 4612
Images: 309
Joined: Wed May 02, 2007 1:32 pm
Location: Idaho Rupert
Top

Re: Making a hot wire

Postby cleonard » Sun Apr 14, 2013 2:16 pm

Thanks for the nice write up and pics.

I had a hot wire setup back when I was doing RC planes. I also used a fixed power supply which in my case was just a low voltage transformer. On my setup I put the variable resistor at the power supply. That made the various tools a little simpler to make and a bit more streamlined.

You might have set you charger to 2 amps, but I'm pretty sure it's delivering more like 10 amps. It takes a good amount of current to heat that large of wire.
cleonard
Teardrop Builder

Posts: 38
Joined: Fri Jul 13, 2007 2:03 pm
Location: Santa Clarita, CA
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 2:21 pm

Wolffarmer wrote:Thanks for the write up. By welders wire I figure you mean the wire from what I call a wire feed welder, non flux core. Correct? Also in lew of pencils one could use a dowel, most any small strip of wood, Make it a art piece with a glass rod, colored even. Don't drop it. :lol:

Edit And I would caution that not all 2 amp chargers are 2 amp. Your heat may be different.



Yes, standard mig welding wire non-flux core .30.

I had pencils, so yes, you could use anthing that would work for you to wrap your wire around.

3 feet worked for me. That is why I mentioned that you would want to play some with the length to get the right heat. Shorter = hotter, Longer = colder. Also by wrapping the wire around the pencil you can control heat by placing the charger clamps higher or lower on the wire wrap.
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Making a hot wire

Postby GuitarPhotog » Sun Apr 14, 2013 2:36 pm

Here's a great site on hot wire foam cutters. It offers calculators so you can determine the current required to heat various kinds of wire to the necessary temps, and lots of sources for low-voltage power supplies and nichorme wire.

I suggest using nichrome wire (available on Amazon and many hobby shops) rather than welding wire. It's predictable, stable and doesn't burn up due to oxidation as quickly.

http://hotwirefoamcutterinfo.com/Hot_Wi ... ction.html

I build two cutters when I was insulating the interior of my trailer, one for cutting slabs from the sheet, and one for making channels and kerfs to fit around the existing trailer ribs. One was powered by a "wall wart" on a lamp dimmer, and the other (the shape cutter) used 2 high-current 1.5 VDC batteries, and could be used hand held. (Sorry no pix of either, they were one-project tools.)

<Chas>
:beer:
GuitarPhotog
Silver Donating Member

Posts: 1779
Images: 55
Joined: Tue Feb 08, 2011 12:52 pm
Location: Grants Pass Oregon
Top

Re: Making a hot wire

Postby ghcoe » Sun Apr 14, 2013 10:23 pm

I have found the welding wire to work quite well at the temp I am using it at. I have made quite a few cuts with my straight cutter and I see no metal deterioration at all. I have not played with the nichrome wire so I can not compare the two, but for what I had lying around welding wire works well. Also, I am not sure if the nichrome wire will hold a shape or not. I was on another web site where they were using stainless steel welding wire to make very intricate dado's. They mentioned that the stainless steel held the shape of the dado better than other wire they had used. That is where I got the idea to use the mig wire I had.
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1936
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Next

Return to Foamies
