Hard wall popup

Postby icematrix » Tue Feb 10, 2015 4:58 pm

I've been toying with designs for a hard walled popup with minimalistic architecture for some time. I like the idea of a camper with a view for scenic sites.

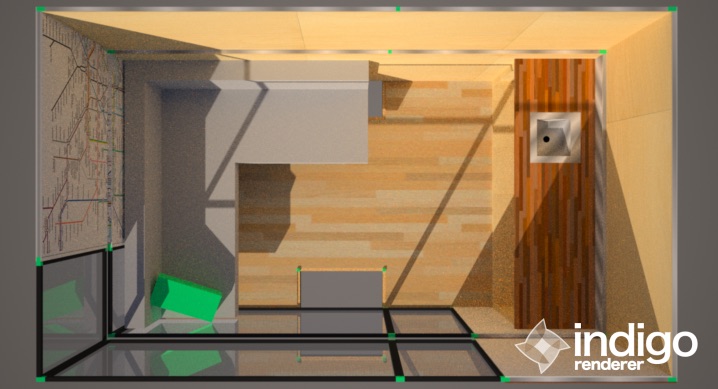

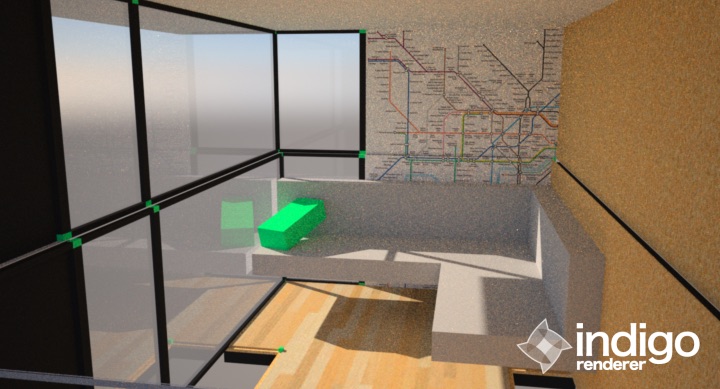

I have the donor trailer (an old tent camper trailer) and I've begun sketching designs on top of the trailer dimensions.






Chad
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm

Re: Hard wall popup

Postby KCStudly » Tue Feb 10, 2015 6:53 pm

Nice renderings. :thumbsup:

Welcome to the forums.

Any thoughts on methods and materials of construction, and specifics on how you will seal the upper and lower halves together? :thinking:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 8884
Images: 8051
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA

Re: Hard wall popup

Postby icematrix » Tue Feb 10, 2015 7:00 pm

Thanks :)

I plan on using aluminum square tube for the framing. The walls will be skinned with aluminum on the outside, then a layer of foam. On the inside the materials vary from hardwood ply to sheet metal. I will probably use VHB tape and construction adhesive wherever visible to avoid lots of fastener holes.

I will use guides at the corners to keep the halves in line, and front and rear linear actuators coordinated by a microcontroller to do the actual task of raising and lowering.

There will probably be some sort of stiff brush material or a rubber gasket in the gap between halves to keep nature out. I need to do some more research on that.

I plan to use this for spring and summer camping only, and keep it garaged in the winter.
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Hard wall popup

Postby KCStudly » Tue Feb 10, 2015 7:08 pm

Cool. Mind sharing a little of your background? Sounds like you are in some sort of technical industry and obviously have design skills.
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 8884
Images: 8051
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: Hard wall popup

Postby icematrix » Tue Feb 10, 2015 7:41 pm

I'm just another nerd. Computer programmer, systems admin, network engineer, web designer, I do a bit of everything.

I like to do woodwork and metal fab for fun. I've built or restored lots of things from furniture to vending machines.

Here is some of my recent stuff in no particular order:

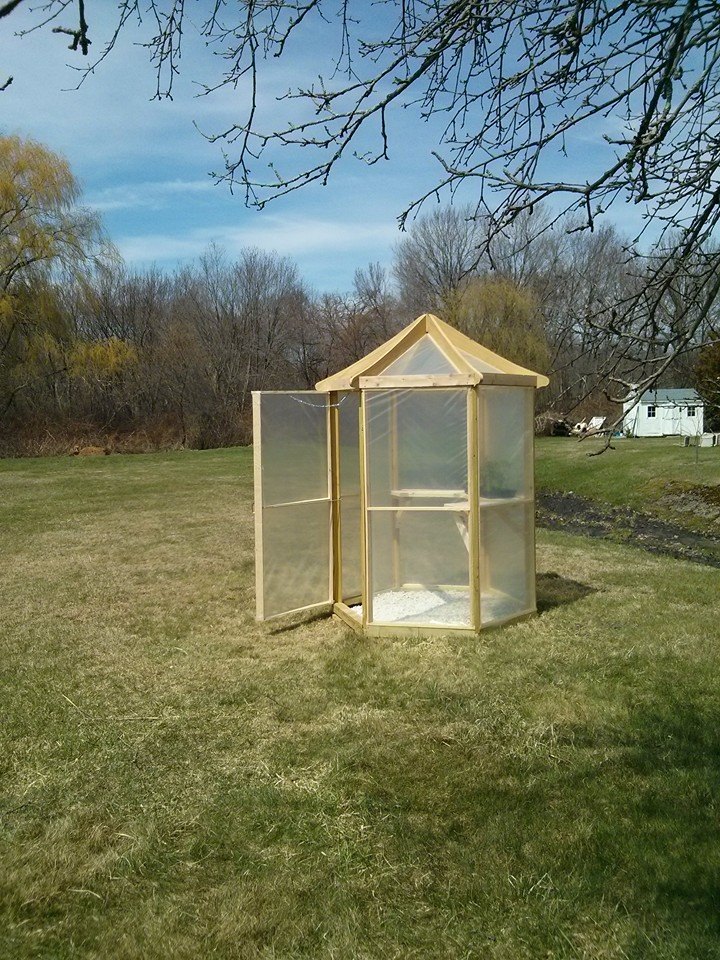

Hexagonal Greenhouse

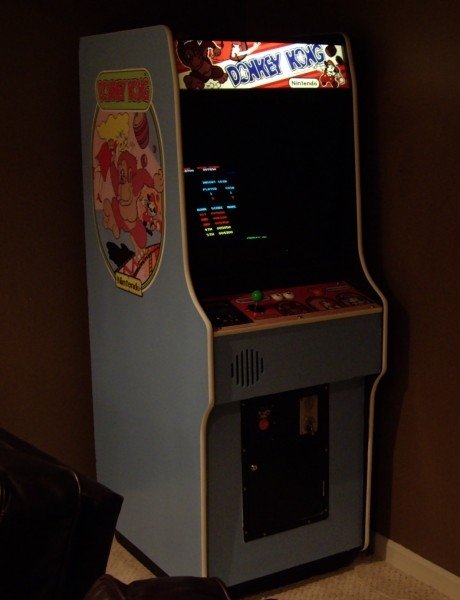

Donkey Kong

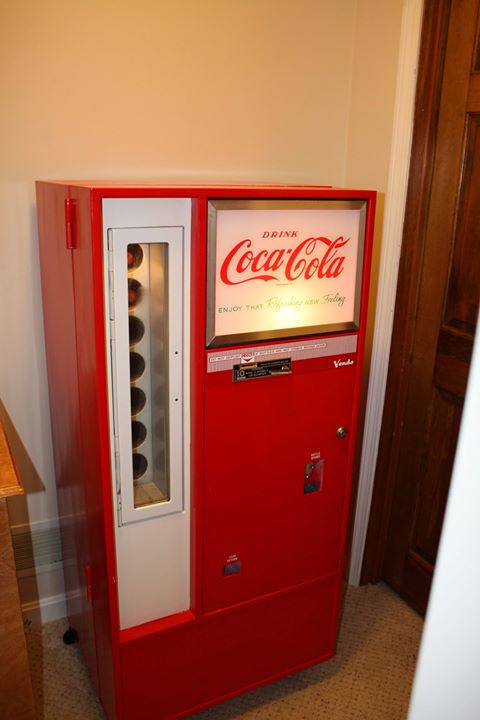

60's Vendo Coke Machine
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Hard wall popup

Postby icematrix » Tue Feb 10, 2015 7:46 pm

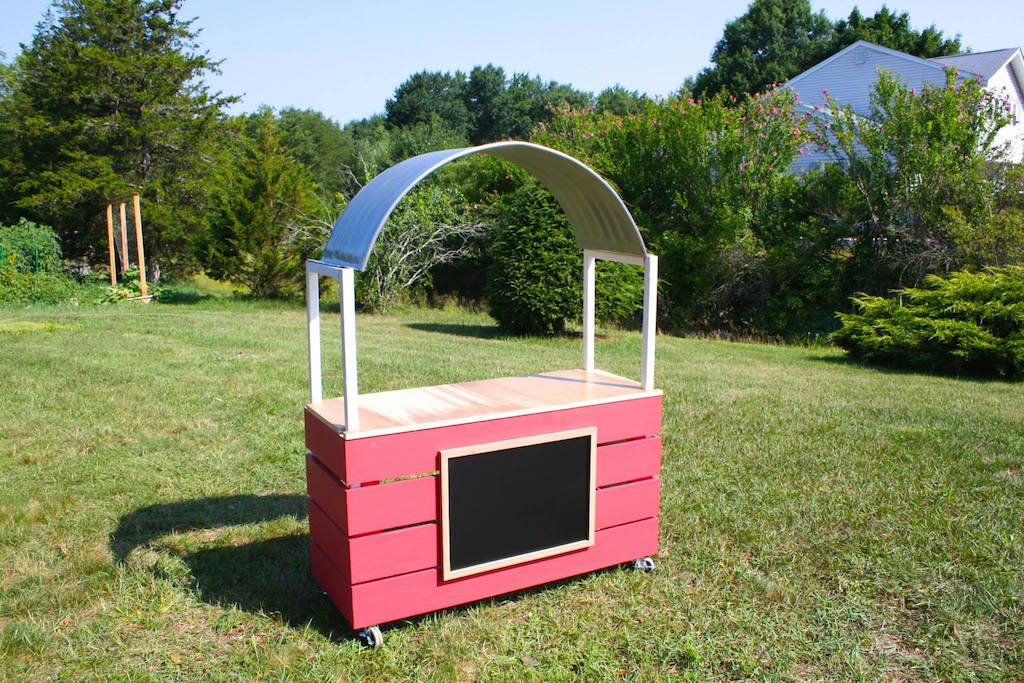

Concessions Stand



Lemonade Stand for my kids

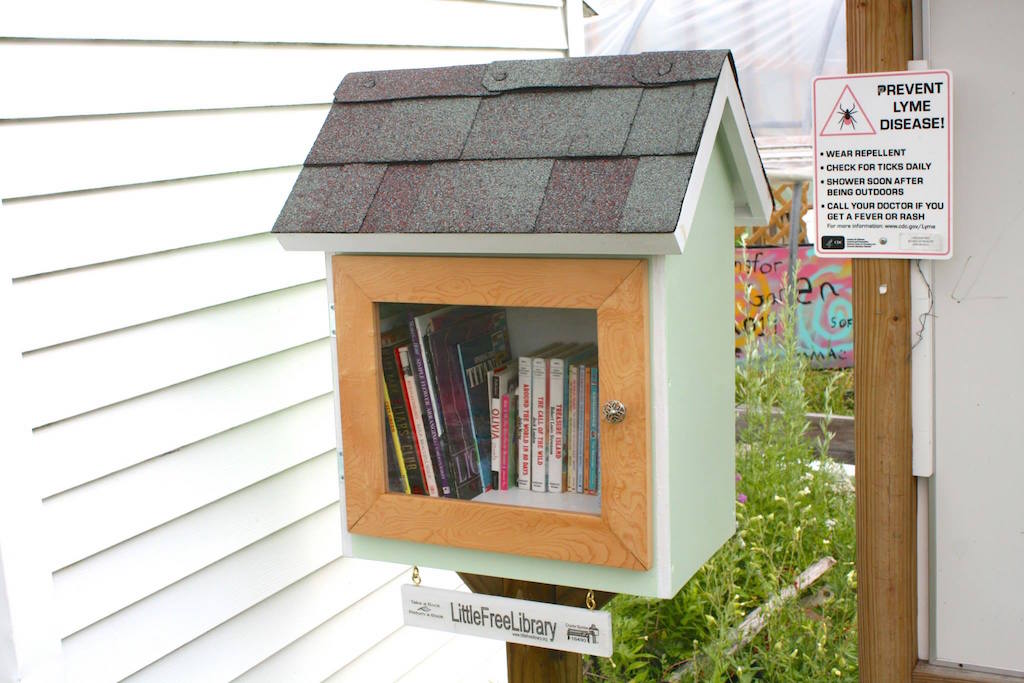

Little Free Library for the community garden
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Hard wall popup

Postby icematrix » Tue Feb 10, 2015 8:03 pm

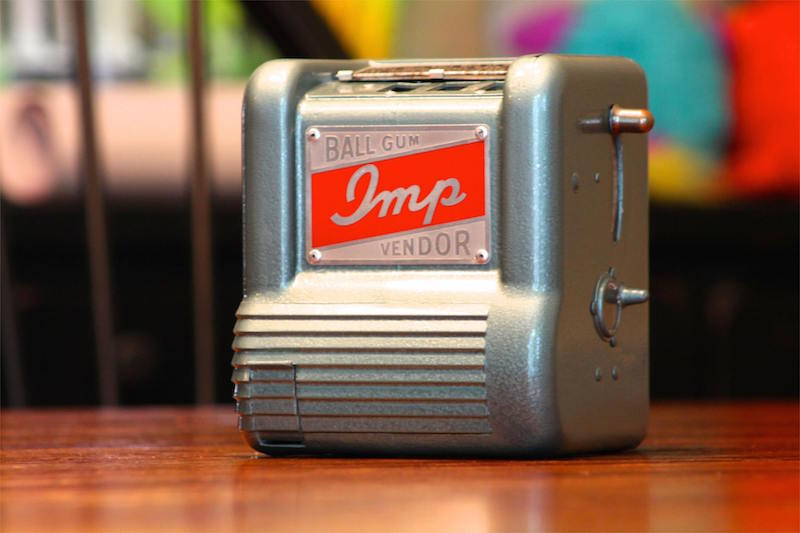

Ok, I know it's off topic, but one more. This is a little Trade Stimulator (slot machine) that I restored for my father's birthday a few years ago.

Before:



And After:
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Hard wall popup

Postby KCStudly » Tue Feb 10, 2015 9:38 pm

Very nice! Thanks for sharing. :thumbsup:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 8884
Images: 8051
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: Hard wall popup

Postby icematrix » Sun Feb 15, 2015 9:33 pm

I originally was going to just have an outdoor shower. But lately I have been toying with the idea of a small wet bath like the T@b and the aliner.

Any opinions on the value of having one of those little baths?
icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Hard wall popup

Postby OP827 » Thu Jun 11, 2015 12:36 am

This is a cool idea, camping with a view in urban modern style... Looks like if you aim for urban style "glamping", the inside bath could be in order, right? I have no experience using those wet bath, never had one like that, sorry, but I like your ideas. :applause:
My foldable foam trailer build: http://www.tnttt.com/viewtopic.php?f=50&t=61344
OP827
Donating Member

Posts: 945
Images: 246
Joined: Fri Apr 25, 2014 7:27 pm
Location: Alberta, Canada
Top

Re: Hard wall popup

Postby DrewsBrews » Fri Aug 07, 2015 2:39 pm

Very neat idea!

Any precautions you would take to prevent it becoming your second greenhouse?
DrewsBrews
Teardrop Master

Posts: 132
Joined: Mon Jul 13, 2015 4:00 pm
Location: SW Ohio
Top

Re: Hard wall popup

Postby Gladtobehere » Fri Aug 07, 2015 4:15 pm

Have a look at the Alto by Safari Condo. I think they are gorgeous but a little to expensive for my blood.

http://www.safaricondo.com/en/caravanes
Gladtobehere
Teardrop Advisor

Posts: 92
Joined: Wed Sep 19, 2012 5:48 pm
Top

Re: Hard wall popup

Postby BigGoofyGuy » Tue Sep 08, 2015 8:32 am

icematrix wrote:I've been toying with designs for a hard walled popup with minimalistic architecture for some time. I like the idea of a camper with a view for scenic sites.

I have the donor trailer (an old tent camper trailer) and I've begun sketching designs on top of the trailer dimensions.






Chad


I think that is way cool. :thumbsup:
BigGoofyGuy
Teardrop Master

Posts: 193
Joined: Sat Sep 05, 2015 5:37 pm
Location: Hampton New Hampshire United States of America
Top

Re: Hard wall popup

Postby fm-usa » Sat Jan 16, 2016 6:50 pm

icematrix wrote:I've been toying with designs for a hard walled popup with minimalistic architecture for some time. I like the idea of a camper with a view for scenic sites.
I have the donor trailer (an old tent camper trailer) and I've begun sketching designs on top of the trailer dimensions.


Chad

CHAD:
When you design these up, do you consider the gross weight?
If you do, give us your thoughts.
We're interested.
Last edited by fm-usa on Sat Sep 10, 2016 7:00 pm, edited 2 times in total.
Is it possible, FULL RV in a 48 Sq.Ft. footprint & stay under 500Lbs wet?
SHE thinks teardrops are "cute" but I prefer a SKOSH more room & at 63+ the
body doesn't react/extract/move/mend/bend/lend or work like it use'ta.
NOW! That unwanted guests moving in, Mr. 'Arther I. Tus' & Ms. DVT (grrr)
User avatar
fm-usa
Teardrop Master

Posts: 123
Images: 4
Joined: Wed Aug 11, 2010 10:51 am
Location: ILLinois_60085 ================= Floyd_&_Debbie_+_Bailey
Top

Re: Hard wall popup

Postby mallymal » Sat Sep 10, 2016 5:08 pm

Coolest thing ever, and probably the most modern design on the forum I've ever seen!

I guess you would need some kind of soft rubber gasket to seal the pop up bit. Im assuming your huge windows are some kind of plastic... I would just worry about scratches on those when elevating the top....
User avatar
mallymal
Teardrop Master

Posts: 296
Images: 18
Joined: Fri Sep 26, 2008 4:20 am
Location: manchester, UK
Top
