Telescoping Trolley

Postby icematrix » Fri Feb 27, 2015 3:44 pm

...Or Tram for those not from America. I posted my boxy minimalistic home design a few weeks back, but was told it would probably lead to terrible gas mileage, so I started thinking about a curvier design that my kids would like.

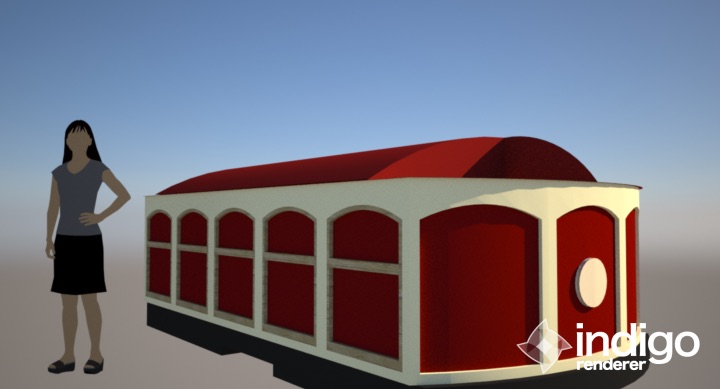

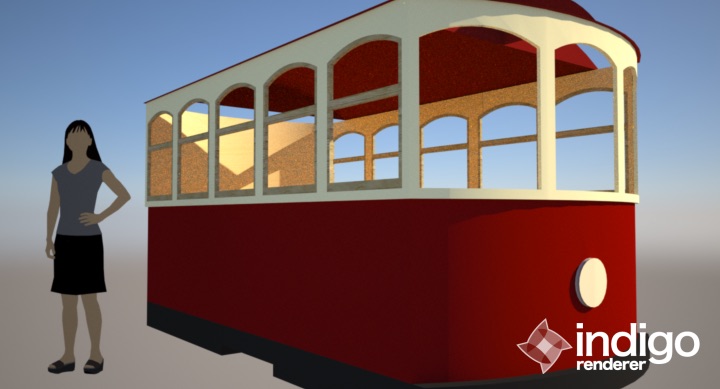

Here's my first few rough sketches, please forgive the lack of door, or the missing part of roof, those compound dome-like shapes are really hard to make even with "follow-me" :?




icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm

Re: Telescoping Trolley

Postby icematrix » Sat Feb 28, 2015 10:26 am

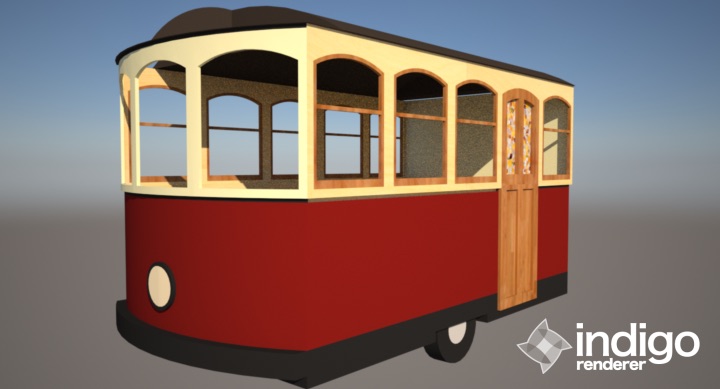

Added a few more touches, changed the roof color, added a door with stained glass, positioned the wheels, etc.

icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm

Re: Telescoping Trolley

Postby icematrix » Sun Mar 01, 2015 8:16 pm

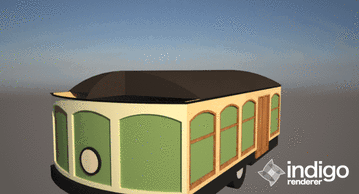

Had to square the door again for folding issues/gaps. I also changed the color to a patina green, and created an animation of the folding process. I think with an awning, this will be a really fun popup.

icematrix
Teardrop Inspector

Posts: 10
Joined: Tue Feb 10, 2015 4:19 pm
Top

Re: Telescoping Trolley

Postby bonnie » Sun Mar 01, 2015 8:48 pm

I really like the concept.
Remember, the turtle won. :)
User avatar
bonnie
Donating Member

Posts: 1341
Images: 107
Joined: Sun Jul 24, 2011 4:14 pm
Location: Belleville IL
Top

Re: Telescoping Trolley

Postby KCStudly » Mon Mar 02, 2015 9:02 am

Neat look.

Any concerns about stones thrown up by the TV taking out your windows? :thinking:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 8784
Images: 8044
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: Telescoping Trolley

Postby GreenViking » Mon Mar 02, 2015 7:08 pm

I have been working on solving this in my own build design. I keep coming back to that for a whole lot of reasons (relate to alignment/weight/windows cracking exposure/waterproofing and WEIGHT) it needs at-least one permanent durable hinged and well sealed side facing direction of travel. Any ideas on potential mechanism used to hoist that up after driving all day without throwing out your back or taking up lots of space and weight?

Concepts are great, and figuring out the details is the work. where there's a will... sustained for a while, there may be a solution... or LOTS of ways on how not to do something (learning!)

I wish you the best in finding a great solution that works well and feels great on the eyes and your senses! :thumbsup:
User avatar
GreenViking
Teardrop Advisor

Posts: 66
Images: 0
Joined: Tue Oct 06, 2009 4:08 pm
Location: AZ/CA
Top

Re: Telescoping Trolley

Postby Sheddie » Tue Mar 03, 2015 11:33 pm

That looks really cool. 8) It is almost a shame to collapse when you are towing it, it would look super cool following you down the road like that 8) What size are you looking at.

KCStudly wrote:Neat look.

Any concerns about stones thrown up by the TV taking out your windows? :thinking:

You could either look at a clip on padded bra, or I remember seeing things like below on youtube.
https://www.youtube.com/watch?v=3KUTvduHsBk
User avatar
Sheddie
1000 Club
1000 Club

Posts: 1406
Images: 1020
Joined: Mon Jul 01, 2013 3:26 pm
Location: Whangarei, New Zealand
Top

Re: Telescoping Trolley

Postby aggie79 » Wed Mar 04, 2015 12:43 pm

The design looks fabulous. The details may prove troublesome though. Whatever method to lift will need to keep the top level or very near level (actually in the same plane as the bottom). If it racks going up it will bind. The door opening is on two different planes so the jamb design will need some attention. If you can work these out you'll have one helluva TTT!
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 4706
Images: 661
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas
Top

Re: Telescoping Trolley

Postby dales133 » Mon Mar 09, 2015 9:11 am

Google Kimberly campers , they obviously look totaly different but expand the same way you propose
User avatar
dales133
4000 Club
4000 Club

Posts: 4532
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

Re: Telescoping Trolley

Postby aggie79 » Mon Mar 09, 2015 11:17 am

One way to lift the roof would be to use an old-fashioned cable and pulley system. This website shows a teardrop with a lifting roof that uses this system: www.purplesagetradingpost.com.
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 4706
Images: 661
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas
Top

Re: Telescoping Trolley

Postby GreenViking » Tue Mar 10, 2015 10:20 am

I would still think that having one edge like the Alto Safari hinged is a better solution with the same result. Again, a few reasons.
The leading edge being hinged creates a pivot close to where the cabinets are attached to the ceiling in the previous mentioned Teardrop. Doing away with that complicated winch system and multiple points of failure that would be a pita to deal with if something failed on the road.
Also gaining better potential moisture penetration protection with the overlap and seals on the Alto type layup.
More food for thought! :thinking:

User avatar
GreenViking
Teardrop Advisor

Posts: 66
Images: 0
Joined: Tue Oct 06, 2009 4:08 pm
Location: AZ/CA
Top

Re: Telescoping Trolley

Postby GreenViking » Tue Mar 10, 2015 10:22 am

OOOppps! My bad, your doing a trolley top and I spoke to soon, solution for a different guy! :oops:
User avatar
GreenViking
Teardrop Advisor

Posts: 66
Images: 0
Joined: Tue Oct 06, 2009 4:08 pm
Location: AZ/CA
Top

Re: Telescoping Trolley

Postby GreenViking » Tue Mar 10, 2015 10:27 am

If your REALLY ambitious! Load up on some inspiration here with the unfolding Castle Truck!
http://www.livingbiginatinyhouse.com/transforming-castle-truck/
User avatar
GreenViking
Teardrop Advisor

Posts: 66
Images: 0
Joined: Tue Oct 06, 2009 4:08 pm
Location: AZ/CA
Top

Re: Telescoping Trolley

Postby tac422 » Tue Mar 10, 2015 1:25 pm

KCStudly wrote:Neat look.

Any concerns about stones thrown up by the TV taking out your windows? :thinking:

One answer would be to have the top drop down inside the bottom.
Instead of over the bottom . :thinking:
User avatar
tac422
500 Club

Posts: 547
Images: 217
Joined: Sun Mar 17, 2013 11:39 am
Top

Re: Telescoping Trolley

Postby Sheddie » Tue Mar 10, 2015 7:28 pm

tac422 wrote:
KCStudly wrote:Neat look.

Any concerns about stones thrown up by the TV taking out your windows? :thinking:

One answer would be to have the top drop down inside the bottom.
Instead of over the bottom . :thinking:

Issue with that would be getting it water tight.
User avatar
Sheddie
1000 Club
1000 Club

Posts: 1406
Images: 1020
Joined: Mon Jul 01, 2013 3:26 pm
Location: Whangarei, New Zealand
Top
