Teardrop Side Awning Solution! (finally-pics)

General Discussion about almost anything Teardrop or camping related

Teardrop Side Awning Solution! (finally-pics)

Postby Oasis Maker » Tue Jul 07, 2009 12:49 am

In the interest of doing what this forum does best - sharing, I share with you the ultimate solution in my quest for a side awning canopy on my 2006 Little Guy 6 wide. I had been desperately seeking alternatives to the EZ Up canopy from day one. First my journey led me to using two "Automobrella's" overlapping. (More on that later). But I finally reached side awning nirvana about a year ago (right before being diagnosed with a brain tumor) and then obviously everything came to a grinding halt, thus explaining the long delay in posting. But in celebrating both life and teardrops, I went on my first outing since having successful brain surgery. I went up in the mountains of Boulevard, California to see friends at a Yoga Retreat over the holiday. It was wonderful to be back teardroppin' and I'm happy to share my current set up with you now. I think this will present many new options for this very common quest among us teardroppers.


This was my criteria for an awning and what I got:


1. First I am a "side teardropper". This is where I hang out as opposed to the rear, so a lengthwise side awning is what I wanted.

2. The awning TRULY had to be an EASY ONE PERSON set up, and this definitely is.

3. Unobstructed Views. I'm not big on anything enclosed and blocking the view of what I drove so long to see in the first place.

4. The awning had to be higher than the teardrop. Unlike Canned Hams, Shastas, etc., we can't sensibly roll an awning out from the top of a low profile teardrop, at least not me. I'm 6' 4" and want to move freely underneath, and my tear is just not high enough nor long enough to equal adequate measurements for a canopy. Also, the awning needs to be high enough to clear an opened hatch.

5. NO GUY LINES... I REPEAT > NO GUY LINES.

6. Awning needs to be ATTACHED to the tear and STABLE. (In fact this is very cool, but I can drive and pull the tear with the awning attached!) Reconfiguring your view or even changing to another nearby campsite has never been easier.

7. This awning set up is adjustable in 3 ways - UP, OUT and OVER. Yep, you can adjust how high you want it, how far out from the tear you want it, and how much overhang you would like on either side.

8. Finally, it all had to quickly break down small and conveniently store in the back of the tear. I store all of my outside bulk items in the hatch of the tear and NOTHING is put inside the cabin on my bed. I ALWAYS WANT MY BED AND INTERIOR SPACE TO BE SLEEP READY.



THE KEYS:

The main key was when the company "Shelter Logic" introduced the "Shade Logic Quick Clamp Canopy" in early 2008 through Cabela's. Upon first seeing it in my catolog, I was so excited I couldn't wait for a mail order so I got in my car and drove across town to buy it at our Cabela's store in Glendale, AZ. Right away I could tell that this would work with the current set up that I had, and with one simple welding customization to the canopy frame, it was done.

So without further ado, here is my set up with explanations to follow:





Other critical keys was that I long ago had four 6.5 inch receiver tubes welded onto each corner of my tear frame (facing side out). I cannot emphasize enough how doing this very simple thing will open up countless options for you. From securely mounting tables and umbrellas, canopies and even bike racks while at a campsite. I originally did this for my set up with overlapping Autombrella's and it's why I have 2 Automobrella telescoping bars.

This was my set up before:


I have a working relationship with Automobrella and they make an awesome product, so if you're interested PM me for a forum discount. They featured this picture on their webpage for a long time and we bounced ideas around with product development for what I was trying to do. I still keep 1 Autombrella in the tear and mount it over the opposite door.

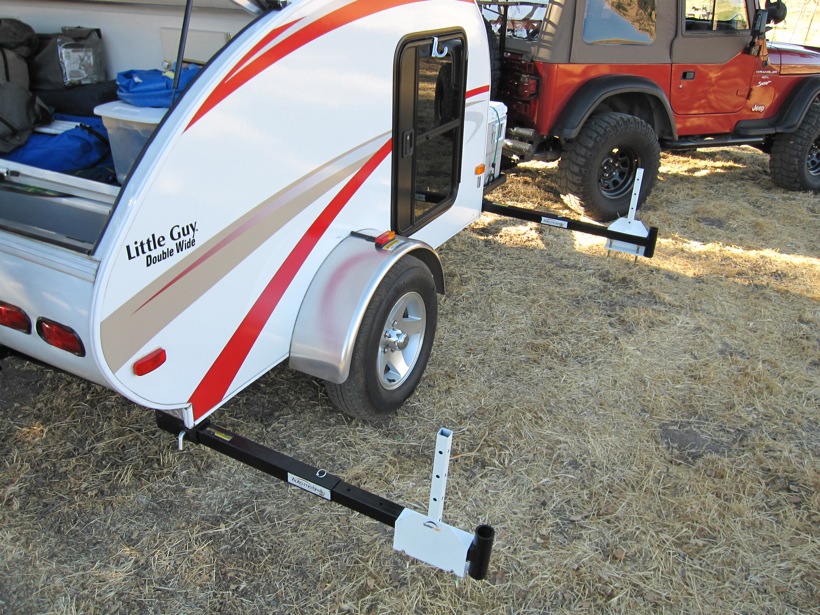

Now below is a better look at the hardware > the receiver tube, the Automobrella extending bars, and the canopy clamps. I'm quite sure people on this forum could make the telescoping bars themselves very easily. You can see the holes in the canopy clamps that allow up and down adjustments. (more below on that)

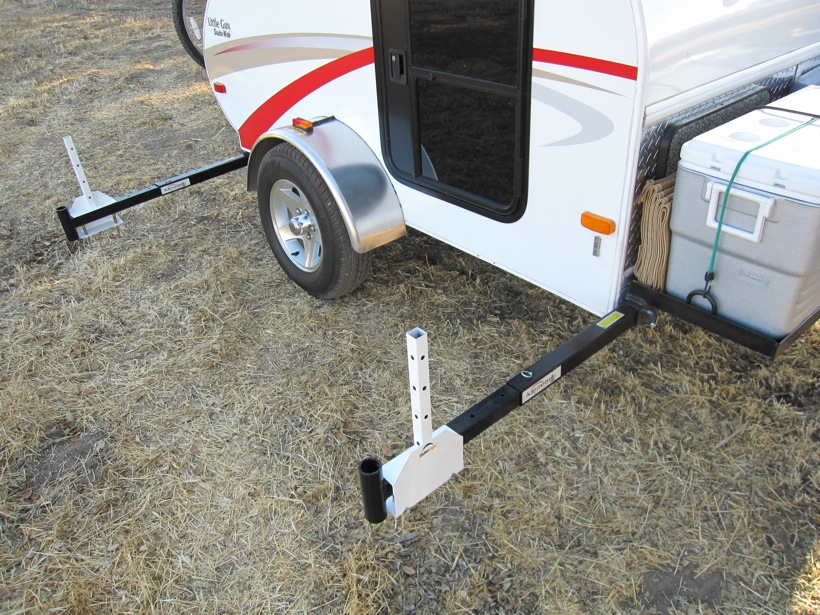

The front receiver tubes are mounted under my platform.

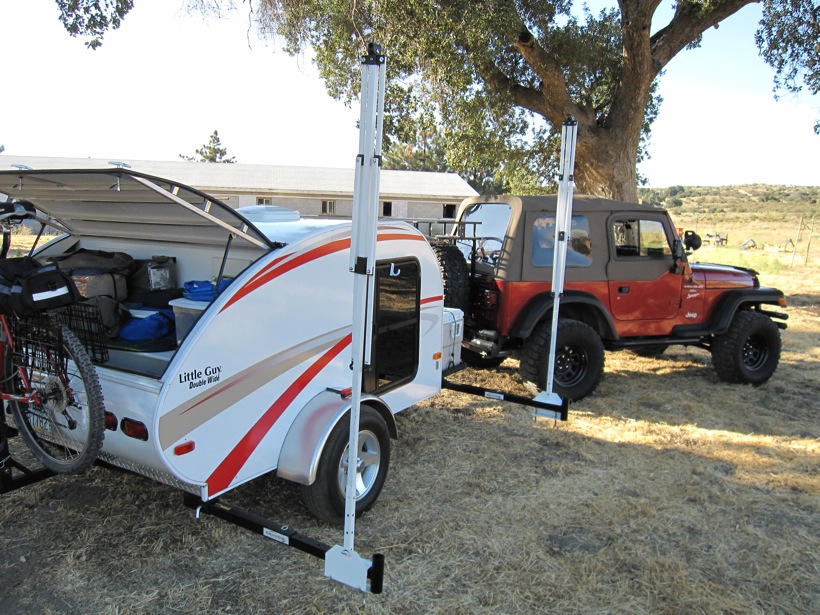

Here are the canopy poles attached and unopened.


Here is the one and only critical customization to the canopy frame that needs to be done. You must extend the length by about 14 inches. The Shade Logic Quick Clamp Canopy was designed to be mounted on picnic tables and bleachers and would be too low without this extension. You also want it to be high enough to clear an open hatch. I opted to add 14 inches to the canopy poles because it was the easiest way to do it. But I should warn you that poles are already the longest part and adding 14 inches will make them just under 6 feet long. For me it didn't matter because I have a 6 wide tear and the longer poles still fit perfectly in my hatch. The other option is to add 14 inches to the canopy clamps with the holes in them. You will have to drill additional holes which will be a little tedious, but the flipside is you will have 14 additional inches of height adjustability, and your longest piece will remain under 5 feet for those who would like to store this in their hatch.

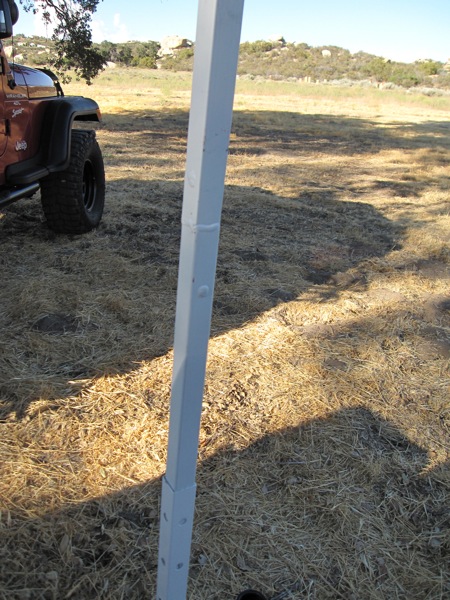

You can see the weld line below where I extended the frame pole by 14 inches and how it fits inside the frame clamp:

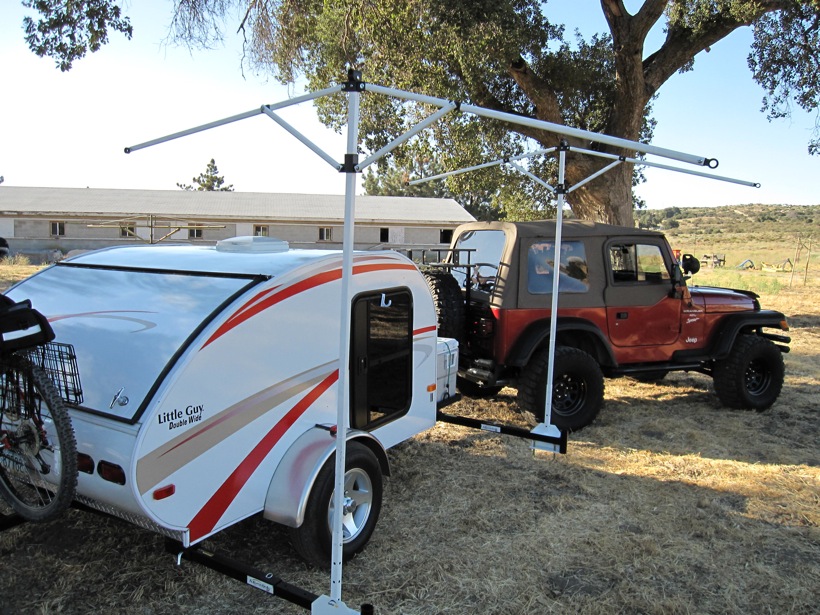

The poles opened. Notice the holes on the end for the cross members to go through.

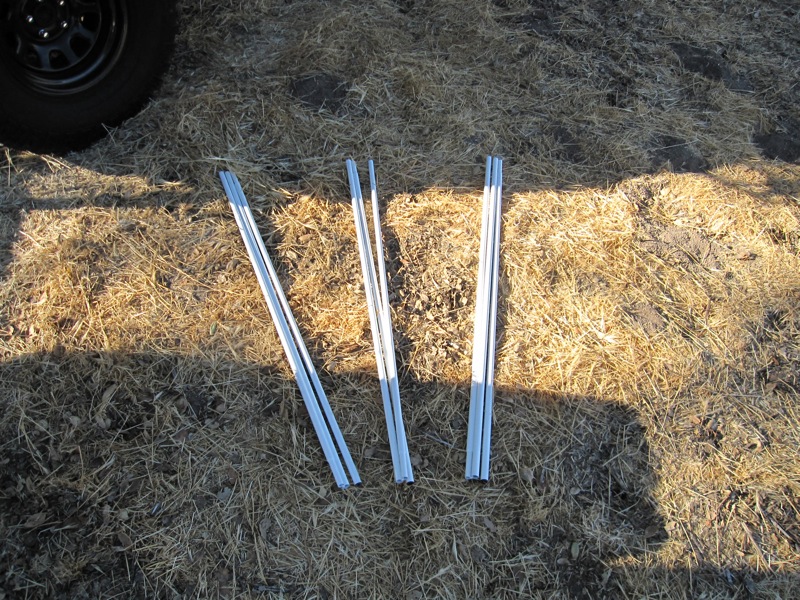

3 sturdy cross member poles:

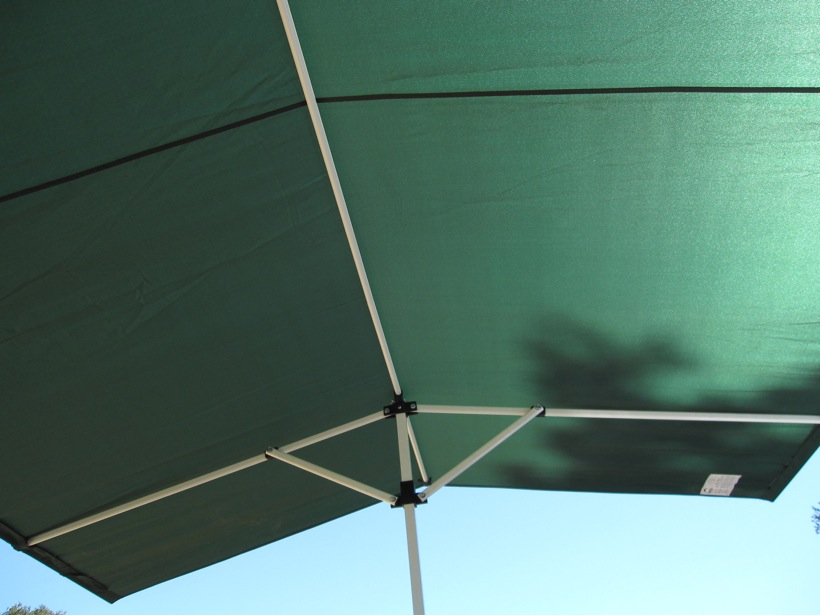

Here's the underside of the awning. You can see the center cross member and how the awning material attaches with velcro over the two cross members on the end. The velcro is very strong and secure.


And walla folks, you got open views along with a whopping 70 square feet of shade and rain protection. This is my campsite view out in Boulevard, CA.


Hope this helps all of those that have inquired about my set up and others investigating alternatives to the traditional EZ UP. I think this could open up a whole new teardrop canopy paradigm with endless options in how people could modify it. You could even change out the awning material to a different color and pattern to suit your taste pretty easily or add a 2nd canopy on the other side.

And as far as how this holds up in the wind? I had the canopy opened for 3 days straight with the Santa Ana winds blowing with no problem. I'm very happy with it. Comments or questions welcome.

Scott G.

Link to purchase Quick Clamp Canopy: (check out the reviews too)

http://www.cabelas.com/prod-1/0056019627790a.shtml
Last edited by Oasis Maker on Thu Jul 16, 2009 6:39 am, edited 1 time in total.
Jeeping, Teardropping, and Cycling!......Where To Next?
Jeep Wave>> :peace: <<Jeep Wave
User avatar
Oasis Maker
1000 Club
1000 Club

Posts: 1906
Images: 187
Joined: Sun Dec 16, 2007 11:25 am
Location: Scottsdale, Arizona

Postby Gaelen » Tue Jul 07, 2009 1:49 am

Scott, that is an awesome modification.
Thanks for sharing...I'll be studying those pics and drawing now!
Very impressive set!
Gaelen
2006-2011: '79 SunLine Sun Spot
now: '05 Finntec homebuilt teardrop
My blogs: Life Out Loud, Kitchen Jam and Dog Trainer's Log.
Syracuse Dog Training and @gaelen2 on Twitter
User avatar
Gaelen
500 Club

Posts: 595
Images: 38
Joined: Sun Oct 08, 2006 3:09 pm
Location: Central NY

Postby Jiminsav » Tue Jul 07, 2009 6:28 am

Well.....ain't that just spiffy.

I give it 3 snaps up.
Jim in Savannah
If you can read this bumper sticker, my camper fell off.
User avatar
Jiminsav
3000 Club
3000 Club

Posts: 3044
Images: 30
Joined: Sat Apr 17, 2004 8:49 pm
Location: Georgia, Savannah
Top

Postby Miriam C. » Tue Jul 07, 2009 6:44 am

Gaelen wrote:Scott, that is an awesome modification.
Thanks for sharing...I'll be studying those pics and drawing now!
Very impressive set!


+1

:thumbsup: :thumbsup: :thumbsup:
“Forgiveness means giving up all hope for a better past.â€
User avatar
Miriam C.
our Aunti M

Posts: 19673
Images: 149
Joined: Wed Feb 15, 2006 3:14 pm
Location: Southwest MO
Top

Postby Steve_Cox » Tue Jul 07, 2009 7:20 am

Scott,

Your quest for shelter and the subsequent documentation was great! Thanks for sharing :thumbsup:
Steve
User avatar
Steve_Cox
4000 Club
4000 Club

Posts: 4903
Images: 196
Joined: Sun Apr 03, 2005 8:46 am
Location: Albuquerque New Mexico
Top

Postby mallymal » Tue Jul 07, 2009 7:31 am

That is just so damn clever!!!!

I'll definitely be stealing that idea, as the tent trailer chassis I'm using has sockets in the chassis already for locating prop supports for a heavy duty roofrack, and would very easily adapt to this.... :thumbsup:
User avatar
mallymal
Teardrop Master

Posts: 289
Images: 18
Joined: Fri Sep 26, 2008 4:20 am
Location: manchester, UK
Top

Postby hiker chick » Tue Jul 07, 2009 8:07 am

That is brilliant and an excellent presentation, thanks very much.

I'd recently begun thinking about that canopy for the space between my Element and the teardrop, which is where I tend to live at camp.

Hmmm.... happen to have my Visa by my side....



:thumbsup: :applause: [/img]
Hot Stuff Today, Dog Stuff Tomorrow

www.thegidg.com
User avatar
hiker chick
1000 Club
1000 Club

Posts: 1501
Images: 621
Joined: Sat Aug 18, 2007 6:26 pm
Location: Washington, D.C.
Top

Postby FireLion » Tue Jul 07, 2009 8:49 am

When I first saw that picnic table canopy I started trying to figure out how to adapt it to use with my tear. Excellent mod! :thumbsup: :thumbsup:
'How can ya get away from it all if ya take it all with ya?'
2004 Ford Escape Ltd.
2012 Coleman tent-no wheels, no A/C, no hitch
User avatar
FireLion
500 Club

Posts: 697
Images: 104
Joined: Sun Oct 07, 2007 10:22 am
Location: Rosedale, Kansas
Top

Great idea

Postby KA » Tue Jul 07, 2009 9:05 am

Thanks for the wonderful idea! That looks like a great set-up.

Kris
KA
Donating Member

Posts: 479
Images: 9
Joined: Sat Aug 27, 2005 1:04 am
Location: Olympia, Washington
Top

Postby kirkman » Tue Jul 07, 2009 11:40 am

Brilliant simply Brilliant! :applause: :thumbsup: :worship:
"If you think you are too small to make a difference, try sleeping with a mosquito." -- Dalai Lama XIV
User avatar
kirkman
1000 Club
1000 Club

Posts: 1269
Images: 55
Joined: Sat Mar 19, 2005 11:42 am
Location: Elmira, NY
Top

Postby okiecamper » Tue Jul 07, 2009 1:58 pm

scott, this is great!!!!!

ok, one question....... 6 1/2"b reciever hitches that you weld to the frame


where did u get them? and did u weld them yourself?


is it just a square reciever tube??? not actually a hitch?

sorry, im just not very mechanical.


thanks.


phil


by the way, you solved my storage problem too.


thanks again.
there are many storms in life that come our way
the trick is learning to "dance in the rain."




May the apple of your eye see only good
May God make smooth the path before you.
okiecamper
The 300 Club

Posts: 439
Images: 13
Joined: Sun May 14, 2006 3:56 pm
Top

Postby okiecamper » Tue Jul 07, 2009 2:16 pm

oh!! I see!!

the reciever hitch, and extender bars acme with the unbrellq.

so you welded the reciever onto the frame then the extender bars attach to that, for your unbrella, then you used the same reciever and extender bars
for use with the canopy extension poles and clamps.


am i correct??


this is fantastic!!!!!


thanks


phil
there are many storms in life that come our way
the trick is learning to "dance in the rain."




May the apple of your eye see only good
May God make smooth the path before you.
okiecamper
The 300 Club

Posts: 439
Images: 13
Joined: Sun May 14, 2006 3:56 pm
Top

Postby DezPrado » Tue Jul 07, 2009 2:23 pm

Without a doubt, that is one very talented solution. Well done & thanks for sharing in such detail. I love the execution of the project. :applause:
DezPrado
Teardrop Master

Posts: 128
Images: 8
Joined: Thu Sep 20, 2007 2:46 am
Location: Blenheim New Zealand
Top

Postby okiecamper » Tue Jul 07, 2009 2:29 pm

also, you said u had 4 6.5" recievers welded to each corner of your frame.

can you get the recievers separate as extra parts , i assume

because you have the 2 umbrellas, and 4 recievers.


sorry for so many questions, but i am really intreagued about both the
umbrella and canopy.


thanks again


Phil
there are many storms in life that come our way
the trick is learning to "dance in the rain."




May the apple of your eye see only good
May God make smooth the path before you.
okiecamper
The 300 Club

Posts: 439
Images: 13
Joined: Sun May 14, 2006 3:56 pm
Top

Postby planovet » Tue Jul 07, 2009 2:34 pm

Amazing! :thumbsup: :applause:
ImageMark (& Cindi)
Visit our website: Little Swiss Teardrop

I was wondering why the water balloon was getting bigger... and then it hit me.

User avatar
planovet
The Cat Man

Posts: 5580
Images: 3
Joined: Tue Nov 27, 2007 4:48 pm
Location: Plano, Texas
Top
